24,000 Litres LPG Tanker, Truck Mounted LPG Tanker, LPG Dispensing Truck, LPG Delivery Truck from China | SPV
Home > Tank Truck > LPG Tanker Truck
LPG Tanker Sinotruk
24,000 Litres LPG Dispensing Truck
LPG Tanker Sinotruk
Function:

LPG tanker (also called truck mounted LPG tanker, LPG dispensing truck, LPG tanker truck, LPG tank truck, LPG delivery truck, LPG truck mounted transport tank, LPG truck tank, LPG road tanker truck) is used to transport liquefied petroleum gas, such as propane, liquid ammonia, dimethyl ether (DME), isobutene, etc.

LPG tanker also can be used as a mobile gas station after equipped with gas dispenser, LPG gas pump.

The LPG tanker material uses a specialized steel for high pressure tanker, which is anti-corrosive and keeps a good stability at low or high temperature.

LPG tanker trucks are basically equipped with safety valve, emergency shut-off valve, thermometer, pressure gauge for the safety use.

Features:
---- Sinotruk chassis, perfect performance
---- Siontruk engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Nice shape, rational structure
---- Strong, durable, perfect performance
---- Prolonged service life
Specification:



LPG Tanker Sinotruk (24,000 Litres )
General Vehicle Brand SPV
Chassis Brand Sinotruk
Overall Dimension 10500 * 2500 * 3500 mm
GVW / Kerb Weight 25,000 kg / 14,500 kg
Cab Cab Capacity 3 persons allowed
Air Conditioner W/ Air conditioner
Engine Fuel Type Diesel
Engine Brand Sinotruk engine
Power 336 Hp (247 KW)
Displacement 9726 ml
Emission Standard Euro III
Chassis Drive Type 6X, left hand or right hand drive
Transmission 10-speed forward, 2-reverse
No. of axle 3
Tyre Specification 10.00-20
Tyre Number 10 tyres and 1 spare tyre
Max Speed 80 km/h
Paint Metallic paint
Superstructure Tank Capacity 24,000 Litres
Tank Material Specialized steel for high pressure gas tank
Tank Thickness 12 mm
All other standard accessories: inlet/outlet, safety valve, emergency shut-off valve, thermometer, pressure gauge, fire extinguisher, anti-static grounding tape…
Optional ** Separate inlet and outlet.
** Pump, gas dispenser….

Front view of LPG Tanker Sinotruk 6x4
Photo 1: Front view of LPG Tanker Sinotruk 6x4

Left side view of LPG Tanker Sinotruk 6x4
Photo 2: Left side view of LPG Tanker Sinotruk 6x4


Left back view of LPG Tanker Sinotruk 6x4
Photo 3: Left back view of LPG Tanker Sinotruk 6x4

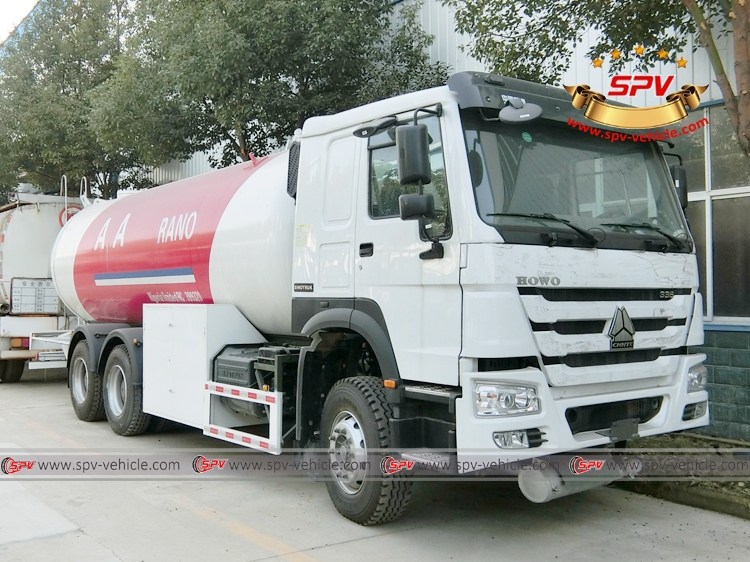

Right front view of LPG Tanker Sinotruk 6x4
Photo 4: Right front view of LPG Tanker Sinotruk 6x4

LPG Tanker Sinotruk 6x4-Dispenser
Photo 5: Detailed Picture of LPG Dispenser Equipped, with Ticket Printer.

Similar Key Words: truck mounted LPG tanker, LPG tanker truck, LPG tank truck, LPG delivery truck, LPG truck mounted transport tank, LPG truck tank, LPG road tanker truck
