LPG Dispenser Truck Dongfeng
6,000 Litres LPG Dispensing Tanker
LPG Dispenser Truck Dongfeng
Function:

LPG dispenser truck (also called LPG dispensing tanker, LPG tanker truck, LPG tank truck, LPG delivery truck, LPG truck mounted transport tank, LPG truck tank, LPG road tanker truck) is used to transport liquefied petroleum gas, such as propane, liquid ammonia, dimethyl ether (DME), isobutene, etc.

LPG transport tank truck also can be used as a mobile gas station after equipped with gas dispenser, LPG gas pump.

The LPG tanker material uses a specialized steel for high pressure tanker, which is anti-corrosive and keeps a good stability at low or high temperature.

LPG tanker trucks are basically equipped with safety valve, emergency shut-off valve, thermometer, pressure gauge for the safety use.

Features:
---- Dongfeng chassis, perfect performance
---- Cummins engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Nice shape, rational structure
---- Strong, durable, perfect performance
---- Prolonged service life
Specification:

LPG Dispenser Truck Dongfeng (6,000 Litres )
General Vehicle Brand SPV
Chassis Brand Dongfeng
Overall Dimension 7400 * 2300 * 2800 mm
GVW / Kerb Weight 8,800 kg / 4,500 kg
Cab Cab Capacity 2 persons allowed
Air Conditioner Air conditioner is optional
Engine Fuel Type Diesel
Engine Brand CUMMINS engine
Power 140 Hp (103 KW)
Displacement 4500 ml
Emission Standard Euro III
Chassis Drive Type 4X2, left hand or right hand drive
Transmission 5-speed forward, 1-reverse
Wheelbase/No. of axle 3800 mm / 2
Tyre Specification 8.25-16
Tyre Number 6 tyres and 1 spare tyre
Max Speed 110 km/h
Paint Metallic paint
Superstructure Tank Capacity 6,000 Litres
Tank Material Specialized steel for high pressure gas tank
Tank Thickness 10 mm
Designe Pressure 1.77 Mpa
Designe Temperature 50 °C
LPG Dispenser Equipped, with ticket printer
All other standard accessories: inlet/outlet, safety valve, emergency shut-off valve, drainback system, thermometer, pressure gauge, fire extinguisher, anti-static grounding tape…
Optional ** Separate inlet and outlet.
** Pump, gas dispenser….

LPG Dispenser Truck Dongfeng - F
Photo 1: Left Front View of LPG Dispenser Truck Dongfeng

LPG Dispenser Truck Dongfeng - LB
Photo 2: Left Back View of LPG Dispenser Truck Dongfeng

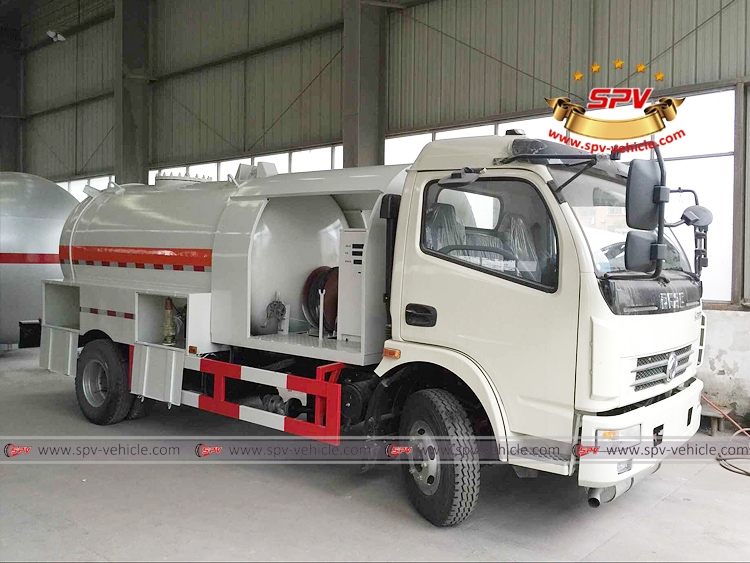

LPG Dispenser Truck Dongfeng - RF

Photo 3: Right Front View of LPG Dispenser Truck Dongfeng

LPG Dispenser Truck Dongfeng - RS
Photo 4: Right Side View of LPG Dispenser Truck Dongfeng

LPG Dispenser Truck Dongfeng - RB
Photo 5: Right Back View of LPG Dispenser Truck Dongfeng

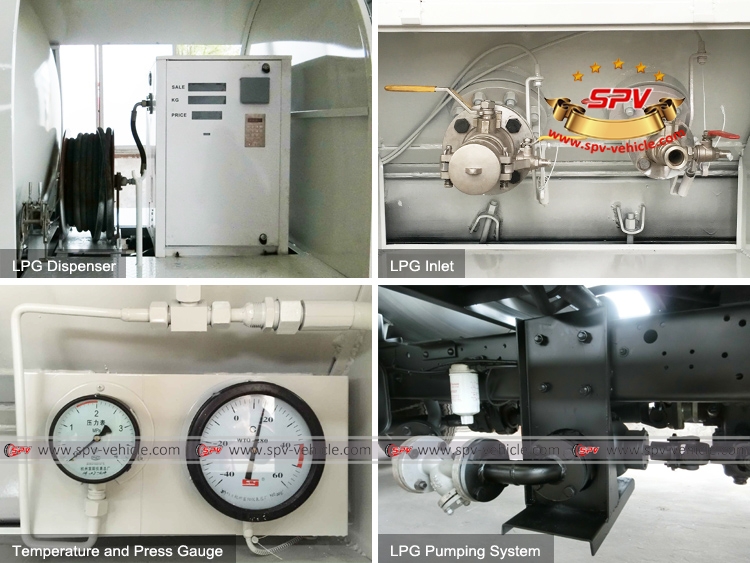

LPG Dispenser Truck Dongfeng - Details
Photo 6: Details of LPG Dispenser Truck Dongfeng
