LPG dispenser truck (also called LPG tank truck, LPG carring truck, truck mounted LPG tanker, LPG dispensing truck, LPG tanker truck, LPG tank truck, LPG delivery truck, LPG truck mounted transport tank, LPG truck tank, LPG road tanker truck) is used to transport liquefied petroleum gas, such as propane, liquid ammonia, dimethyl ether (DME), isobutene, etc.
LPG tanker also can be used as a mobile gas station after equipped with gas dispenser, LPG gas pump.
The LPG tanker material uses a specialized steel for high pressure tanker, which is anti-corrosive and keeps a good stability at low or high temperature.
LPG tanker trucks are basically equipped with safety valve, emergency shut-off valve, thermometer, pressure gauge for the safety use.

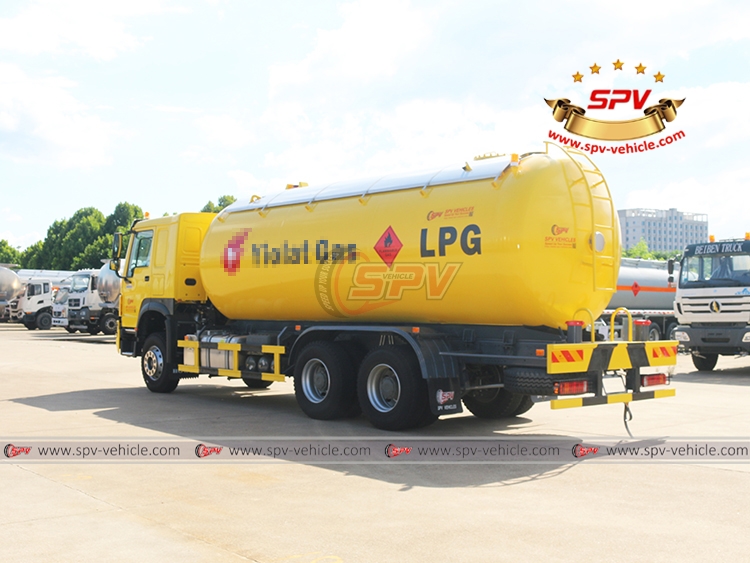

LPG Dispenser Truck Sinotruk (25,000 Litres ) | ||
General | Vehicle Brand | SPV |
Chassis Brand | Sinotruk | |
Overall Dimension | 10065 * 2510 * 3470 mm | |
GVW / Kerb Weight | 25,000 kg / 16,320 kg | |
Cab | Cab Capacity | 3 persons allowed |
Air Conditioner | W/ Air conditioner | |
Engine | Fuel Type | Diesel |
Engine Brand | Sinotruk engine | |
Power | 340 Hp (50 KW) | |
Displacement | 9726 ml | |
Emission Standard | Euro II | |
Chassis | Drive Type | 6X, left hand or right hand drive |
Transmission | 10-speed forward, 2-reverse | |
No. of axle | 3 | |
Tyre Specification | 315/80R22.5 | |
Tyre Number | 10 tyres and 1 spare tyre | |
Max Speed | 80 km/h | |
Paint | Metallic paint | |
Superstructure | Tank Capacity | 25,000 Litres |
Tank Material | Specialized steel for high pressure gas tank | |
Tank Thickness | 12 mm | |
All other standard accessories: inlet/outlet, safety valve, emergency shut-off valve, thermometer, pressure gauge, fire extinguisher, anti-static grounding tape… | ||
Optional |
** Separate inlet and outlet. ** Pump, gas dispenser…. |
