ShangHai SPV Special Vehicle Co., Ltd.
Concrete mixer truck (also called cement mixer vehicle, transit mixer, concrete transport truck, construction vehicle, mixer truck, cement mixer, cement mixer truck, concrete mixer truck, mixer truck, volumetric mixer truck, agitator truck) is made to transport and mix concrete up to the construction site.The concrete mixing transport truck maintains the material's liquid state through agitation, or turning of the drum, until delivery.
SPV manufacture concrete mixer truck from 2 CBM to 16 CBM. For the construction place which has limited height and width requirements for the vehicle, small concrete mixer trucks (2m³ to 6 m³) that are perfect for the demands.
---- Nice shape, rational structure
---- High-intensity drum material
---- Imported original hydraulic system
---- Optimized mixing blades, low material residue
---- High quality parts, massive, durable, perfect performance
---- Prolonged service life

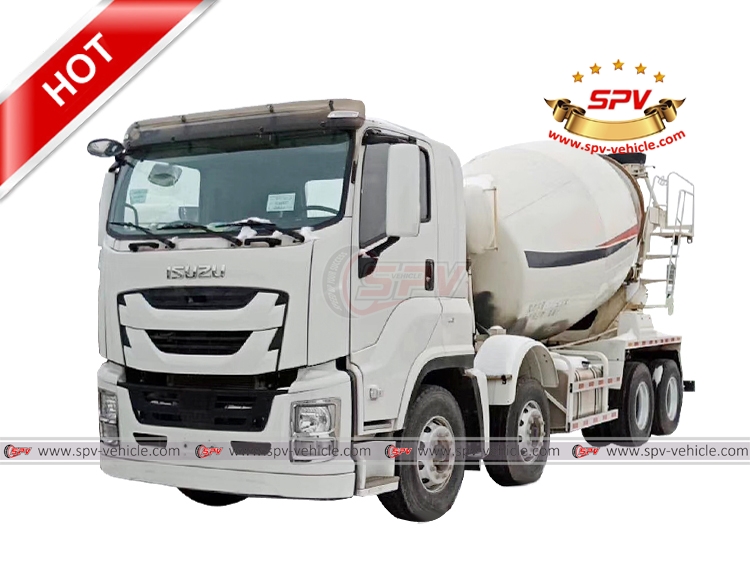

| Concrete Mixer Truck ISUZU (12 CBM) | ||
| General | Vehicle Brand | SPV |
| Chassis Brand | ISUZU | |
| Overall Dimension | 11800 * 2500 * 4000 mm | |
| GVW / Kerb Weight | 31,000 kg / 16,000 kg | |
| Cab | Cab Capacity | 2 persons seats with 1 sleeper |
| Air Conditioner | Equipped | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU engine | |
| Power | 380 Hp (279 KW) | |
| Displacement | 9839 ml | |
| Emission Standard | Euro V | |
| Chassis | Drive Type | 8X4, left hand drive |
| Transmission | 12-speed forward, 2 reverse | |
| Wheelbase/No. of axle | 1850+3280+1370 mm / 4 | |
| Tyre Specification | 315/80R22.5 | |
| Tyre Number | 12 tyres and 1 spare tyre | |
| Max Speed | 90 km/h | |
| Paint | Metallic paint | |
| Superstructure | Mixing Capacity | 12 m³ |
| Drum Material | Alloy steel | |
| Hydraulic Motor | Imported Brand | |
| HydraulicPump | Imported Brand | |
| Reduction Box | Imported Brand | |
| Radiator | High Class Chinese Brand | |
| Rest Rate | ≤0.5% | |
| Water Supply System | Air pressure | |
| Water Tank Volume | 400 L | |
| All other standard accessories: manhole, ladder, inlet, discharge……. | ||
| Optional | ** Hydraulic system brand could be PMP, ZF, Eaton, Rexroth, etc. Or other opointed brand. | |
