ShangHai SPV Special Vehicle Co., Ltd.
Concrete mixer truck (also called transit mixer, concrete transport truck, construction vehicle, mixer truck, cement mixer, cement mixer truck, concrete mixer truck, mixer truck, volumetric mixer truck, agitator truck) is made to transport and mix concrete up to the construction site.The concrete mixing transport truck maintains the material's liquid state through agitation, or turning of the drum, until delivery.
For the construction place which has limited height and width requirements for the vehicle, small concrete mixer trucks (2m³ to 6 m³) that are perfect for the demands.
---- Nice shape, rational structure
---- High-intensity drum material
---- Imported original hydraulic system
---- Optimized mixing blades, low material residue
---- High quality parts, massive, durable, perfect performance
---- Prolonged service life
Similar Key Words: transit mixer, concrete transport truck, construction vehicle, mixer truck, cement mixer, cement mixer truck, concrete mixer truck, mixer truck, volumetric mixer truck, agitator truck

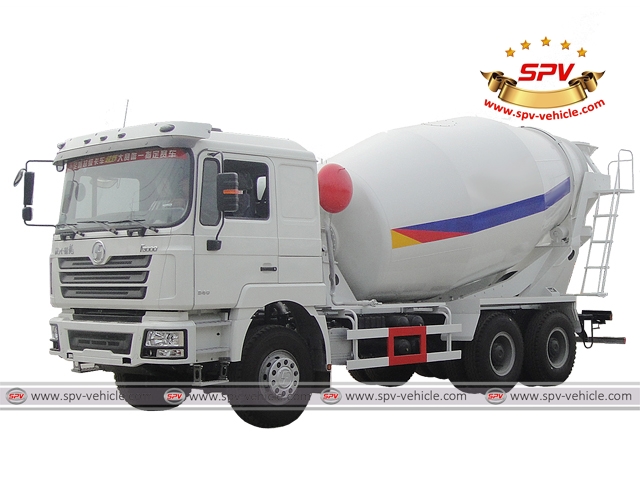

| Agitator Truck Shacman (10CBM) | ||
| General | Vehicle Brand | SPV |
| Chassis Brand | Shacman | |
| Overall Dimension | 9995 * 2500 * 3985 mm | |
| GVW / Kerb Weight | 25,000 kg / 13,700kg | |
| Cab | Cab Capacity | 3 persons allowed |
| Air Conditioner | Air conditioner is optional | |
| Engine | Fuel Type | Diesel |
| Engine Brand | Weichai engine | |
| Power | 336 Hp (247 KW) | |
| Displacement | 9726 ml | |
| Emission Standard | Euro III | |
| Chassis | Drive Type | 6X4, left or right hand drive |
| Transmission | 9-speed front, 1 reverse | |
| Wheelbase/No. of axle | 4000+1350 mm / 3 | |
| Tyre Specification | 11.00-20 | |
| Tyre Number | 10 tyres and 1 spare tyre | |
| Max Speed | 77 km/h | |
| Paint | Metallic paint | |
| Superstructure | Mixing Capacity | 10 m³ |
| Drum Material | Alloy steel | |
| Hydraulic Motor | Imported Brand | |
| HydraulicPump | Imported Brand | |
| Reduction Box | Imported Brand | |
| Radiator | High Class Chinese Brand | |
| Rest Rate | ≤0.5% | |
| Water Supply System | Air pressure | |
| Water Tank Volume | 400 L | |
| All other standard accessories: manhole, ladder, inlet, discharge……. | ||
| Optional | ** Hydraulic system brand could be PMP, ZF, Eaton, Rexroth, etc. Or other opointed brand. | |
