ShangHai SPV Special Vehicle Co., Ltd.
Concrete mixer truck (also called transit mixer, concrete transport truck, construction vehicle, mixer truck, cement mixer, cement mixer truck, concrete mixer truck, mixer truck, volumetric mixer truck, agitator truck) is made to transport and mix concrete up to the construction site.The concrete mixing transport truck maintains the material's liquid state through agitation, or turning of the drum, until delivery.
For the construction place which has limited height and width requirements for the vehicle, small concrete mixer trucks (2m³ to 6 m³) that are perfect for the demands.
---- Nice shape, rational structure
---- High-intensity drum material
---- Imported original hydraulic system
---- Optimized mixing blades, low material residue
---- High quality parts, massive, durable, perfect performance
---- Prolonged service life
Similar Key Words: transit mixer, concrete transport truck, construction vehicle, mixer truck, cement mixer, cement mixer truck, concrete mixer truck, mixer truck, volumetric mixer truck, agitator truck

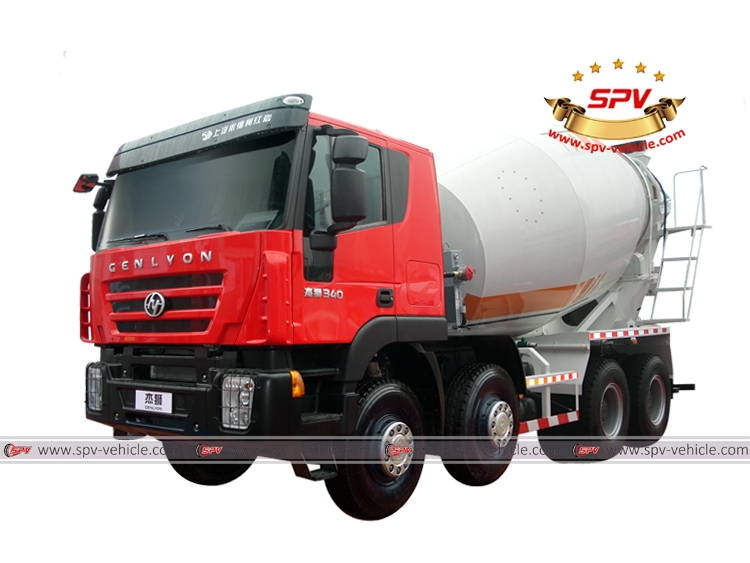

| Concrete Mixer Engine IVECO (14 CBM) | ||
| General | Vehicle Brand | SPV |
| Chassis Brand | IVECO | |
| Overall Dimension | 11,435* 2500 * 3995 mm | |
| GVW / Kerb Weight | 31,000 kg / 17,160 kg | |
| Cab | Cab Capacity | 2 persons allowed |
| Air Conditioner | W/ air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | Fiat engine | |
| Power | 350 Hp (257 KW) | |
| Displacement | 8709 ml | |
| Emission Standard | Euro III | |
| Chassis | Drive Type | 8X4, left or right hand drive |
| Transmission | 12-speed front, 1 reverse | |
| Wheelbase/No. of axle | 1800+3625+1350 mm / 4 | |
| Tyre Specification | 11.00-20 | |
| Tyre Number | 12 tyres and 1 spare tyre | |
| Max Speed | 80 km/h | |
| Paint | Metallic paint | |
| Superstructure | Mixing Capacity | 14 m³ |
| Drum Material | Alloy steel | |
| Hydraulic Motor | Imported Brand | |
| HydraulicPump | Imported Brand | |
| Reduction Box | Imported Brand | |
| Radiator | High Class Chinese Brand | |
| Rest Rate | ≤0.5% | |
| Water Supply System | Air pressure | |
| Water Tank Volume | 400 L | |
| All other standard accessories: manhole, ladder, inlet, discharge……. | ||
| Optional | ** Hydraulic system brand could be PMP, ZF, Eaton, Rexroth, etc. Or other opointed brand. | |
