4.2m Stage Truck, Mobile Show Truck, Outdoor Show Truck , Mobile Hydraulic Stage Vehicle from China | SPV
Home > Van Truck > Show Truck
Stage Truck Dongfeng
4.2m Mobile Show Truck
Stage Truck Dongfeng
Function:

Stage truck (also called mobile show truck, mobile stage truck, outdoor show truck , mobile hydraulic stage vehicle, multimedia truck, mobile advertising truck, mobile show vehicle, mobile stage vehicle, mobile concert truck, mobile LED stage truck, etc.) is designed for providing instant stage solutions for corporate events, product demonstrations, festivals, concerts, fashion parades, schools, parties, etc.

There are variety stage design options: one side stage hydraulically open, both sides stage hydraulically open, three sides stage hydraulic open, van roof hydraulically raised with stage open, etc. The stage floor is using special anti-slip board which could guard safety well.

Mobile stage truck generally equips with sound, light truss, stepladder , etc. Other function or devices, such as van body lifted as awning, LED billboard, lamp, extra extension stage, etc. could also be customized.

Features:

---- Dongfeng chassis, perfect performance.
---- Chinese top brand Chaoyang engine, super powerful; reliable performance.
---- Anti-slip stage board, much strengthened and durable.
---- Variety stage extension methods, could be customized according to requirements.
---- Massive, durable, long service life.

Specification:




Stage Truck Dongfeng (4.2m)
General Vehicle Brand SPV
Chassis Brand Dongfeng
Overall Dimension 6600 * 2500 * 3200 mm
GVW / Kerb Weight 7,300kg / 5,500 kg
Cab Cab Capacity 2 persons allowed
Air Conditioner Equipped
Engine Fuel Type Diesel
Engine Brand Chaoyang engine (Chinese top brand)
Power 120 Ps (88 KW)
Displacement 4730 ml
Emission Standard Euro III, Euro IV
Chassis Drive Type 4X2, left hand drive
Transmission 5-speed forward, 1 reverse
Wheelbase/No. of axle 3300 mm / 2
Tyre Specification 6.50-16
Tyre Number 6 tyres and 1 spare tyre
Max Speed 90 km/h
Paint Metallic paint
Superstructure Van Box Dimension 4200 * 2100 * 2200 mm
Stage Extension One side extension
Stage Dimension 4200 * 3100 mm / 13 m2
Stage Floor Anti-slip board
Hydraulic System Chinese top brand, hydraulic flexing and stretching
Hydraulic Outrigger 4 pces
Ladder 1 set
Light Truss 1 set
All standard accessories: basic tool kit, English manual......
Optional ** Van body could be hydraulic lifted as awning.
** LED billboard.
** Extra Stage.

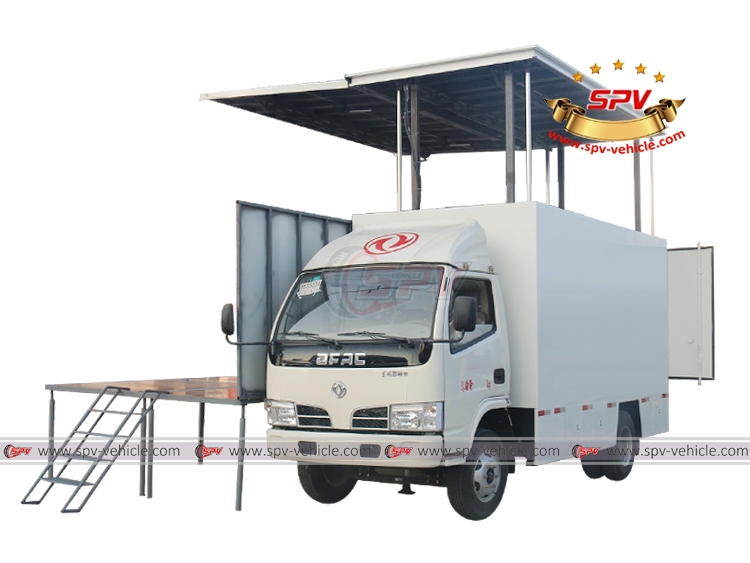

 Stage Truck Dongfeng - LF
Photo 1: Right front view of Mobile Stage Truck JAC

Stage Truck Dongfeng - RF
Photo 2: White color of Mobile Stage Truck JAC

Stage Truck Dongfeng - RS
Photo 3: Extension view of Mobile Stage Truck JAC

Similar Keywords: stage truck, outdoor show truck , mobile hydraulic stage vehicle, multimedia truck, mobile advertising truck, mobile show truck, mobile stage vehicle, mobile concert truck
