Mobile Stage Truck JAC
6.8m Outdoor Show Truck
Mobile Stage Truck JAC
Function:

Mobile stage truck (also calledstage truck, outdoor show truck , mobile hydraulic stage vehicle, multimedia truck, mobile advertising truck, mobile show truck, mobile stage vehicle, mobile concert truck, etc.) is designed for providing instant stage solutions for corporate events, product demonstrations, festivals, concerts, fashion parades, schools, parties, etc.

There are variety stage design options: one side stage hydraulically open, both sides stage hydraulically open, three sides stage hydraulic open, van roof hydraulically raised with stage open, etc. The stage floor is using special anti-slip board which could guard safety well.

Mobile stage truck generally equips with sound, light truss, stepladder , etc. Other function or devices, such as van body lifted as awning, LED billboard, lamp, extra extension stage, etc. could also be customized.

Features:

---- JAC chassis, perfect performance.
---- Chinese top brand Weichai engine, super powerful; reliable performance.
---- Anti-slip stage board, much strengthened and durable.
---- Variety stage extension methods, could be customized according to requirements.
---- Massive, durable, long service life.

Specification:




Mobile Stage Truck JAC (6.8m)
General Vehicle Brand SPV
Chassis Brand JAC
Overall Dimension 9600 * 2500 * 3950 mm
GVW / Kerb Weight 16,000kg / 14,500 kg
Cab Cab Capacity 2 persons allowed with 1 sleeper
Air Conditioner Equipped
Engine Fuel Type Diesel
Engine Brand Weichai engine (Chinese top brand)
Power 160 Ps (118 KW)
Displacement 4730 ml
Emission Standard Euro III, Euro IV
Chassis Drive Type 4X2, left hand drive
Transmission 8-speed forward, 1 reverse
Wheelbase/No. of axle 5000 mm / 2
Tyre Specification 9.00R20
Tyre Number 6 tyres and 1 spare tyre
Max Speed 90 km/h
Paint Metallic paint
Superstructure Van Box Dimension 6800 * 2450 * 2500 mm
Stage Extension One side extension
Stage Dimension 6800 * 5600 mm / 38 m2
Stage Floor Anti-slip board
Hydraulic System Chinese top brand, hydraulic flexing and stretching
Hydraulic Outrigger 4 pces
Ladder 1 set
Light Truss 1 set
All standard accessories: basic tool kit, English manual......
Optional ** Van body could be hydraulic lifted as awning.
** LED billboard.
** Extra Stage.

 Mobile Stage Truck JAC - RF

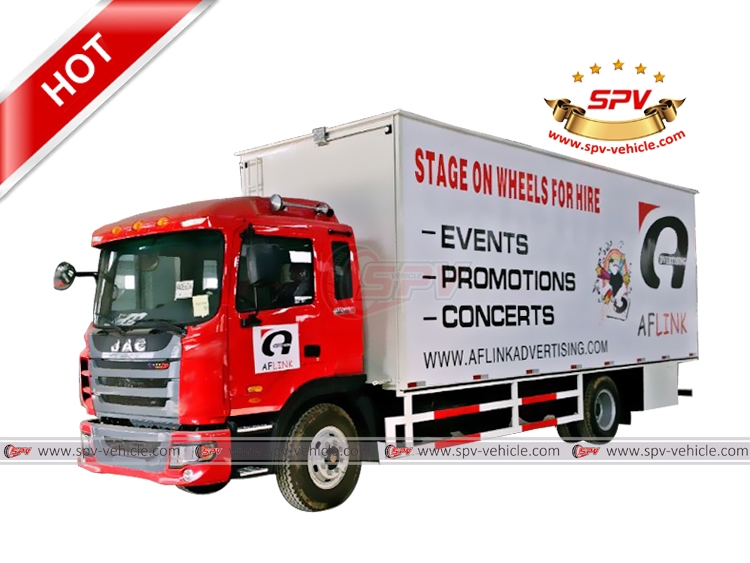

Photo 1: Right front view of Mobile Stage Truck JAC

Mobile Stage Truck JAC - White
Photo 2: White color of Mobile Stage Truck JAC

Mobile Stage Truck JAC - Extension
Photo 3: Extension view of Mobile Stage Truck JAC
