ShangHai SPV Special Vehicle Co., Ltd.
Helicopter refueling truck (also called oil tank truck, fuel tanker truck, fuel dispensing tanker, petrol truck tanker, oil tank lorry, truck aircraft refueling, refuel tank truck, fuel transport truck, aluminum fuel tank truck) is used to transport oil, diesel, gasoline, kerosene, etc.
It can be divided into many compartments to transport different types of fuels, lubricant, crude oil, alcohol……
Oil pump equipped, with pump in pump out function.
Off-road chassis makes this fuel truck suiting for any road situations, even in desert.
---- Sinotruk chassis, perfect performance.
---- Sinotruk engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Nice shape, rational structure.
---- Fuel pump super powerful, highly efficient, with pump in pump out function.
---- Massive, durable, long service life.
| Off - road Helicopter Refueling Truck Sinotruk (5,000 Litres) | ||
| General | Vehicle Brand | SPV |
| Chassis Brand | Sinotruk | |
| Overall Dimension | 8500 * 2500 * 3210 mm | |
| GVW / Kerb Weight | 16,000 kg / 8,850 kg | |
| Cab | Cab Capacity | 2 persons allowed |
| Air Conditioner | Equipped | |
| Engine | Fuel Type | Diesel |
| Engine Brand | Sinotruk engine | |
| Power | 266 Ps ( 196 KW ) | |
| Displacement | 9726 ml | |
| Emission Standard | Euro II | |
| Chassis | Drive Type | 4X4, left or right hand drive |
| Transmission | 10-speed forward, 2 reverse | |
| Wheelbase/No. of axle | 4300 mm / 2 | |
| Tyre Specification | 12.00R20, Radial tyre, super wearable | |
| Tyre Number | 6 tyres and 1 spare tyre | |
| Max Speed | 76 km/h | |
| Paint | Metallic paint | |
| Superstructure | Tank Capacity | 5,000 Litres ( About 1,320 gallons ) |
| Liquid to be loaded | Aviation Kerosene for Helicopter | |
| Tank Material | Stainless Steel or Aluminium | |
| Tank Top |
1. Top Euro-type manhole, preventing fuel leakage in case the tanker is over rolled. 2. Pressure/vacuum vent integrated, adjusting air pressure in the tank to keep tank safe. 3. Anti-fill sensor. Aluminium handrail on tank top. |
|
| Loading | From top manhole or bottom loading system API. With vapor recovery system. | |
| Tank Bottom | Emergent bottom valve(stainless stee) equipped. Preventing fuel leakage in case of accident. | |
| Inner baffles for prevention of longitidinal surge during moving. | ||
| Optional | ** Tank material could be stainless steel, aluminum (aluminum tanker)…… | |

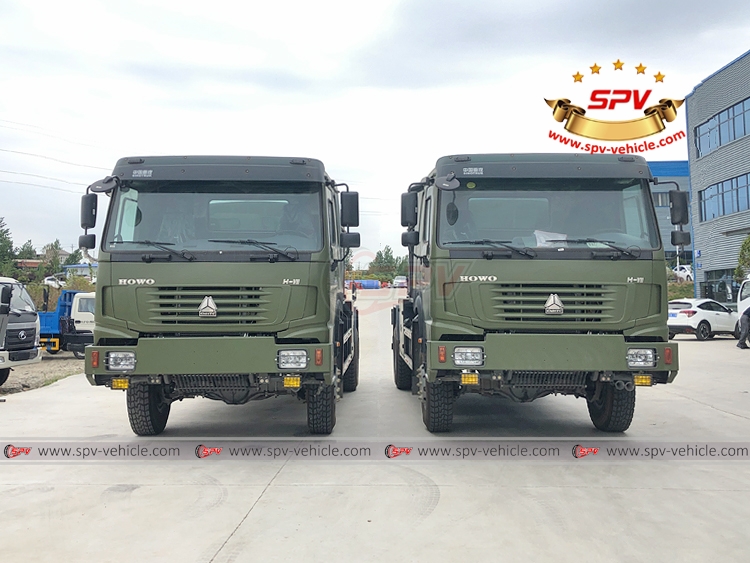

 - F.jpg "5,000 Litres Helicopter Refueling Truck Sinotruk(4x4) - F")
