ShangHai SPV Special Vehicle Co., Ltd.
Helicopter refueling truck (also called helicopter refueler, jet refueling bowser, truck helicopter refueling, rigid fuel truck for helicopter, helicopter refueling vehicle, jet fuel truck, jet fuel refueling truck, helicopter refuel truck, helicopter fuel servicing tank truck) is used to transport oil, diesel, gasoline, kerosene, etc.
It can be divided into many compartments to transport different types of fuels, lubricant.
Oil pump equipped, with pump in pump out function.
---- Dongfeng chassis, perfect performance.
---- Cummins engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Nice shape, rational structure.
---- Fuel pump super powerful, highly efficient, with pump in pump out function.
---- Massive, durable, long service life.
| Helicopter refueling truck Dongfeng (12,000 Litres) | ||
| General | Vehicle Brand | SPV |
| Chassis Brand | Dongfeng | |
| Overall Dimension | 8400 * 2500 * 2920 mm | |
| GVW / Kerb Weight | 16,000kg / 6,670kg | |
| Cab | Cab Capacity | 3 persons allowed |
| Air Conditioner | W/ air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | Cummins engine | |
| Power | 180Ps (132KW) | |
| Displacement | 5900 ml | |
| Emission Standard | Euro III | |
| Chassis | Drive Type | 4X2, left or right hand drive |
| Transmission | 8-speed front, 1 reverse | |
| Wheelbase/No. of axle | 4200 mm / 2 | |
| Tyre Specification | 10.00-20 | |
| Tyre Number | 6 tyres and 1 spare tyre | |
| Max Speed | 85 km/h | |
| Paint | Metallic paint | |
| Superstructure | Tank Capacity | 12,000 Litres (About 3,100 gallons) |
| Tank Material | Carbon steel | |
| Pump | Fuel pump equipped for overhead delivery | |
| Suction Head | 6 m | |
| Hose | High quality, wire strengthened hose, with cooper wire, anti-static | |
| All standard accessories: manhole, ladder, inlet, discharge…….. | ||
| Optional |
** Tank material could be carbon steel, stainless steel, aluminum (aluminum tanker)…… ** It can be divided into many compartments. ** Imported American mechnical pump Blackmer ** Imported American electrical pump Fillrite.... ** Devices can be equipped: flow meter, fuel dispenser, hose reel & nozzle, level gauge…… ** Heat preservation & heating system could be added. ** Bottom loading system can be equipped. |
|

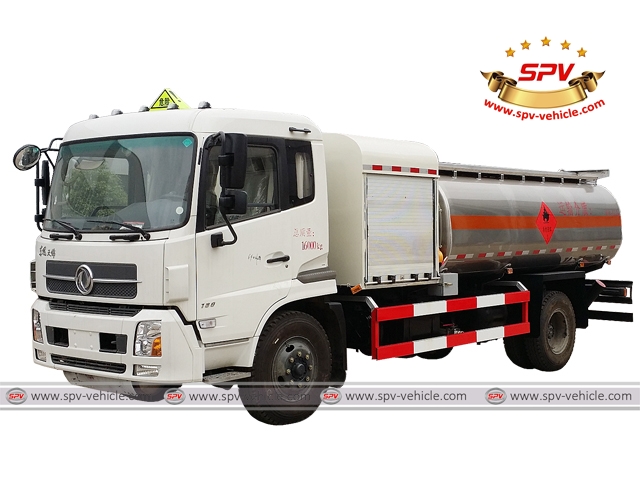

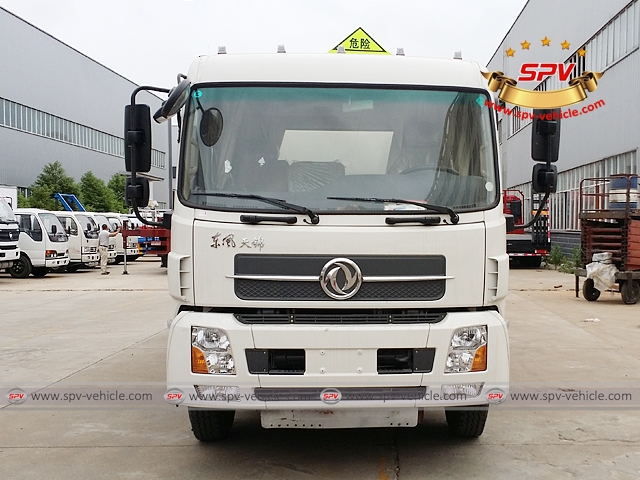

Helicopter Refueling Truck DongFeng - Front Side View

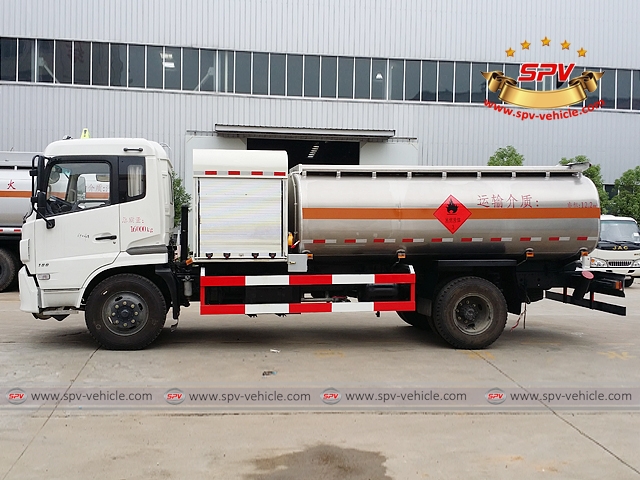

Helicopter Refueler Truck DongFeng - Left Side View

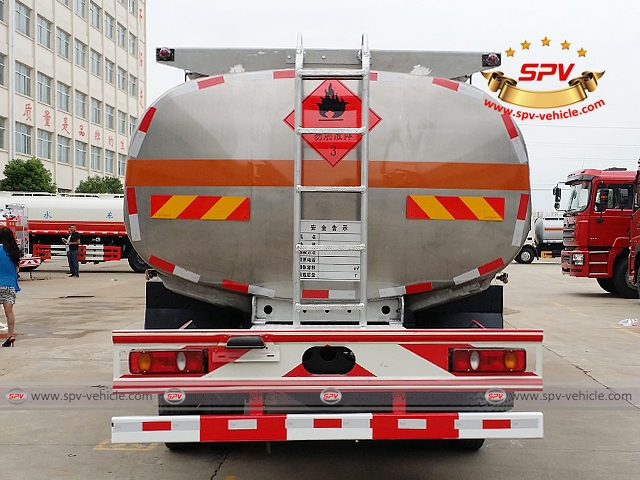

Refueling Truck for Helicopter DongFeng - Rear Side View
