ShangHai SPV Special Vehicle Co., Ltd.

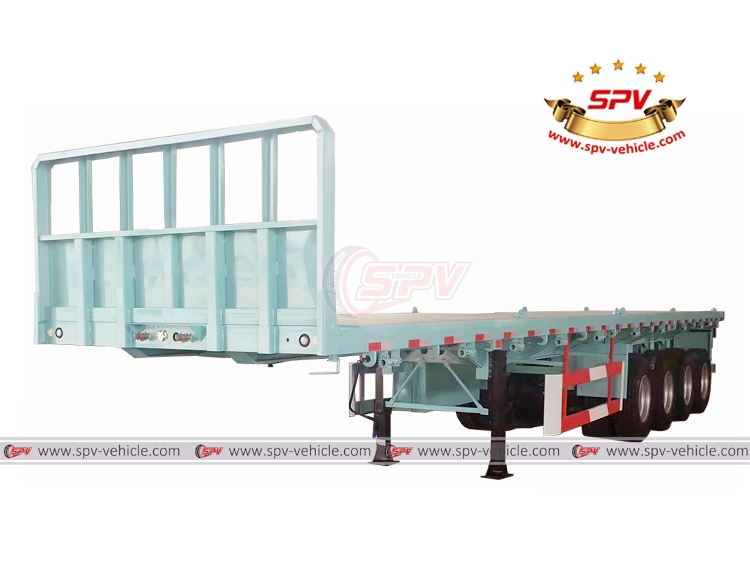

4-axle flatbed semi-trailer(also called tandem flatbed trailer,40 foot flatbed semi -trailer, 40 feet flatbed semi-trailer,tri-axle axle flatbed trailer, 40 foot flatbed trailer, 40 feet flatbed trailer, flatbed trailer, flat bed trailer, platform trailer ) is used to transport 20ft and 40ft ISO shipping containers, as well as woods, machines and heavy equipment. The trailer is a flat platform on top of 3 axles, it has an entirely flat, level body without sides or roof.
According to axles, flatbed semi-trailer could be divided into: 2-axle, 3-axle and 4-axle.
According to the special functions, flatbed smei-trailer has normal flatbed trailer, step deck trailer, flatbed trailer with tilted ramps and extendable flatbed semi-trailer.
| 4-axle Flatbed Semi trailer with side stakes(40 foot) | ||
| General | Vehicle Brand | SPV |
| Overall Dimension | 12500 * 2500 * 1600 mm | |
| GVW / Kerb Weight | 48,000 kg / 7,500 kg | |
| Superstructure | Payload | 40,000kg |
| Floor | 8 mm thickness strengthened steel | |
| Twist Locks | Twelve retractable ISO standard type twist locks | |
| Hooks | Eleven hooks on each side | |
| Kingpin | 2 or 3.5 inch | |
| Landing Gear | 28 Ton capacity, JOST optional | |
| Suspensions | Multi-leaf spring suspensions | |
| Brake System |
Dual air brake system WABCO relay emergency valve |
|
| Axles | 4 axles, FUWA or BPW brand | |
| Tyre | 12R22.5 | |
| No. of Tyres | 16 tyres with 1 spare tyre | |
| Paint | Automotive metallic paint | |
| All necessary accessories: took kit, English manual… | ||
| Optional |
** Platform could be flat steel plate or checked steel plate. ** BPW axles, JOST landing gears, Air suspension, ABS… ** Tube or tubeless tyres, off-road single tyre for bad roads. |
|
