ShangHai SPV Special Vehicle Co., Ltd.
Waste compactor truck (also called refuse compactor truck, garbage compactor truck, trash compactor, refuse collection truck, compactor garbage truck, trash compactor truck, rubbish truck, bin wagon, dustcart, bin lorry, waste collection vehicle) is designed to collect and transport municipal solid waste.
Garbage compactor is composed of hermitical garbage box, hydraulic system and operating system, which could apply pressure to the waste to break down bulky items, to load and transport more garbage by one time. Dirty liquid flows into waste sink, perfectly preventing re-pollution. When arriving at destination, the garbage can be dumped completely. It is ideal solution for solid waste collection.
The operation system could be manual or electrical control.

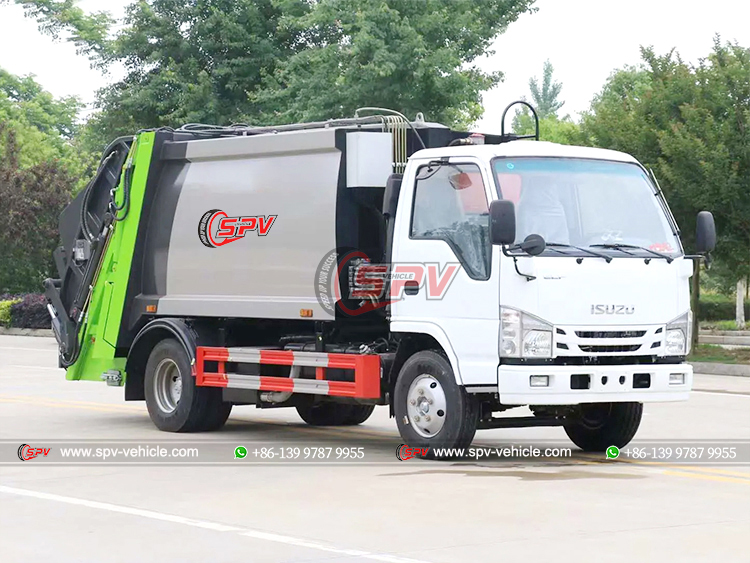

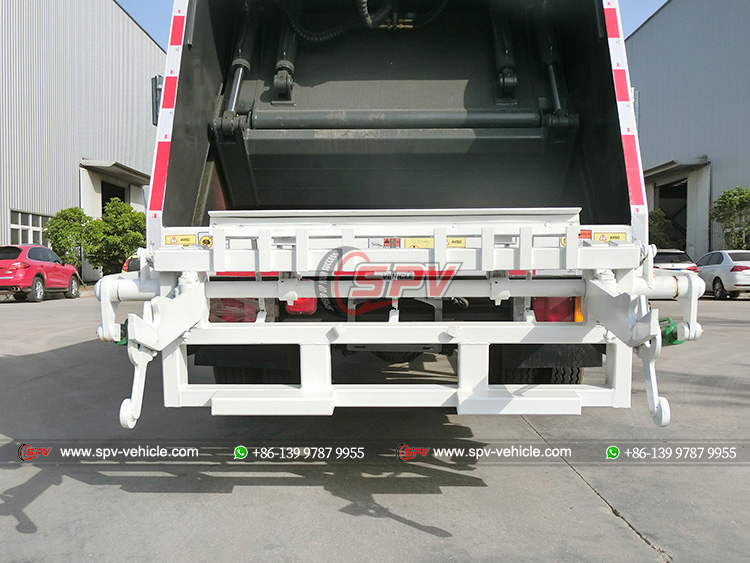

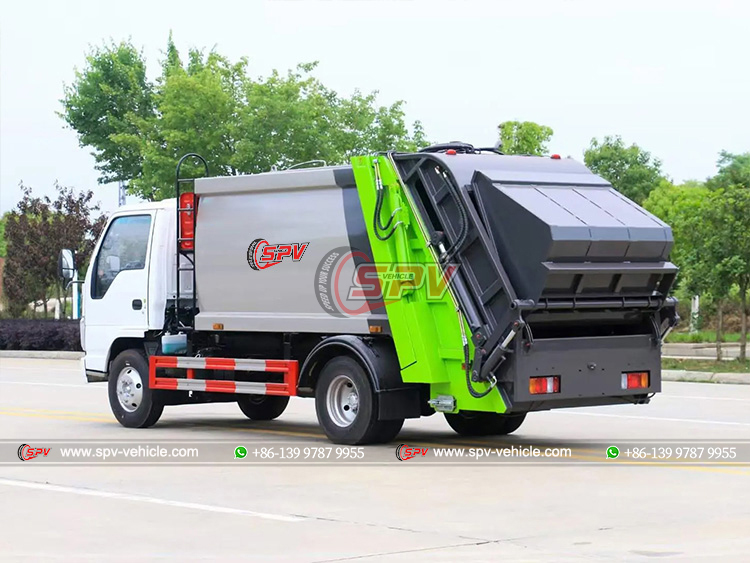

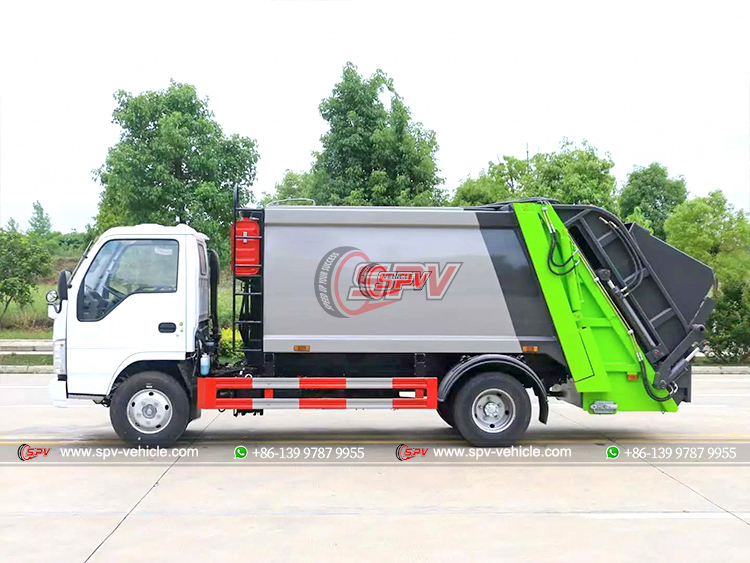

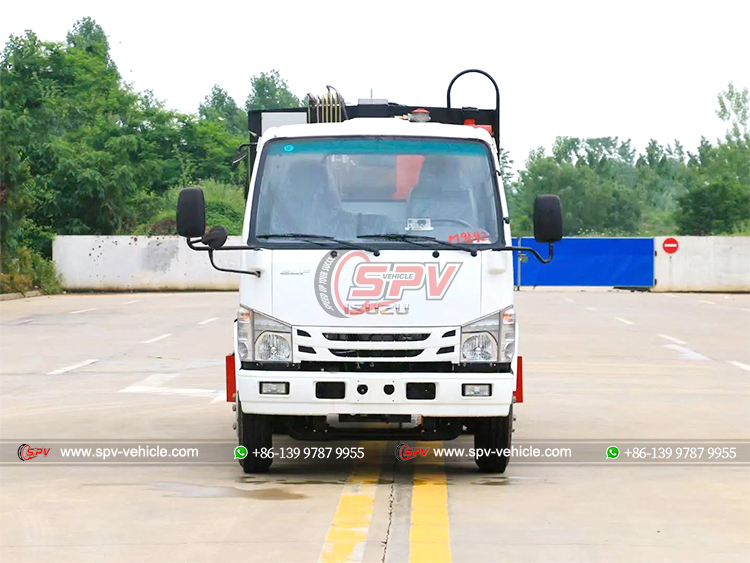

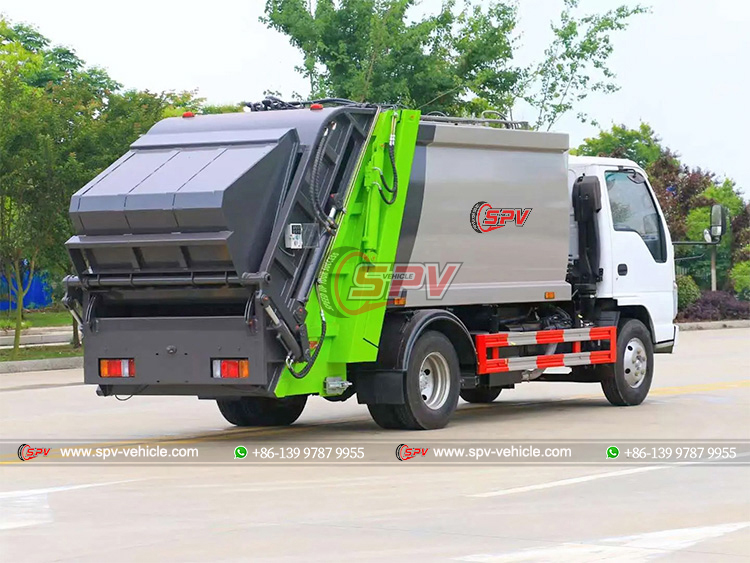

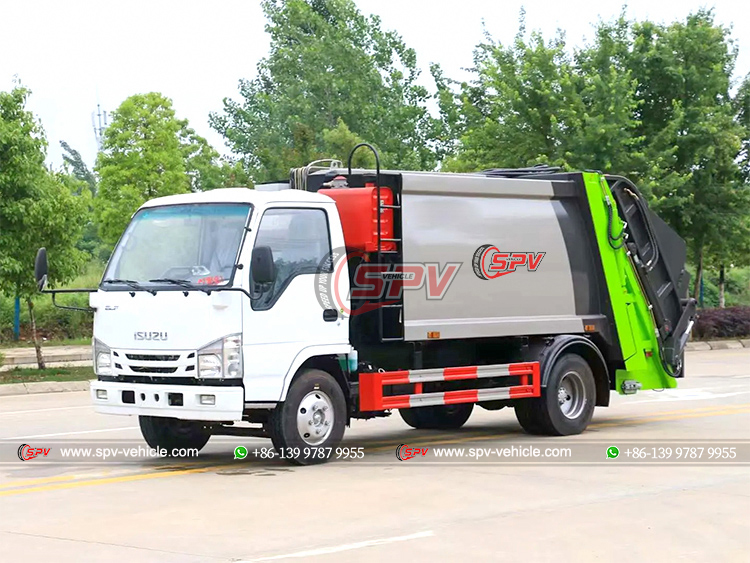

| Waste Compactor Truck ISUZU ( 6 m³) | ||
| General | Vehicle Brand | SPV |
| Chassis Brand | ISUZU | |
| Overall Dimension | 6650 * 2200 * 2680 mm | |
| GVW / Kerb Weight | 7,300 kg / 5,600 kg | |
| Cab | Cab Capacity | 3 persons allowed |
| Air Conditioner | W/ air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU engine | |
| Power | 120 Hp (88 KW) | |
| Displacement | 2999 ml | |
| Emission Standard | Euro IV | |
| Chassis | Drive Type | 4X2, left hand drive |
| Transmission | ISUZU gear box, no overhaul within 500,000km | |
| Wheelbase/No. of axle | 3360 mm / 2 | |
| Tyre Specification | 7.00-16 | |
| Tyre Number | 6 tyres and 1 spare tyre | |
| Max Speed | 105 km/h | |
| Paint | Metallic paint | |
| Superstructure | Waste Box Capacity | 6 m³ |
| Waste Box Material | Carbon steel | |
| All other standard accessories: Tool kit, English manual…… | ||
| Optional |
**Various rear loading mechanism: container lifting; hopper flip; skip loader… **Electronic operating system |
|
