Garbage Compactor Truck IVECO
20㎥ Rear Loader
Garbage Compactor Truck IVECO
Function:
Garbage compactor truck (also called waste compactor truck, garbage compactor vehicle, trash compactor, refuse collection truck, compactor garbage truck, rubbish truck, bin wagon, dustcart ,bin lorry , waste collection vehicle) is designed to collect and transport municipal solid waste.

Garbage compactor is composed of hermetical garbage box, hydraulic system and operating system, which could apply pressure to the waste to break down bulky items , to load and transport more garbage by one time. Dirty liquid flows in waste sink, perfectly preventing re-pollution. When arriving at destination , the garbage can be dumped completely. It is ideal solution for solid waste collection.

The compression garbage truck controlled by the integration of the machinery, electricity and hydraulic , with manual control system. Crush the garbage through filling, pushing and spading, finally make the waste compaction in the dustbin.



Features:
---- IVECO chassis, perfect performance
---- IVECO CURSOR engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Nice shape, rational structure
---- High quality hydraulic system
---- Massive, durable, perfect performance
---- Prolonged service life
Specification:

Garbage Compactor Truck IVECO (20 CBM)
General Vehicle Brand SPV
Chassis Brand IVECO
Overall Dimension 10150 X 2540 X 3290 mm
GVW / Kerb Weight 25,000 kg / 15,580 kg
Cab Cab Capacity 2 persons allowed
Air Conditioner Air conditioner equipped
Engine Fuel Type Diesel
Engine Brand IVECO CURSOR engine
Power 340 Hp (249 KW)
Displacement 8709 ml
Emission Standard Euro III
Chassis Drive Type 6X4, left hand drive or right hand drive
Transmission Manual, 9 speed forward, 1 reverse
No. of axle 3
Tyre Specification 12.00R20
Tyre Number 10 tyres and 1 spare tyre
Max Speed 85 km/h
Paint Metallic paint
Superstructure and the main characteristic

Garbage box Capacity 20 CBM
Garbage box Material Carbon steel
1: Can choose 240L(single bin、double bins)or 360L、660L、1100L standard bin lifting and turnover mechanism,can also choose ground hopper and other kinds of loading mechanism.
2: With manual and automatic two sets of control method, the operator can control in the cabin, in the middle side or the back of the truck , very convenient and efficient.
3: With working device of emergency braking stop button.
4: Garbage body use frame design, elegant, strong structure, large effective capacity.
5: Equipped with special collection box, sewage directly into the sewage tank in the process of compression, that is effectively prevent second pollution caused by sewage leaks.
6: Through hydraulic system design, the truck achieve the function of two-way garbage compression, that is improve the compressibility ,make the compression ratio up to 1:2.5,the garbage can reach more then 600~800kg/m3 after compression.
7: All other standard accessories: Tool kit, English manual…


20 CBM Garbage Compactor Truck IVECO - 30 Units 1
To Africa - 30 units of Garbage Compactor Trucks IVECO(20 CBM)

20 CBM Garbage Compactor Truck IVECO - 30 Units 2
30 units of Garbage Compactor Trucks IVECO(20 CBM)

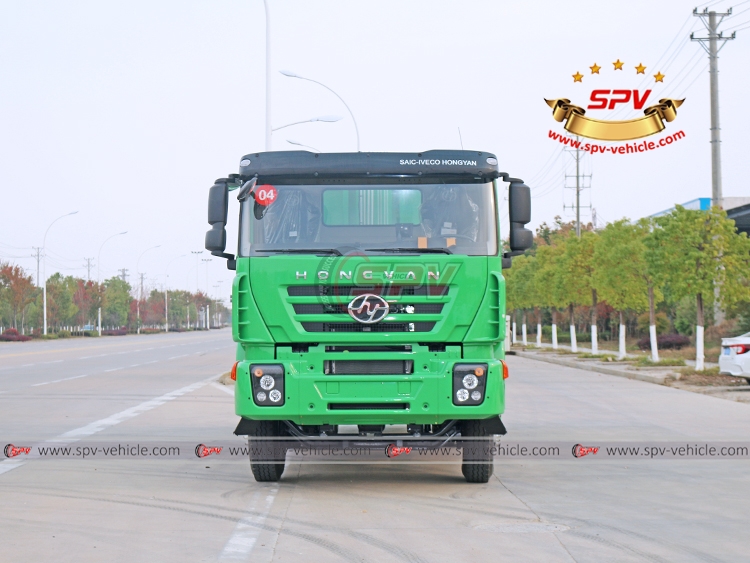

20 CBM Garbage Compactor Truck IVECO - F
Front View of Garbage Compactor Truck IVECO (20 CBM)

20 CBM Garbage Compactor Truck IVECO - LF
Left Front View of Garbage Compactor Truck IVECO (20 CBM)

20 CBM Garbage Compactor Truck IVECO - LS
Left Side View of Garbage Compactor Truck IVECO (20 CBM)

20 CBM Garbage Compactor Truck IVECO - LB
Left Back View of Garbage Compactor Truck IVECO (20 CBM)

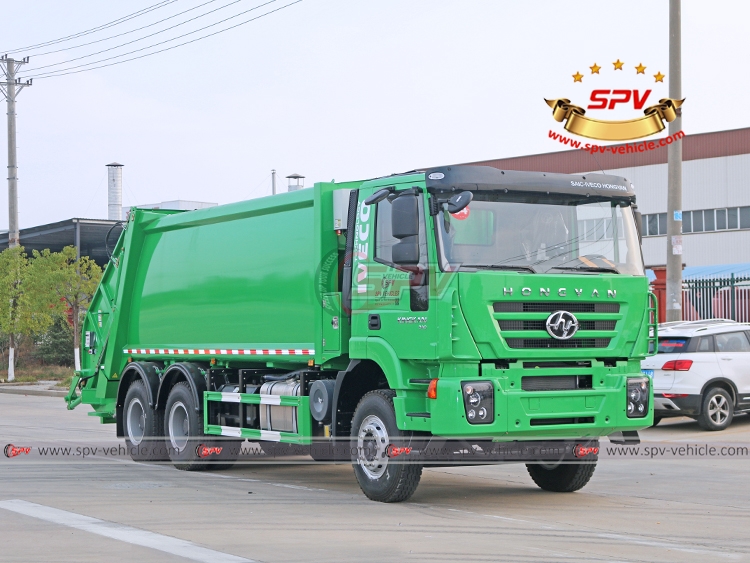

20 CBM Garbage Compactor Truck IVECO - RF
Right Front View of Garbage Compactor Truck IVECO (20 CBM)

20 CBM Garbage Compactor Truck IVECO - RS
Right Side View of Garbage Compactor Truck IVECO (20 CBM)

20 CBM Garbage Compactor Truck IVECO - RB
Right Back View of Garbage Compactor Truck IVECO (20 CBM)

20 CBM Garbage Compactor Truck IVECO - B
Back View of Garbage Compactor Truck IVECO (20 CBM)

20 CBM Garbage Compactor Truck IVECO -Accessories
Garbage Compactor Truck IVECO (20 CBM) - Detailed Accessories

**  Garbage Compactor Truck IVECO (20 CBM) - Testing with 2 units 240 L dustbins **
20 CBM Garbage Compactor Truck IVECO - Lifting 240 L

**  Garbage Compactor Truck IVECO (20 CBM) - Testing with 660 L container **
20 CBM Garbage Compactor Truck IVECO - Lifting 660 L

**  Garbage Compactor Truck IVECO (20 CBM) - Collecting Progress from Hopper **
20 CBM Garbage Compactor Truck IVECO - Collecting

**  Garbage Compactor Truck IVECO (20 CBM) - Testing with Wood Waste **
20 CBM Garbage Compactor Truck IVECO - Discharging

**  Garbage Compactor Truck IVECO (20 CBM) - At port in China **

20 CBM Garbage Compactor Truck IVECO - In Port 1

20 CBM Garbage Compactor Truck IVECO - In Port 2


Repeat Order for 31 Units of Garbage Compactor Trucks in 2024

1st Shipment: SPV 15 Units of Rubbish Compactor Trucks to Africa
1st Shipment: 15 Units of Rubbish Compactor Trucks to Africa

SPV-vehicle: 15 Units of Garbage Compactor Loading in Tianjin Port in 2024
1st Shipment: 15 Units of Garbage Compactor Loading in Tianjin Port in 2024


2nd Shipment: SPV 16 Units of Trash Compactor Trucks to Africa
2nd Shipment: 16 Units of Trash Compactor Trucks to Africa

2nd Shipment: 16 Units of Garbage Trucks Loading in LianYunGang Port in 2024

2nd Shipment: 16 Units of Garbage Trucks Loading in LianYunGang Port in 2024
