ShangHai SPV Special Vehicle Co., Ltd.
Garbage compactor truck(also called waste compactor truck, garbage compactor truck, trash compactor, refuse collection truck, compactor garbage truck,rubbish truck, bin wagon, dustcart, bin lorry, waste collection vehicle) is designed to collect and transport municipal solid waste.
Garbage compactor is composed of hermitical garbage box, hydraulic system and operating system, which could apply pressure to the waste to break down bulky items, to load and transport more garbage by one time. Dirty liquid flows into waste sink, perfectly preventing re-pollution. When arriving at destination, the garbage can be dumped completely. It is ideal solution for solid waste collection.
The operation system could be manual or electrical control.

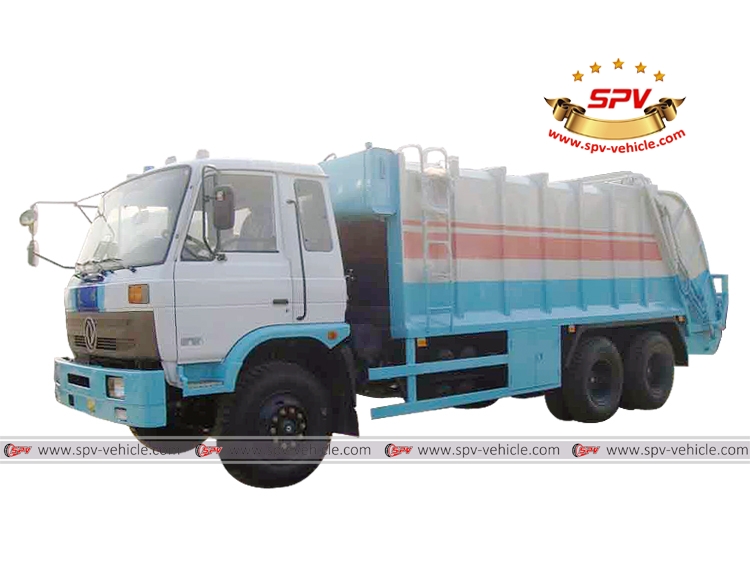

| Garbage Compactor Truck Dongfeng ( 16 m³) | ||
| General | Vehicle Brand | SPV |
| Chassis Brand | Dongfeng | |
| Overall Dimension | 9800 * 2500 * 3300 mm | |
| GVW / Kerb Weight | 25,000kg / 13,350 kg | |
| Cab | Cab Capacity | 3 persons allowed |
| Air Conditioner | Air conditioner is optional | |
| Engine | Fuel Type | Diesel |
| Engine Brand | Cummins engine | |
| Power | 210 Hp (155 KW) | |
| Displacement | 5900 ml | |
| Emission Standard | Euro III | |
| Chassis | Drive Type | 6X4, left or right hand drive |
| Transmission | 9-speed front, 1 reverse | |
| Wheelbase/No. of axle | 4350+1300 mm / 3 | |
| Tyre Specification | 10.00-20 | |
| Tyre Number | 10 tyres and 1 spare tyre | |
| Max Speed | 90 km/h | |
| Paint | Metallic paint | |
| Superstructure | Waste Box Capacity | 16 m³ |
| Waste Box Material | Carbon steel | |
| All other standard accessories: Tool kit, English manual…… | ||
| Optional |
**Various rear loading mechanism: container lifting; hopper flip; skip loader… **Electronic operating system |
|
