ShangHai SPV Special Vehicle Co., Ltd.

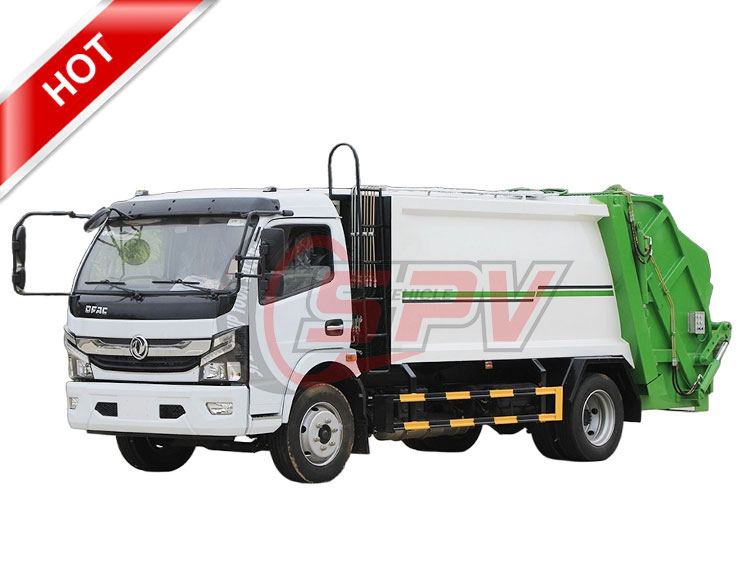

Soild waste collection truck (also called waste compactor truck, garbage compactor truck, trash compactor, refuse collection truck, compactor garbage truck, rubbish truck, bin wagon, dustcart ,bin lorry , waste collection vehicle) is designed to collect and transport municipal solid waste.
Garbage compactor is composed of hermetical garbage box, hydraulic system and operating system, which could apply pressure to the waste to break down bulky items , to load and transport more garbage by one time. Dirty liquid flows in waste sink, perfectly preventing re-pollution. When arriving at destination , the garbage can be dumped completely. It is ideal solution for solid waste collection.
The compression garbage truck controlled by the integration of the machinery, electricity and hydraulic , with manual control system. Crush the garbage through filling, pushing and spading, finally make the waste compaction in the dustbin.
| Soild Waste Collection Truck (6 CBM) | ||
| General | Vehicle Brand | SPV |
| Chassis Brand | Dongfeng | |
| Overall Dimension | 6400 X 2200 X 2600 mm | |
| GVW / Kerb Weight | 7,300 kg / 5,400 kg | |
| Cab | Cab Capacity | 3 persons allowed |
| Engine | Fuel Type | Diesel |
| Engine Brand | Cummins engine | |
| Power | 125 Hp (89 KW) | |
| Displacement | 3900 ml | |
| Emission Standard | Euro II | |
| Chassis | Drive Type | 4x2, left hand or right hand drive |
| Transmission | 5 speed forward and 1 reverse | |
| No. of Axles | 2 | |
| Tyre Specification | 215/70R17.5 Radial tyre, super waer-resistant | |
| Tyre Number | 6 tyres and 1 spare tyre | |
| Max Speed | 100 km/h | |
| Paint | Metallic paint | |
|
Superstructure and the main characteristic |
Garbage box Capacity | 6 CBM |
| Garbage box Material | Anti-corrosive steel | |
| 1: Can choose 240L（single bin、double bins）or 360L、660L、1100L standard bin lifting and turnover mechanism，can also choose ground hopper and other kinds of loading mechanism. | ||
| 2: With manual and automatic two sets of control method, the operator can control in the cabin, in the middle side or the back of the truck , very convenient and efficient. | ||
| 3: With working device of emergency braking stop button. | ||
| 4: Garbage body use frame design, elegant, strong structure, large effective capacity. | ||
| 5: Equipped with special collection box, sewage directly into the sewage tank in the process of compression, that is effectively prevent second pollution caused by sewage leaks. | ||
| 6: Through hydraulic system design, the truck achieve the function of two-way garbage compression, that is improve the compressibility ,make the compression ratio up to 1:2.5,the garbage can reach more then 600～800kg／m3 after compression. | ||
| 7: All other standard accessories: Tool kit, English manual… | ||
