Garbage compactor (also called waste compactor truck, garbage compactor truck, trash compactor, refuse collection truck, compactor garbage truck,rubbish truck, bin wagon, dustcart, bin lorry, waste collection vehicle) is designed to collect and transport municipal solid waste.
Garbage compactor is composed of hermitical garbage box, hydraulic system and operating system, which could apply pressure to the waste to break down bulky items, to load and transport more garbage by one time. Dirty liquid flows into waste sink, perfectly preventing re-pollution. When arriving at destination, the garbage can be dumped completely. It is ideal solution for solid waste collection.
The operation system could be manual or electrical control.

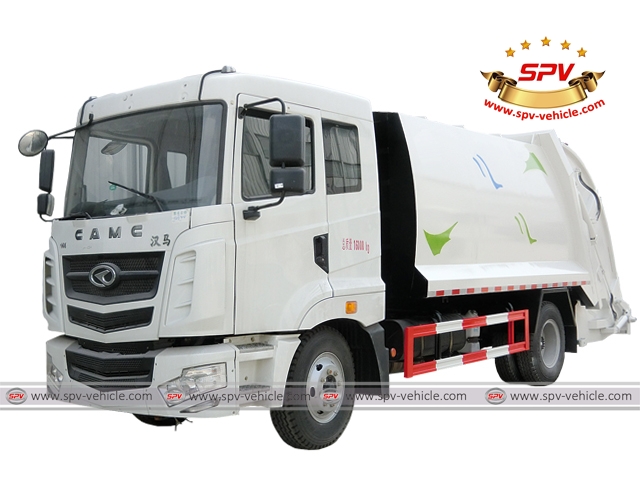

Garbage Compactor Vehicle CAMC ( 12 m³) | ||
General | Vehicle Brand | SPV |
Chassis Brand | CAMC | |
Overall Dimension | 8370 * 2500 * 3100 mm | |
GVW / Kerb Weight | 16,000kg / 8,900 kg | |
Cab | Cab Capacity | 3 persons allowed |
Air Conditioner | Air conditioner is equipped | |
Engine | Fuel Type | Diesel |
Engine Brand | Cummins engine | |
Power | 180 Hp (132 KW) | |
Displacement | 4500 ml | |
Emission Standard | Euro III | |
Chassis | Drive Type | 4X2, left hand drive |
Transmission | 6 - speed front, 1 reverse | |
Wheelbase/No. of axle | 4800 mm / 2 | |
Tyre Specification | 10.00-20 | |
Tyre Number | 6 tyres and 1 spare tyre | |
Max Speed | 90 km/h | |
Paint | Metallic paint | |
Superstructure | Waste Box Capacity | 15 m³ |
Waste Box Material | Carbon steel | |
All other standard accessories: Tool kit, English manual…… | ||
Optional |
**Various rear loading mechanism: container lifting; hopper flip; skip loader… **Electronic operating system |
