Function:
Truck mounted crane (also called unic crane, crane truck, ISUZU lorry mounted crane, truck cargo with loader crane, knuckle boom crane on truck chassis, truck with mounted back crane, ISUZU crane mounted cargo truck, truck with loading crane, boom crane, boom crane truck, articulated crane truck, ISUZU crane truck) is used to lift the cargo, load, transport and unload heavy stuff.
There are telescopic boom cranes and knuckle boom cranes, covering a wide range of capacities as follows:
Telescopic Boom Crane: 2Ton, 3.2Ton, 4Ton, 5Ton, 6.3Ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 25Ton
Knuckle Boom Crane: 1Ton, 2Ton, 3.2Ton, 4Ton, 5Ton, 6.3Ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 25Ton.
The cranes can be of famous brands as Palfinger (Canada), Unic (Japan), Tadano (Japan), XCMG (China top brand), Zoomlion, etc.
Features:
---- ISUZU chassis ensures perfect driving performance.
---- ISUZU engine, super powerful; reliable performance.
---- Nice shape, rational structure
---- High strength box body
---- Massive, durable, perfect performance
---- Prolonged service life
---- Premium cranes Palfinger (Canada), Unic (Japan), Tadano (Japan), XCMG (China top brand), Zoomlion, etc.
Crane features:
---- Advanced technology, stable performance, high efficiency
---- Wide and high-speed rotary, convenient operation
---- Unique design, small volume, low noise.
---- Key hydraulic components are of top international technologies, which make the operation safe and reliable.
Specification:
Similar Key Words: Truck mounted crane, unic crane, crane mounted truck, lorry mounted crane, ISUZU crane truck, knuckle pickers, crane mounted lorry, truck cargo with loader crane, knuckle boom crane on truck chassis, ISUZU knuckle boom truck mounted crane, ISUZU truck mounted hydraulic crane, truck with mounted back crane, crane mounted cargo truck, boom crane
Truck mounted Crane ISUZU
(3.2Tons Boom Crane) |
|
General |
Vehicle Brand |
SPV |
|
Chassis Brand |
ISUZU |
|
Overall Dimension |
5995 x 1950 x 2820 mm |
|
GVW / Kerb Weight |
4,495 kg / 2,100 kg |
|
Cab |
Cab Capacity |
2 persons allowed |
|
Air Conditioner |
Equipped Air conditioner |
|
Engine |
Fuel Type |
Diesel |
|
Engine Brand |
ISUZU |
|
Power |
98 Hp (72 KW) |
|
Displacement |
2771 ml |
|
Emission Standard |
Euro Ⅳ |
|
Chassis |
Drive Type |
4X2, left hand drive |
|
Transmission |
ISUZU, Manual 5 speed-forwardand 1 reverse |
|
No. of Axles |
2 |
|
Tyre Specification |
7.00-16 14PR |
|
Tyre Number |
6 tyres and 1 spare tyre |
|
Max Speed |
95 km/h |
|
Paint |
Metallic paint |
|
Superstructure |
Cargo Box Dimension |
3650 X 1900 X 450 mm |
|
Crane Type |
Boom crane |
|
Max Lifting Capacity |
3200 kg |
|
Slewing Angle |
360°all rotation |
|
All other standard accessories: Tool kit, English manual |
|
Optional |
1. Telescopic boom crane.
2. Hydraulic tipper box.
3. Box thickness according to requirement.
4. Box height could be nominated. |

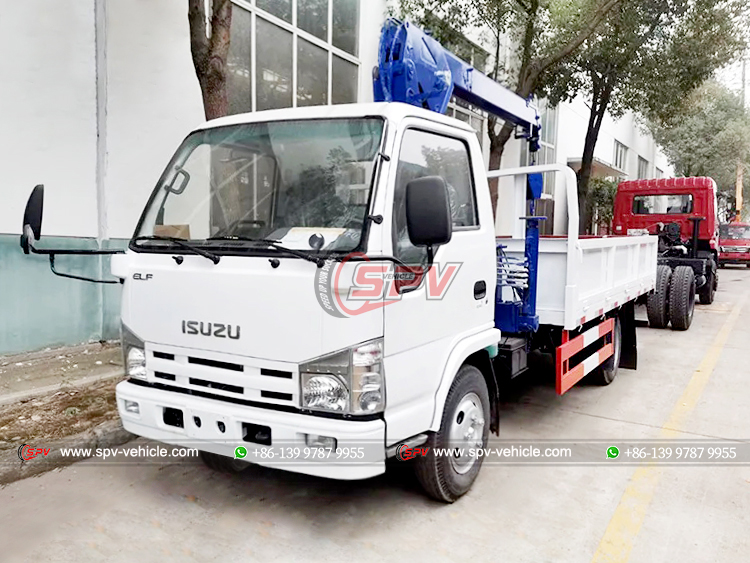

ISUZU 100P Boom Crane Truck - Front Left Side

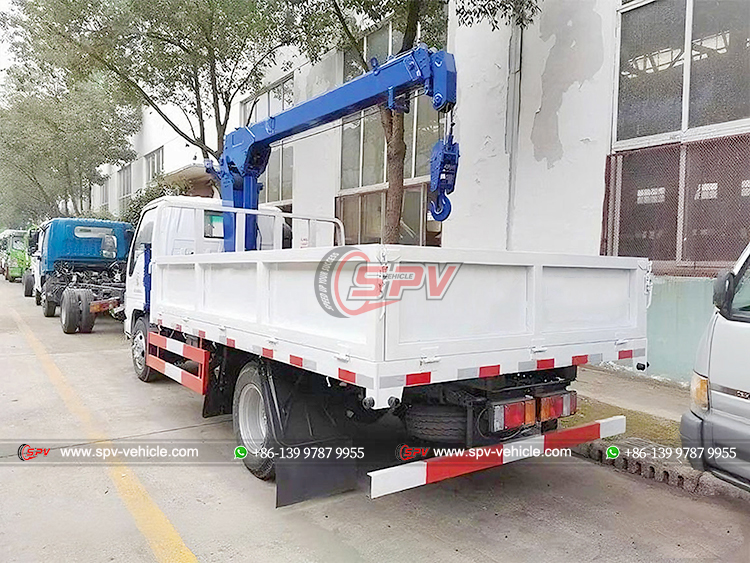

ISUZU 100P Light Crane Truck - Rear Left Side

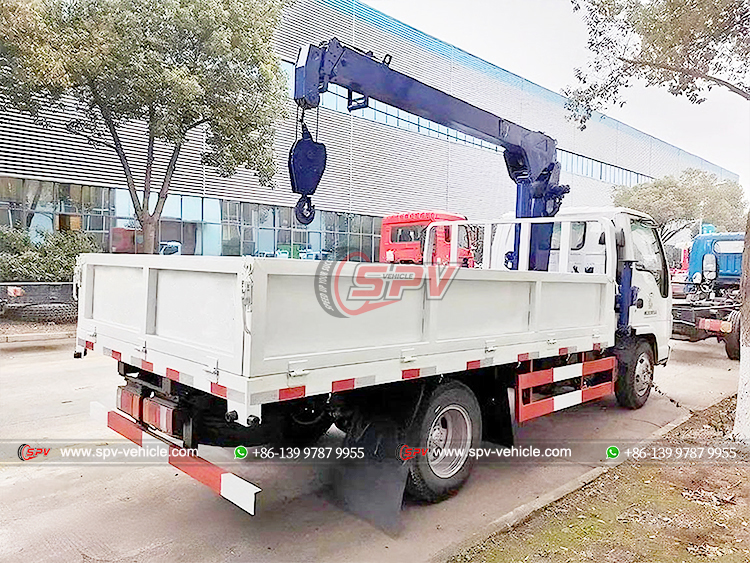

ISUZU 100P Truck Mounted Crane - Rear Right Side
