ISUZU 8x4 Articulated Boom Crane Truck Supplier / Manufacturer

Articulated crane truck (also called unic crane, ISUZU cranetruck, lorry mounted crane, truck cargo with loader crane, knuckle boom crane on truck chassis, truck with mounted back crane, ISUZU crane mounted cargo truck, truck with loading crane, Knuckle boom truck, ISUZU boom crane truck, boom crane truck, ,Knuckle boom crane, Foldable crane truck, Hydraulic articulated truck crane, Articulating truck-mounted crane, Truck with articulated boom,Articulated loader crane, Truck mounted articulated crane, Hydraulic folding arm crane truck, Articulated lifting truck. articulated crane truck) is used to lift the cargo, load, transport and unload heavy stuff.

There are telescopic boom cranes and knuckle boom cranes, covering a wide range of capacities as follows:
Telescopic Boom Crane: 2Ton, 3.2Ton, 4Ton, 5Ton, 6.3Ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 25Ton
Knuckle Boom Crane: 1Ton, 2Ton, 3.2Ton, 4Ton, 5Ton, 6.3Ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 25Ton.

The cranes can be of famous brands as Palfinger (Canada), Unic (Japan), Tadano (Japan), XCMG (China top brand), Zoomlion, etc.

Features:

---- ISUZU chassis ensures perfect driving performance.
---- ISUZU engine, super powerful; reliable performance.
---- Nice shape, rational structure
---- High strength box body
---- Massive, durable, perfect performance
---- Prolonged service life
---- Premium cranes Palfinger (Canada), Unic (Japan), Tadano (Japan), XCMG (China top brand), Zoomlion, etc.

Crane features:
---- Advanced technology, stable performance, high efficiency
---- Wide and high-speed rotary, convenient operation
---- Unique design, small volume, low noise.
---- Key hydraulic components are of top international technologies, which make the operation safe and reliable.

Specification:

Articulated Crane Truck ISUZU (16 Tons)
General	Vehicle Brand	SPV
	Chassis Brand	ISUZU
	Overall Dimension	12000 * 2550 * 3650 mm
	GVW / Kerb Weight	31,000 kg / 10,300 kg
Cab	Cab Capacity	2 persons allowed
Cab	Air Conditioner	Equipped Air conditioner
Engine	Fuel Type	Diesel
	Engine Brand	ISUZU
	Power	160 Hp (338 KW)
	Displacement	15680 ml
	Emission Standard	Euro VI
Chassis	Drive Type	8X4, left hand drive
	Transmission	Manual, 10-speed front, 2-reverse
	No. of Axles	3
	Tyre Specification	11.00R20
	Tyre Number	12 tyres and 1 spare tyre
	Max Speed	89 km/h
	Paint	Metallic paint
Superstructure	Cargo Box Dimension	7800 X 2300 X 600 mm
	Crane Brand	XCMG
	Max Lifting Capacity	16000 kg
	Lifting Capacity @ Working Radius	10000 kg @ 2.50 m; 5500kg @ 4.50 m; 3200 kg @ 7.00 m; 2300kg @ 9.00m 1500 kg@14.9 m
	Max. Lifting Moment	25 T.M
	Max. Lifting Height	17.2 m
	Max. Working Radius	14.9 m
	Slewing Angle	360°all rotation
	All other standard accessories: Tool kit, English manual
Optional	Hydraulic tipper box is optional. Box thickness according to requirement. ** Box height could be nominated.

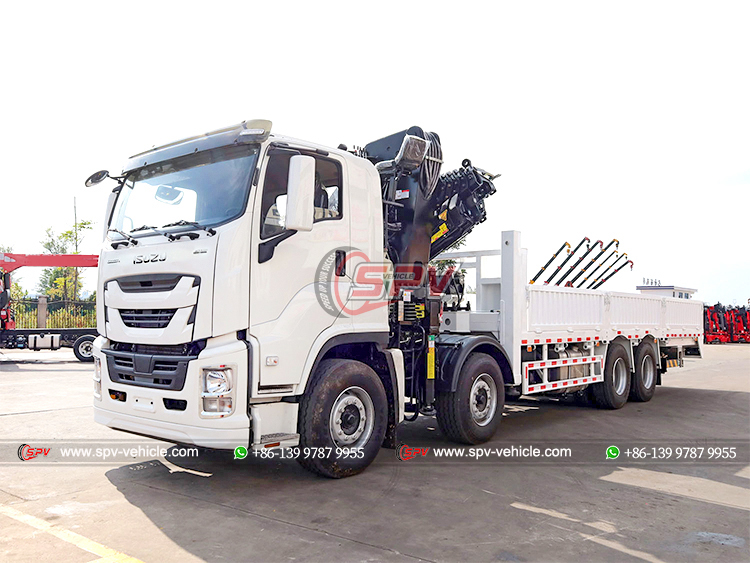

ISUZU 8x4 Articulated Crane Truck - Front Left Side

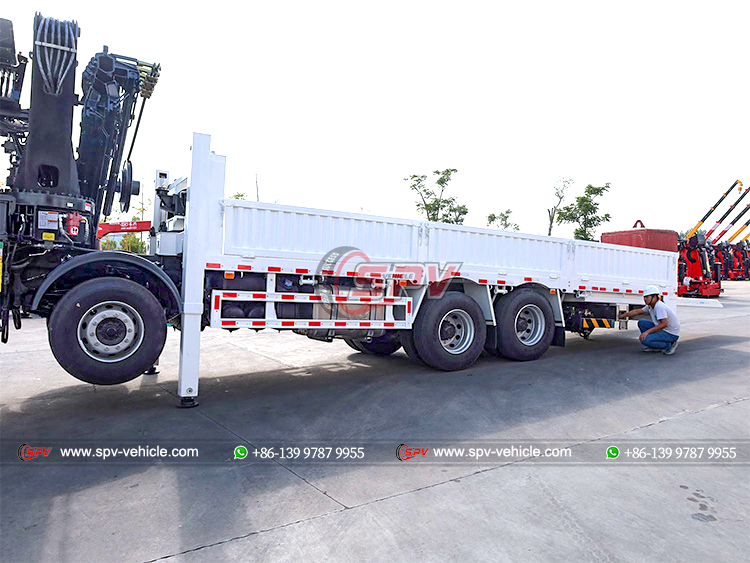

ISUZU 8x4 Knuckle Boom Truck - Truck Body

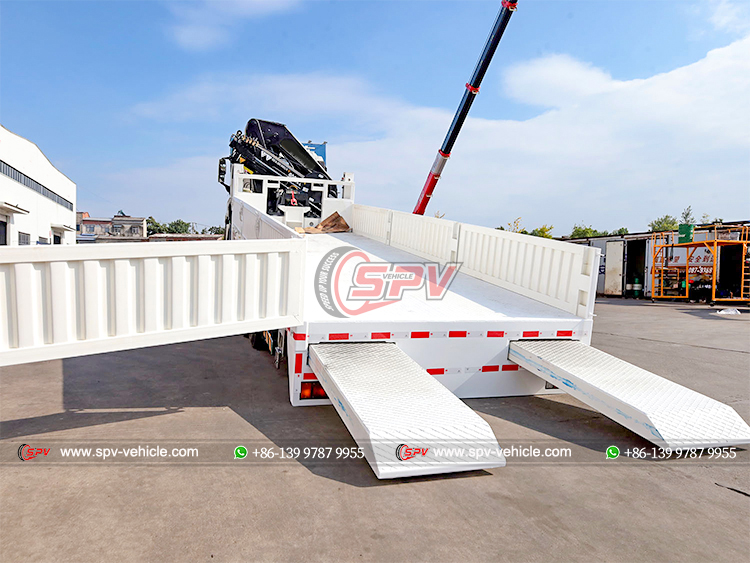

ISUZU 12 Wheels Foldable Crane Truck - Rear Left Side

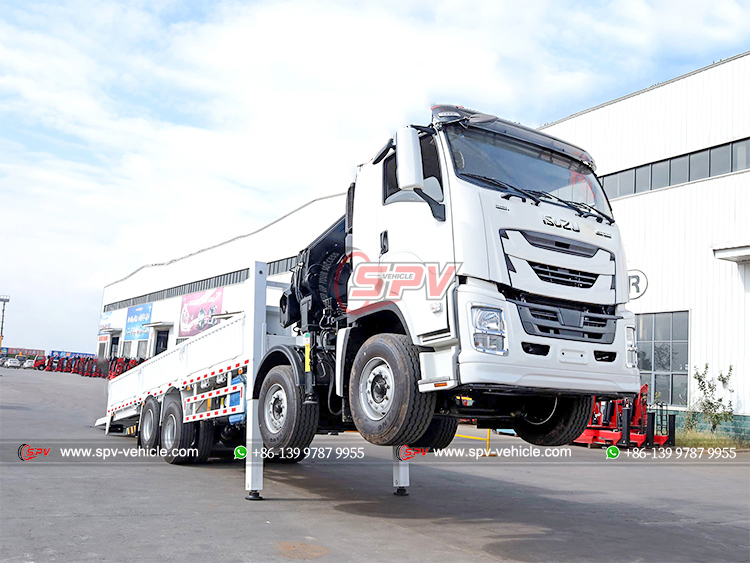

ISUZU 8x4 Articulated Crane Truck - Front Right Side

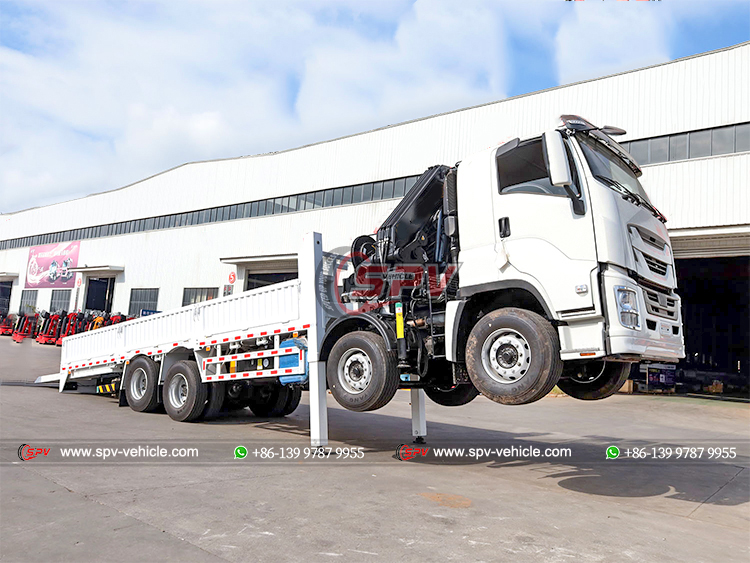

ISUZU 12 Wheels Truck Mounted Crane - Front Right Side

ISUZU 8x4 Hydraulic Articulated Truck Crane - Right Side

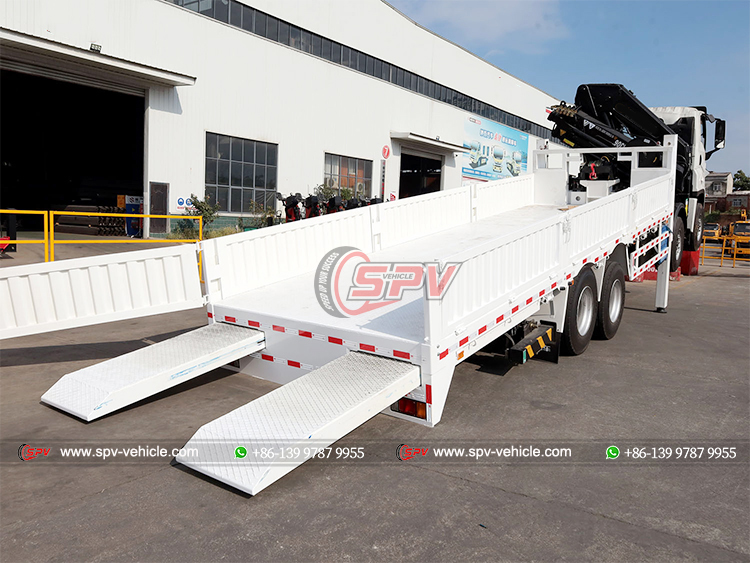

ISUZU 4 Axles Articulated Boom Crane Truck - Rear Right Side

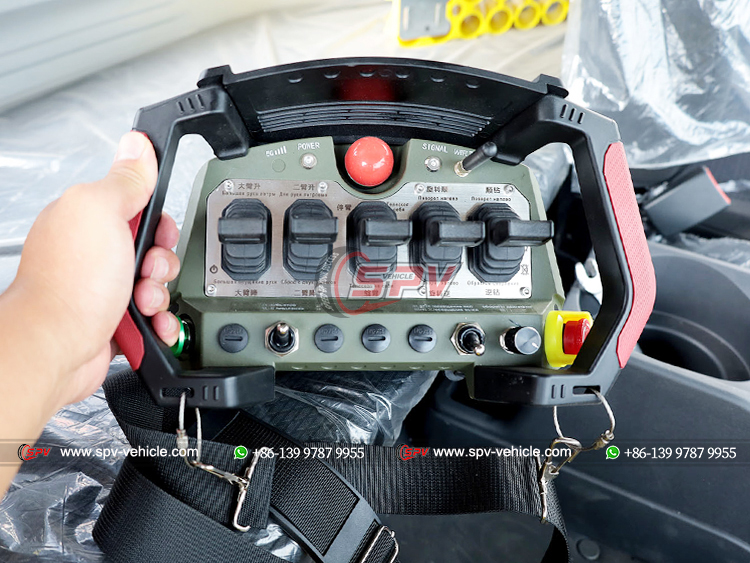

ISUZU Articulated Loader Crane - Operation Panel
