Mobile Crane Truck FOTON
10 Tons Lorry Mounted Crane
Mobile Crane Truck FOTON
Function:
Mobile crane truck (also called mobile crane truck, cranetruck, lorry mounted crane, truck cargo with loader crane, knuckle boom crane on truck chassis, truck with mounted back crane, crane mounted cargo truck, truck with loading crane, boom crane, boom crane truck, articulated crane truck) is used to lift the cargo, load, transport and unload heavy stuff.

There are telescopic boom cranes and knuckle boom cranes, covering a wide range of capacities as follows:
Telescopic Boom Crane: 2Ton, 3.2Ton, 4Ton, 5Ton, 6.3Ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 25Ton
Knuckle Boom Crane: 1Ton, 2Ton, 3.2Ton, 4Ton, 5Ton, 6.3Ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 25Ton.

The cranes can be of famous brands as Palfinger (Canada), Unic (Japan), Tadano (Japan), XCMG (China top brand), Zoomlion, etc.
Features:
---- FOTON chassis ensures perfect driving performance.
---- Shanghai Diesel engine, super powerful; reliable performance.
---- Nice shape, rational structure
---- High strength box body
---- Massive, durable, perfect performance
---- Prolonged service life
---- Premium cranes Palfinger (Canada), Unic (Japan), Tadano (Japan), XCMG (China top brand), Zoomlion, etc.

Crane features:
---- Advanced technology, stable performance, high efficiency
---- Wide and high-speed rotary, convenient operation
---- Unique design, small volume, low noise.
---- Key hydraulic components are of top international technologies, which make the operation safe and reliable.
Specification:


Mobile Crane Truck FOTON (10Tons)
General Vehicle Brand SPV
Chassis Brand FOTON
Overall Dimension 12000 * 2500 * 4000 mm
GVW / Kerb Weight 31,000 kg / 16,500 kg
Cab Cab Capacity 3 persons allowed
Air Conditioner Equipped Air conditioner
Engine Fuel Type Diesel
Engine Brand Shanghai Diesel Engine
Power 280 Hp (206 KW)
Displacement 8270 ml
Emission Standard Euro III
Chassis Drive Type 8X4, left hand drive
Transmission 9-speed front, 1 reverse
Wheelbase/No. of axle 2000+4700+1300 mm / 4
Tyre Specification 11.00-20
Tyre Number 12 tyres and 1 spare tyre
Max Speed 90 km/h
Paint Metallic paint
Superstructure Cargo Box Dimension 8900 X 2300 X 500 mm
Crane Brand XCMG
Max Lifting Capacity 10000 kg
Lifting Capacity
@ Working Radius
10,000 kg @ 2.50 m;
4,400kg @ 5.50 m;
3,200 kg @ 7.00 m;
2,300 kg @ 9.00m;
1,500 kg @ 12.0 m
Max. Lifting Moment 25 T.M
Max. Working Height 14 m
Max. Working Radius 12 m
Slewing Angle 360°all rotation
All other standard accessories: Tool kit, English manual
Optional ** Hydraulic tipper box is optional.
** Box thickness according to requirement.
** Box height could be nominated.

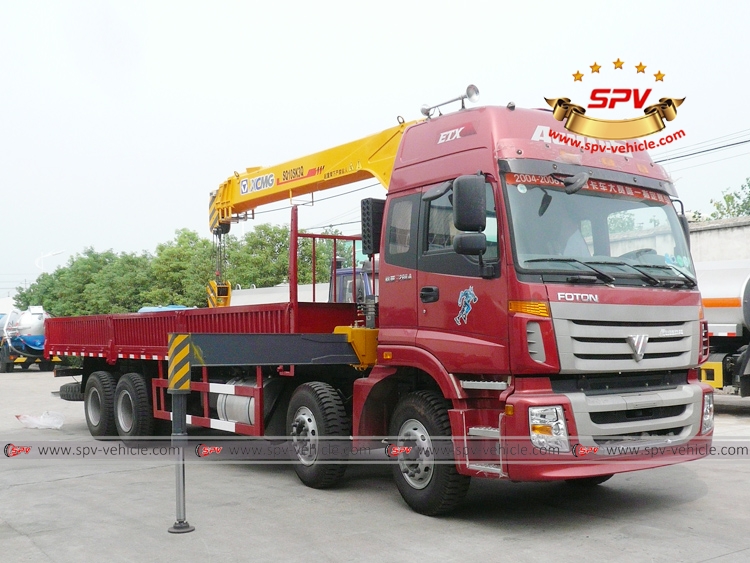

Mobile Crane Truck FOTON - RF
Photo 1: Right front view of FOTON Mobile Crane Truck (10 Tons)


Mobile Crane Truck FOTON - RF - 1
Photo 2: Right front view of FOTON Mobile Crane Truck (10 Tons)

Mobile Crane Truck FOTON - RB
Photo 3: Right back view of FOTON Mobile Crane Truck (10 Tons)

Mobile Crane Truck FOTON - LB
Photo 4: Left back view of FOTON Telescopic Hydraulic Loader (10 Tons) - Red Color

Similar Keywords: lorry mounted crane, crane truck, knuckle pickers, crane mounted lorry, truck cargo with loader crane, knuckle boom crane on truck chassis, knuckle boom truck mounted crane, truck mounted hydraulic crane
