Function:
Truck mounted crane (also called unic crane, cranetruck, lorry mounted crane, truck cargo with loader crane, knuckle boom crane on truck chassis, truck with mounted back crane, crane mounted cargo truck, truck with loading crane, boom crane, boom crane truck, articulated crane truck) is used to lift the cargo, load, transport and unload heavy stuff.
There are telescopic boom cranes and knuckle boom cranes, covering a wide range of capacities as follows:
Telescopic Boom Crane: 2Ton, 3.2Ton, 4Ton, 5Ton, 6.3Ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 25Ton
Knuckle Boom Crane: 1Ton, 2Ton, 3.2Ton, 4Ton, 5Ton, 6.3Ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 25Ton.
The cranes can be of famous brands as Palfinger (Canada), Unic (Japan), Tadano (Japan), XCMG (China top brand), Zoomlion, etc.
Features:
---- ISUZU chassis ensures perfect driving performance.
---- ISUZU engine, super powerful; reliable performance.
---- Nice shape, rational structure
---- High strength box body
---- Massive, durable, perfect performance
---- Prolonged service life
---- Premium cranes Palfinger (Canada), Unic (Japan), Tadano (Japan), XCMG (China top brand), Zoomlion, etc.
Crane features:
---- Advanced technology, stable performance, high efficiency
---- Wide and high-speed rotary, convenient operation
---- Unique design, small volume, low noise.
---- Key hydraulic components are of top international technologies, which make the operation safe and reliable.
Specification:
Similar Key Words: Truck mounted crane, unic crane, crane mounted truck, lorry mounted crane, crane truck, knuckle pickers, crane mounted lorry, truck cargo with loader crane, knuckle boom crane on truck chassis, knuckle boom truck mounted crane, truck mounted hydraulic crane, truck with mounted back crane, crane mounted cargo truck, boom crane
|

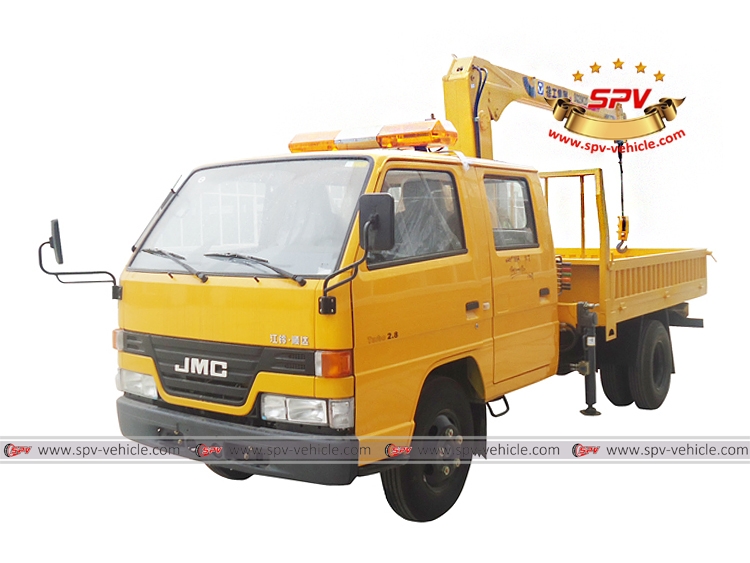

Knuckle Boom Crane truck JMC (3.2Tons Telescopic Boom Crane) |
|
General |
Vehicle Brand |
SPV |
|
Chassis Brand |
JMC |
|
Overall Dimension |
5995 x 2000 x 2870 mm |
|
GVW / Kerb Weight |
6,995 kg / 3,245 kg |
|
Cab |
Cab Capacity |
2 persons allowed |
|
Air Conditioner |
Equipped Air conditioner |
|
Engine |
Fuel Type |
Diesel |
|
Engine Brand |
JMC |
|
Power |
92 Hp (68 KW) |
|
Displacement |
2771 ml |
|
Emission Standard |
Euro III or EuroⅣ |
|
Chassis |
Drive Type |
4X2, left hand drive or right hand drive |
|
Transmission |
5 forward gears and 1 reverse |
|
Wheelbase/No. of axle |
3360mm / 2 |
|
Tyre Specification |
7.00-16 |
|
Tyre Number |
6 tyres and 1 spare tyre |
|
Max Speed |
90 km/h |
|
Paint |
Metallic paint |
|
Superstructure |
Cargo Box Dimension |
3450 X 1790 X 400 mm |
|
Crane Type |
Telescopic boom crane |
|
Max Lifting Capacity |
3200 kg |
|
Slewing Angle |
360°all rotation |
|
All other standard accessories: Tool kit, English manual |
|
Optional |
1. Knuckle boom crane.
2. Hydraulic tipper box.
3. Box thickness according to requirement.
4. Box height could be nominated. |
