Carrier Truck Sinotruk

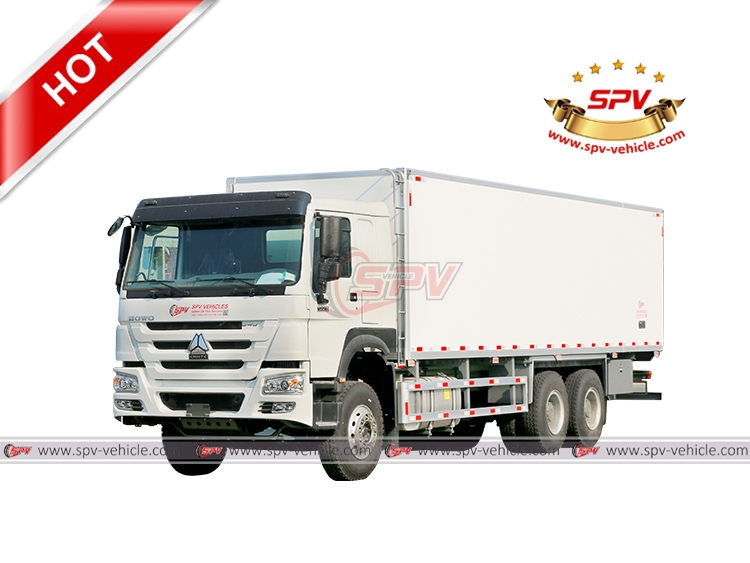

12 Tons Van Truck
Carrier Truck Sinotruk
Function:

Carrier truck (also called van truck, box vehicle, box truck, logistic van truck, box van, cube truck, carrying van lorry, van lorry, goods transport van truck, goods vehicle, closed door truck, dropside door van, dropside van truck, goods carrying truck) is used to transport cargo with closed box. It is very normal and important transport truck.

The material used for van truck body could be corrugated steel, color steel plate, fiberglass, aluminum…

By adding cooling system and polyurethane insulation layer, van truck could be refrigeration truck and carry cargo or food that need be in low temperature.

According to the requirements, it could be single door at rear or side, or double door.

Features:

---- SINOTRUK chassis ensures perfect driving performance.
---- WEICHAI engine, super powerful; reliable performance.
---- Nice shape, rational structure
---- High quality temperature preservation van body
---- Excellent Chinese brand temperature controlled unit or imported cooling system
---- Massive, durable, perfect performance
---- Prolonged service life



Specification:



Carrier Truck SINOTRUK ( 12 - Ton )
General Vehicle Brand SPV
Chassis Brand SINOTRUK
Overall Dimension 11210 * 2500 * 3518 mm
GVW / Kerb Weight 25,000 kg / 12,250 kg
Cab Cab Capacity 2 persons allowed with 1 sleeper
Air Conditioner Air conditioner is equipped
Engine Fuel Type Diesel
Engine Brand WEICHAI engine
Power 300 Hp (250 KW)
Displacement 9726 ml
Emission Standard Euro II
Chassis Drive Type 6X4, left hand drive
Transmission 10-speed forward, 2 reverse
No. of axle 3
Tyre Specification 12.00R20, Radial tyres, super wearable
Tyre Number 10 tyres and 1 spare tyre
Max Speed 90 km/h
Paint Metallic paint
Superstructure Box Capacity 12 Tons
Box Dimension 8500 * 2200 * 2000 mm
Box Material Fiberglass with 80 mm foaming
Doors Two rear doors fully openable and one side door
Bottom Floor Aluminium alloy checked plate(anti-slip) with aluminium ventilation stripes
Accessories Stainless steel locking and hinge
All other standard accessories: Tool kit, English manual……
Optional ** Box material could be aluminum or stainless steel.
** Cooling system could be imported brand.
** Temperature data logger, temperature alarm.
** Extra side door.
** Slide rail and  meat hook for special use.

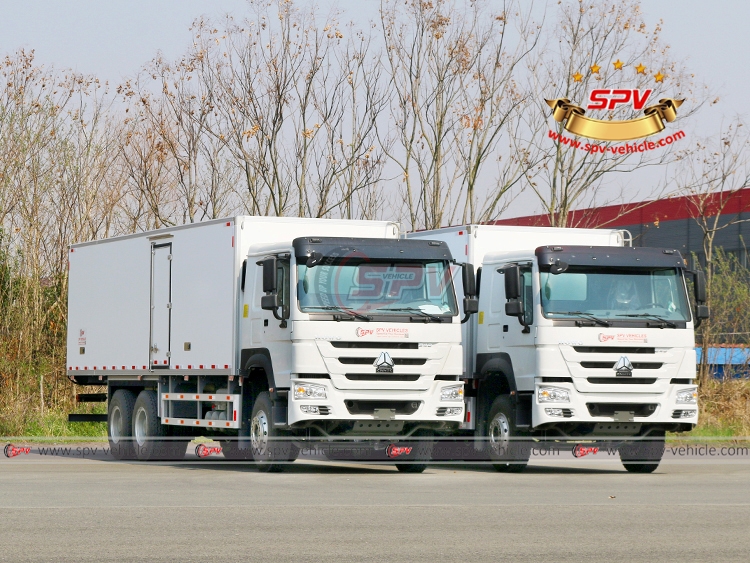

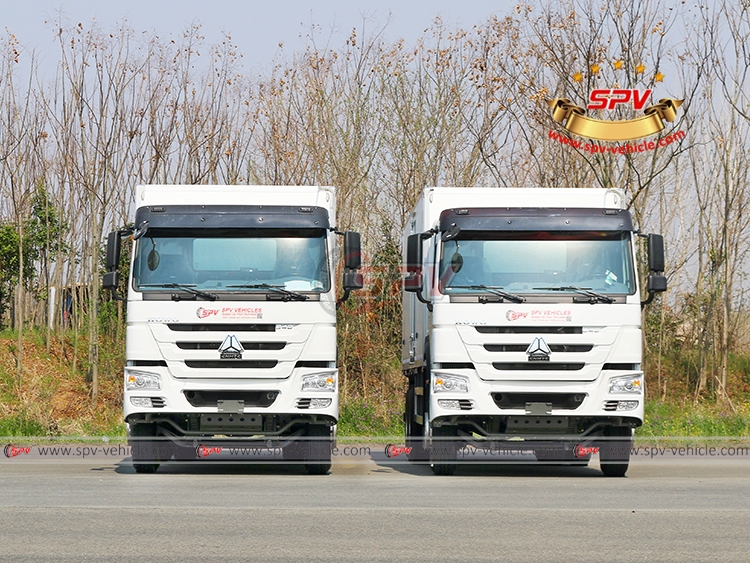

2 Units of Van Trucks Sinotruk - Front Side
2 Units of Van Trucks Sinotruk - Front Side

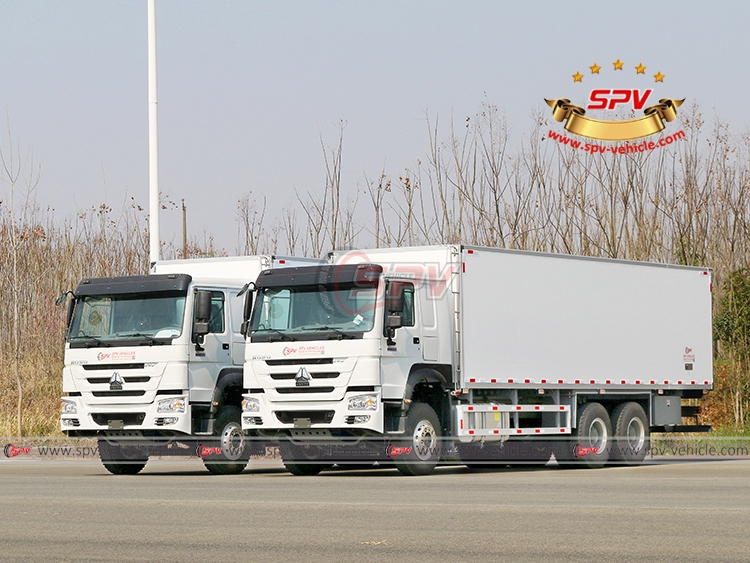

2 Units of Carrier Trucks Sinotruk - Front Left Side
2 Units of Carrier Trucks Sinotruk - Front Left Side

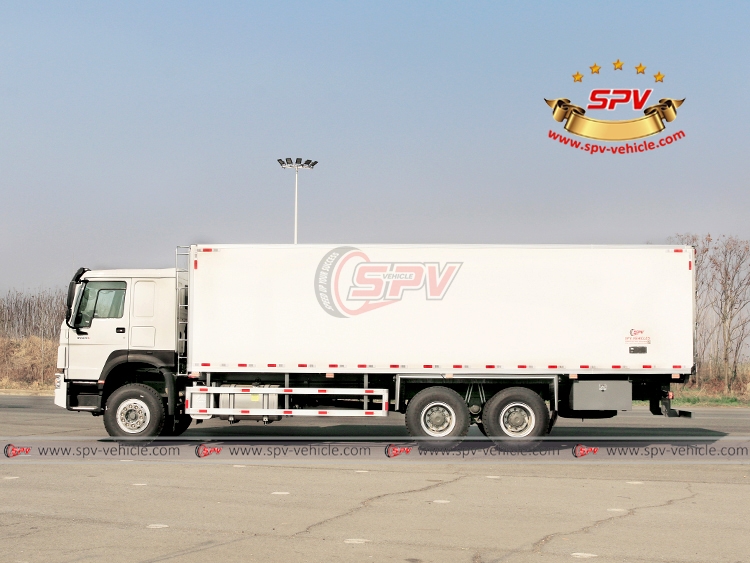

2 Units of Goods Carrying Trucks Sinotruk - Left Side
2 Units of Goods Carrying Trucks Sinotruk - Left Side

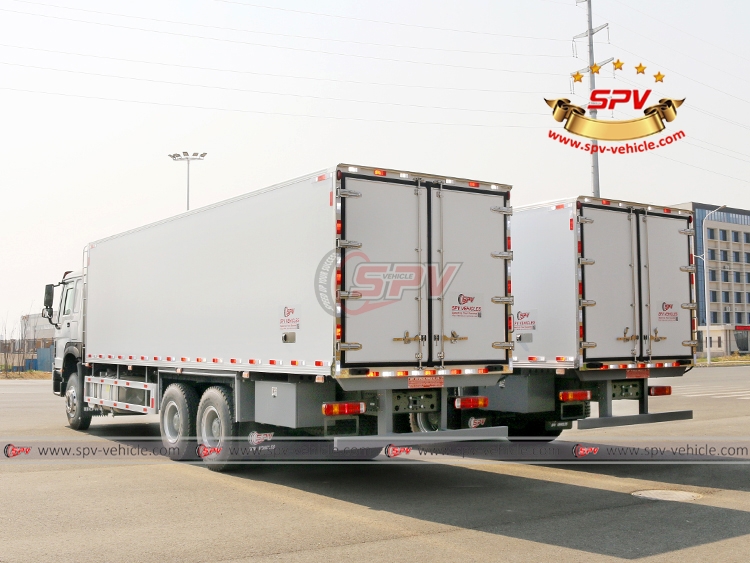

2 Units of Logistic Van Trucks Sinotruk - Rear Left Side
2 Units of Logistic Van Trucks Sinotruk - Rear Left Side

2 Units of Cube Trucks Sinotruk - Front Right Side

2 Units of Cube Trucks Sinotruk - Front Right Side

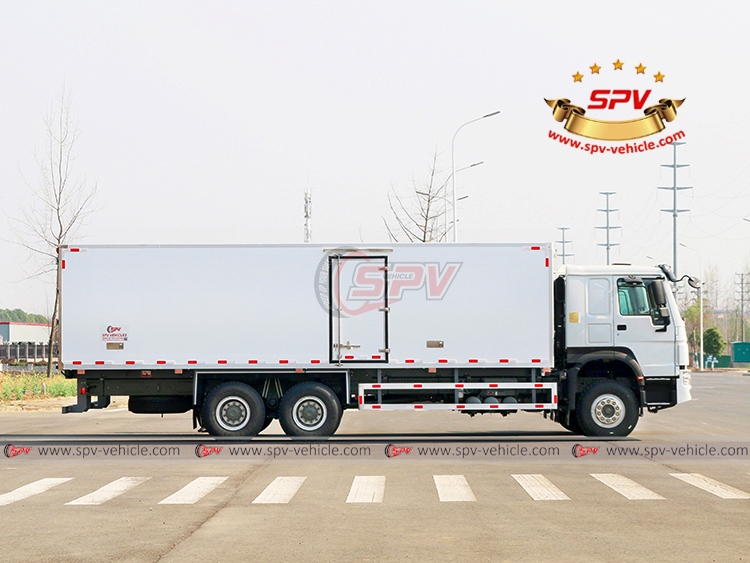

2 Units of Cube Trucks Sinotruk - Right Side
2 Units of Cube Trucks
Sinotruk - Right Side

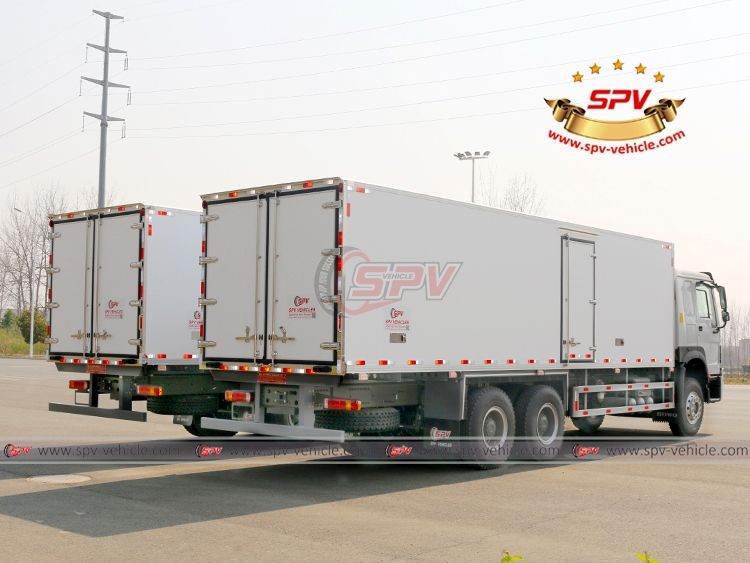

2 Units of Closed Door Trucks Sinotruk - Rear Right Side
2 Units of Closed Door Trucks Sinotruk - Rear Right Side

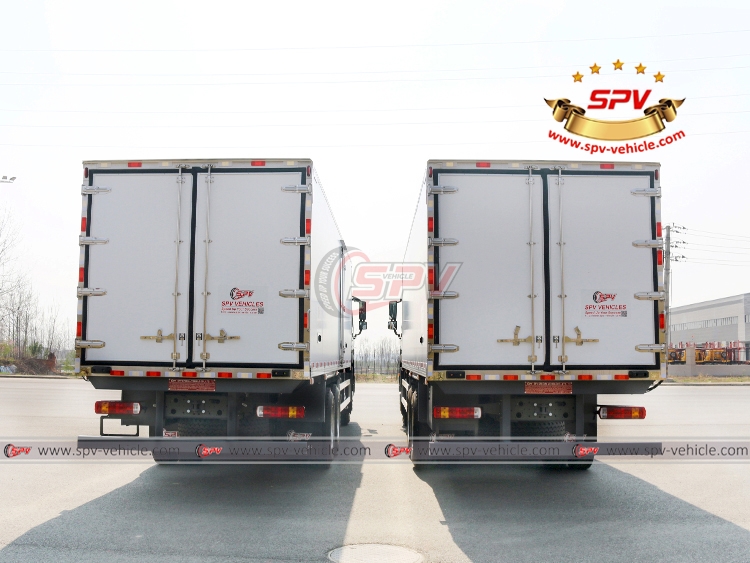

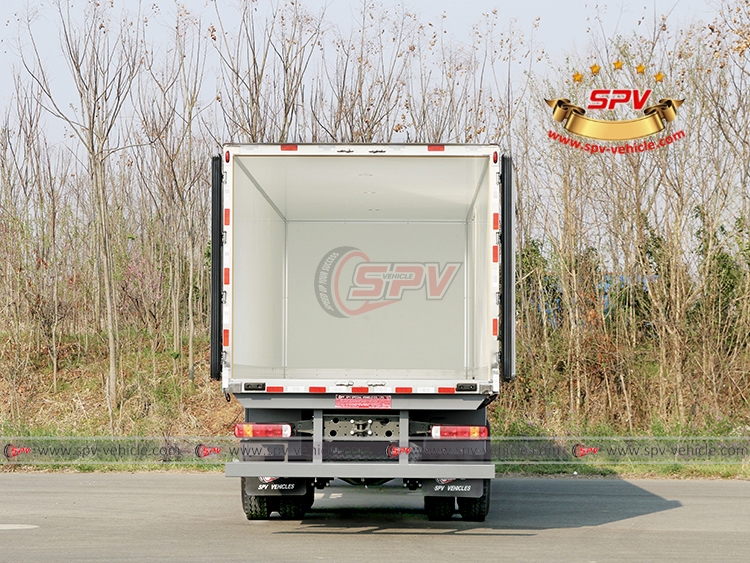

2 Units of Goods Transport lorry Sinotruk - Rear Side
2 Units of Goods Transport lorry Sinotruk - Rear Side

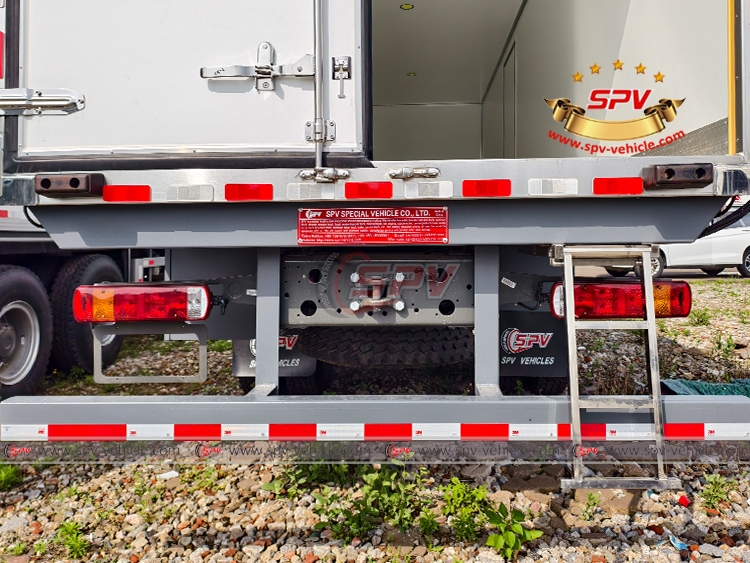

Nameplate Loacation of Van Truck
Nameplate Loacation of Van Truck

Interior Side of Van Box

Interior Side of Van Box

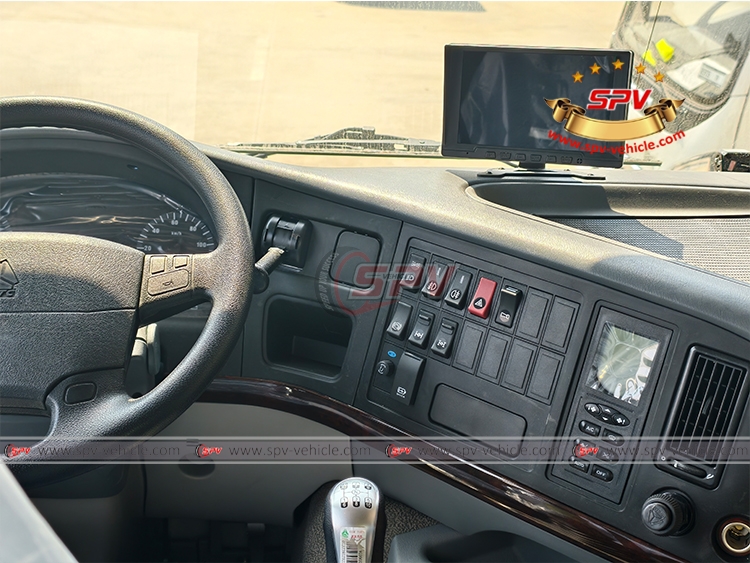

Cabin of Box Truck Sinotruk

Cabin of Box Truck Sinotruk

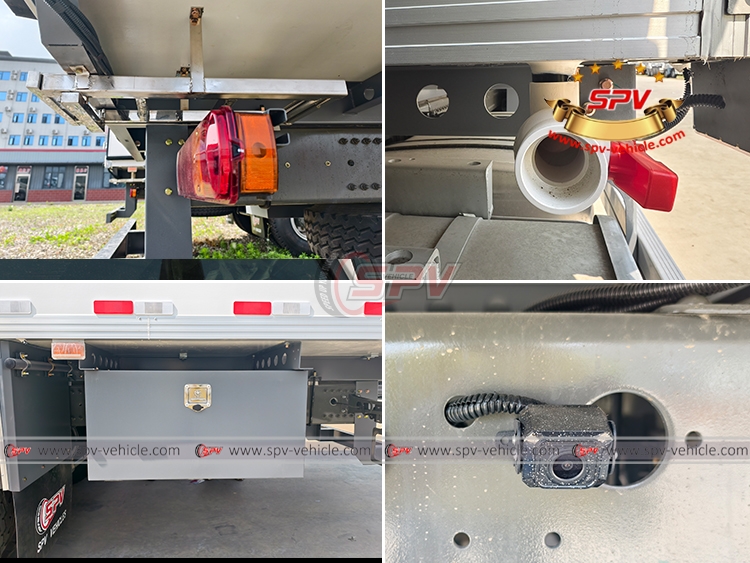

Some Equipments of SPV-Band Van Truck
Some Equipments of SPV-Band Van Truck
