10 Ton Refrigerator Truck Sinotruk, Freezer Wagon, Temperature Controlled Truck from China | SPV
Home > Van Truck > Refrigerator Truck
Refrigerator Truck Sinotruk
10 Ton Freezer Wagon
Refrigerator Truck Sinotruk
Function:

Refrigerator truck (also called refrigerator wagon, refrigerated truck, refrigerated boxcar, freezer vehicle, freezer wagon, temperature controlled truck, refrigerator car, preservation vehicle) is used to carry perishable stuff at specific temperatures.

The cooling device could be of famous brand such as Carrier, Thermoking……

There are two types of power driving ways - one is powered by vehicle engine through PTO, the other is driven by a separately carried power unit.

According to the transport stuff category (fresh or frozen), there are two main lowest temperature unit (-5°and -16°) for your option.

We use high quality van body for temperature reservation. The box surface material could be fiberglass,aluminum or stainless steel. The padding material is polyurethane foam that has super temperature preservation ability with varieties of thickness options.



Features:

---- SINOTRUK chassis ensures perfect driving performance.
---- SINOTRUK engine, super powerful; reliable performance.
---- Nice shape, rational structure
---- High quality temperature preservation van body
---- Excellent Chinese brand temperature controlled unit or imported cooling system
---- Massive, durable, perfect performance
---- Prolonged service life



Specification:



Refrigerator Truck SINOTRUK ( 10 Ton )
General Vehicle Brand SPV
Chassis Brand SINOTRUK
Overall Dimension 8940 * 2580 * 3920 mm
GVW / Kerb Weight 16,000 kg / 8,900 kg
Cab Cab Capacity 2 persons allowed with 1 sleeper
Air Conditioner Air conditioner is equipped
Engine Fuel Type Diesel
Engine Brand SINOTRUK engine
Power 266 Hp (213 KW)
Displacement 9726 ml
Emission Standard Euro II
Chassis Drive Type 4X2, left hand drive or right hand drive
Transmission 10-speed forward, 2 reverse
No. of axle 2
Tyre Specification 12R22.5, Radial tyres, super wearable
Tyre Number 6 tyres and 1 spare tyre
Max Speed 95 km/h
Paint Metallic paint
Superstructure Box Capacity 10 Ton
Box Internal Dimension 5800 * 2400 * 2400 mm
Box Material Fiberglass with 80 mm foaming
Doors Two rear doors fully openable and one side door
Bottom Floor Aluminium alloy checked plate(anti-slip) with aluminium ventilation stripes
Cooling system American brand: Thermo King
Lowest temperature -5°
Accessories Stainless steel locking and hinge
All other standard accessories: Tool kit, English manual……
Optional ** Box material could be aluminum or stainless steel.
** Cooling system could be imported brand.
** Temperature data logger, temperature alarm.
** Extra side door.
** Slide rail and  meat hook for special use.

10 Tons Refrigerator Truck Siontruk - F
Front view of  Refrigerator Truck Sinotruk(10 Tons)

10 Tons Refrigerator Truck Siontruk - LF
Left front view of  Refrigerator Truck Sinotruk(10 Tons)

10 Tons Refrigerator Truck Siontruk - LS
Left side view of  Refrigerator Truck Sinotruk(10 Tons)

10 Tons Refrigerator Truck Siontruk - LB
Left back view of  Refrigerator Truck Sinotruk(10 Tons)

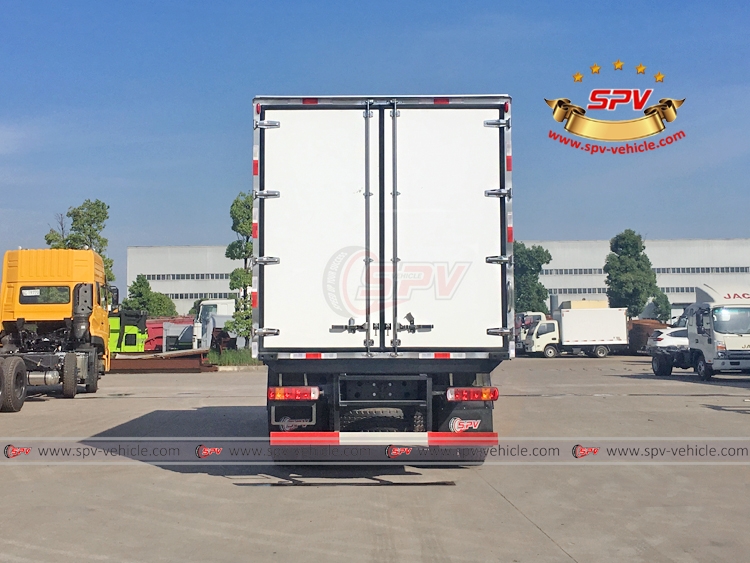

10 Tons Refrigerator Truck Siontruk - B
Back view of  Refrigerator Truck Sinotruk(10 Tons)

10 Tons Refrigerator Truck Siontruk - RF
Right front view of  Refrigerator Truck Sinotruk(10 Tons)

10 Tons Refrigerator Truck Siontruk - RS
Right side view of  Refrigerator Truck Sinotruk(10 Tons)

10 Tons Refrigerator Truck Siontruk - RB
Right back view of  Refrigerator Truck Sinotruk(10 Tons)

*** To Latin Amrica - 3 units Isothermal Van Truck and 1 unit  Van Truck ***


SINOTRUK Isothermal Van Truck and Refrigerator Truck -1

SINOTRUK Isothermal Van Truck and Refrigerator Truck -2

Similar Keywords:  refrigerator wagon, refrigerated truck, refrigerated boxcar, freezer vehicle, freezer wagon, temperature controlled truck, refrigerator car, preservation vehicle, truck refrigeration
