Refrigerator Truck ISUZU
5 Ton Freezer Vehicle
Refrigerator Truck ISUZU
Function:

Refrigerator truck (also called refrigerator wagon, refrigerated truck, refrigerated boxcar, freezer vehicle, freezer wagon, temperature controlled truck, refrigerator car, preservation vehicle) is used to carry perishable stuff at specific temperatures.

The cooling device could be of famous brand such as Carrier, Thermoking……

There are two types of power driving ways - one is powered by vehicle engine through PTO, the other is driven by a separately carried power unit.

According to the transport stuff category (fresh or frozen), there are two main lowest temperature unit (-5°and -16°) for your option.

We use high quality van body for temperature reservation. The box surface material could be fiberglass,aluminum or stainless steel. The padding material is polyurethane foam that has super temperature preservation ability with varieties of thickness options.



Features:

---- ISUZU chassis ensures perfect driving performance.
---- ISUZU engine, super powerful; reliable performance.
---- Nice shape, rational structure
---- High quality temperature preservation van body
---- Excellent Chinese brand temperature controlled unit or imported cooling system
---- Massive, durable, perfect performance
---- Prolonged service life



Specification:
Refrigerator Truck ISUZU ( 5 Ton )
General Vehicle Brand SPV
Chassis Brand ISUZU
Overall Dimension 6660 * 2220 * 3150 mm
GVW / Kerb Weight 7,300 kg / 3,400 kg
Cab Cab Capacity 2 persons allowed
Air Conditioner Air conditioner is equipped
Engine Fuel Type Diesel
Engine Brand ISUZU engine
Power 130 Hp (95 KW)
Displacement 2999 ml
Emission Standard Euro V
Chassis Drive Type 4X2, left hand drive
Transmission 5-speed forward, 1 reverse
No. of axle 2
Tyre Specification 7.00R16
Tyre Number  6 tyres and 1 spare tyre
Max Speed 100 km/h
Paint Metallic paint
Superstructure Box Capacity 5 Ton
Box Material Interior and external suiface: Fiberglass;
Insulated layer; total thickness: 8 cm
Cooling system Thermo King
Lowest temperature  -18°
All other standard accessories: Tool kit, English manual……
Optional ** Box material could be aluminum or stainless steel.
** Cooling system could be imported brand.
** Temperature data logger, temperature alarm.
** Extra side door.
** Slide rail and  meat hook for special use.

Refrigerator Truck ISUZU - LF 1
Left Front View of Refrigerator Truck ISUZU

Refrigerator Truck ISUZU - RF
Right Front View of Refrigerator Truck ISUZU

Refrigerator Truck ISUZU - RB
Right Back View of Refrigerator Truck ISUZU

Refrigerator Truck ISUZU - B 1
Back View of
Refrigerator Truck ISUZU

Refrigerator Truck ISUZU - B
Refrigerator Truck ISUZU - Box Inside

Refrigerator Truck ISUZU - F
Front View of Refrigerator Truck ISUZU

Refrigerator Truck ISUZU - LF
Left Front View of Refrigerator Truck ISUZU

Refrigerator Truck ISUZU - LS
Left Side View of Refrigerator Truck ISUZU

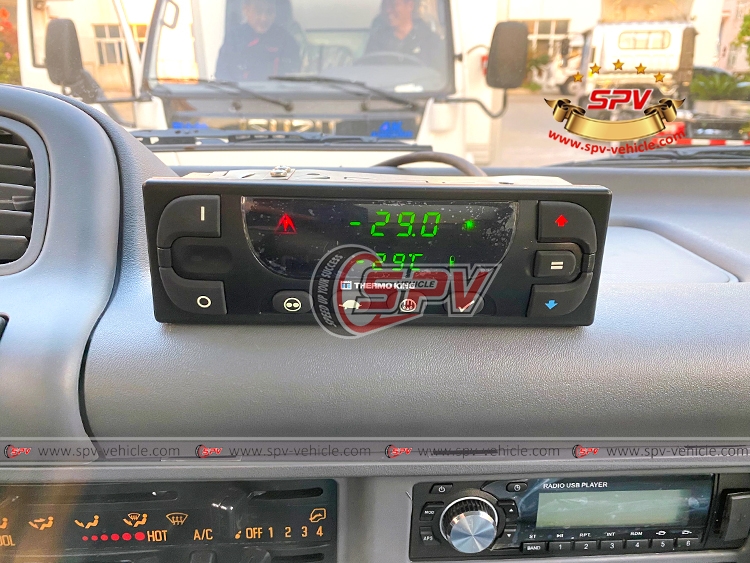

Refrigerator Truck ISUZU - Temperature Pannel
Refrigerator Truck ISUZU - Temperature Control Pannel
