Refeer Wagon Sinotruk
2-4 Ton Freezer Truck
Refeer Wagon Sinotruk
Function:

Refeer wagon (also called refrigerator wagon, refrigerated truck, refrigerated boxcar, freezer vehicle, freezer wagon, temperature controlled truck, refrigerator car, preservation vehicle) is used to carry perishable stuff at specific temperatures.

The cooling device could be of famous brand such as Carrier, Thermoking……

There are two types of power driving ways - one is powered by vehicle engine through PTO, the other is driven by a separately carried power unit.

According to the transport stuff category (fresh or frozen), there are two main lowest temperature unit (-5°and -16°) for your option.

We use high quality van body for temperature reservation. The box surface material could be fiberglass,aluminum or stainless steel. The padding material is polyurethane foam that has super temperature preservation ability with varieties of thickness options.



Features:

---- SINOTRUK chassis ensures perfect driving performance.
---- Weichai engine, super powerful; reliable performance.
---- Nice shape, rational structure
---- High quality temperature preservation van body
---- Excellent Chinese brand temperature controlled unit or imported cooling system
---- Massive, durable, perfect performance
---- Prolonged service life



Specification:



Refeer Wagon SINOTRUK ( 2-4 Ton )
General Vehicle Brand SPV
Chassis Brand SINOTRUK
Overall Dimension 5995 * 2600 * 3325 mm
GVW / Kerb Weight 4,495 kg / 2,700 kg
Cab Cab Capacity 2 persons allowed
Air Conditioner Air conditioner is equipped
Engine Fuel Type Diesel
Engine Brand Weichai engine
Power 160 Hp (118 KW)
Displacement 2970 ml
Emission Standard Euro VI
Chassis Drive Type 4X2, left hand drive or right hand drive
Transmission 6-speed forward, 1 reverse
No. of Axles 2
Tyre Specification 7.50R16LT, Radial tyres, super wearable
Tyre Number 6 tyres and 1 spare tyre
Max Speed 95 km/h
Paint Metallic paint
Superstructure Box Capacity 2-4 Ton
Box Internal Dimension 4200 * 2300 * 2300 mm
Box Material Fiberglass with 80 mm foaming
Doors Two rear doors fully openable and one side door
Bottom Floor Aluminium alloy checked plate(anti-slip) with aluminium ventilation stripes
Cooling system Thermo King/Carrier/Kexue/Xinhuatai
Lowest temperature -5°
Accessories Stainless steel locking and hinge
All other standard accessories: Tool kit, English manual……
Optional ** Box material could be fibreglass, aluminum or stainless steel.
** Refrigerator brand: International brand such as: Thermo King, Carrier; Chinese top brand : Kexue, Hanxue, Xinhuatai, Bingsen as well......
** Refrigerator type: non-independent and independent type.

** Temperature data logger, printer and temperature alarm.
** Slide rail and  meat hook for special use.
** Extra side door.

** Backup system: Tail lift 1 ton, 1.5 tons......

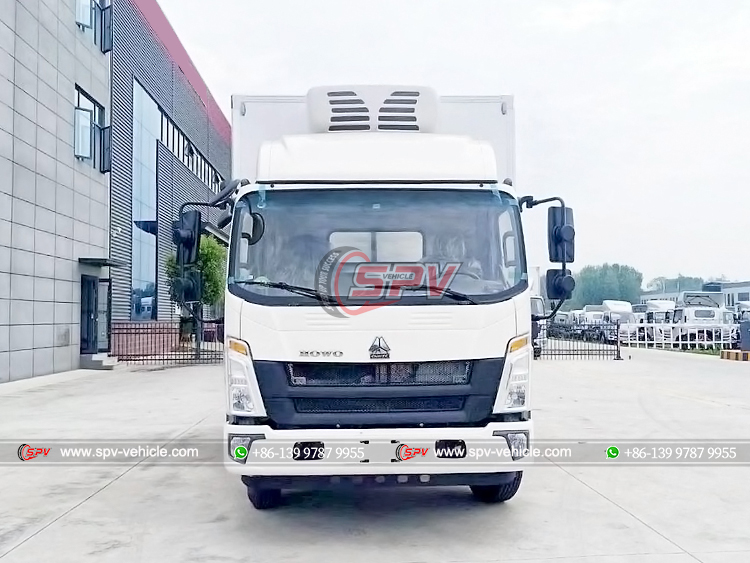

Howo 4X2 Temperature Control Truck - Front Side
Howo 4X2 Temperature Control Truck - Front Side

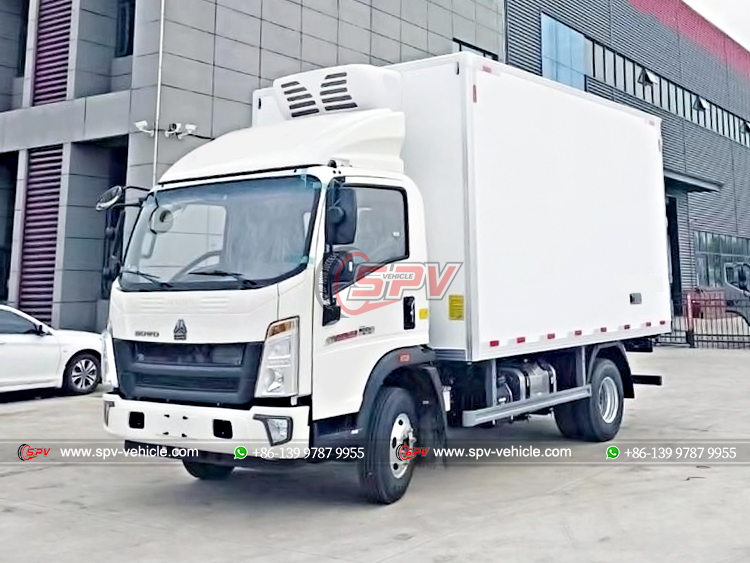

Sinotruk Freezer Van Truck - Front Left Side

Sinotruk Freezer Van Truck - Front Left Side

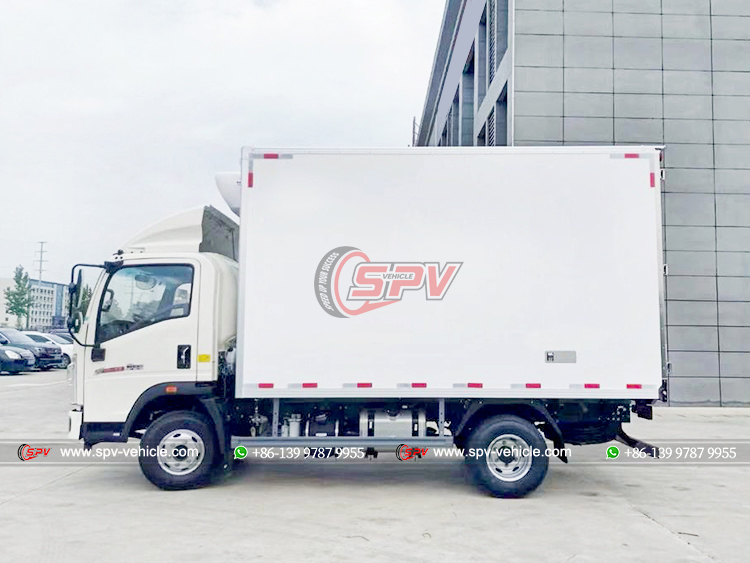

Sinotruk Cold Chain Truck - Left Side
Sinotruk Cold Chain Truck - Left Side

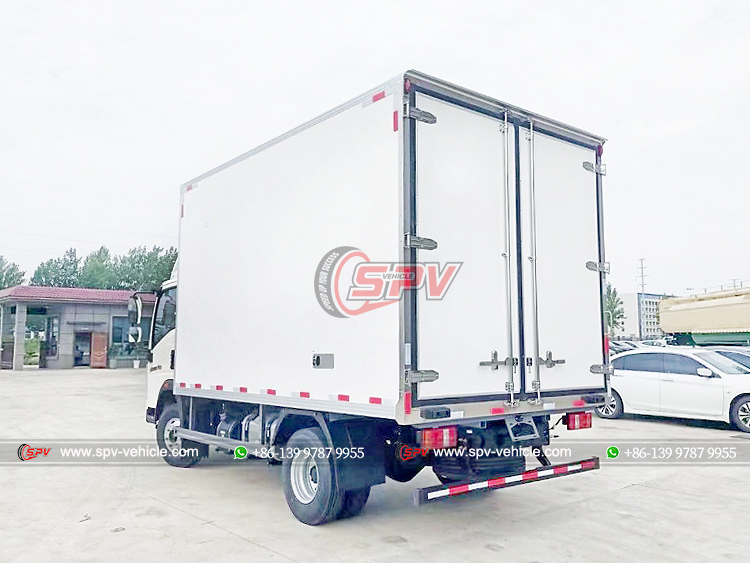

Sinotruk 4X2 Light Reefer Lorry - Rear Left Side
Sinotruk 4X2 Light Reefer Lorry - Rear Left Side

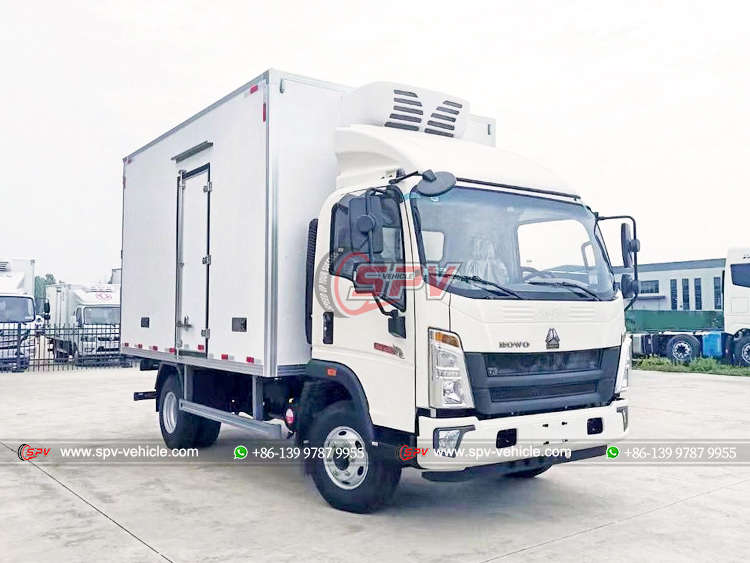

Sinotruk 2 ton Chiller Box Lorry - Front Right Side

Sinotruk 2 ton Chiller Box Lorry - Front Right Side

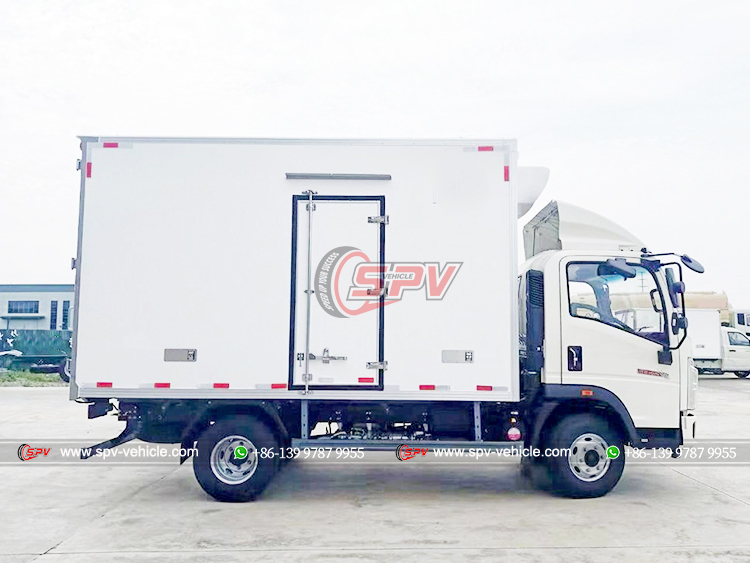

Sinotruk Light Duty Fresh Foods Transport Truck - Right

Sinotruk Light Duty Fresh Foods Transport Truck - Right

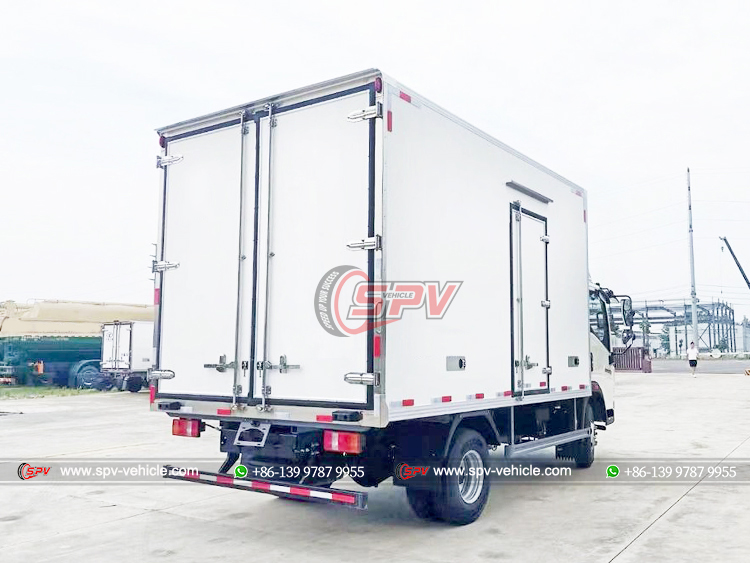

Howo Seafood Carrying Truck - Rear Right Side
Howo Seafood Carrying Truck - Rear Right Side

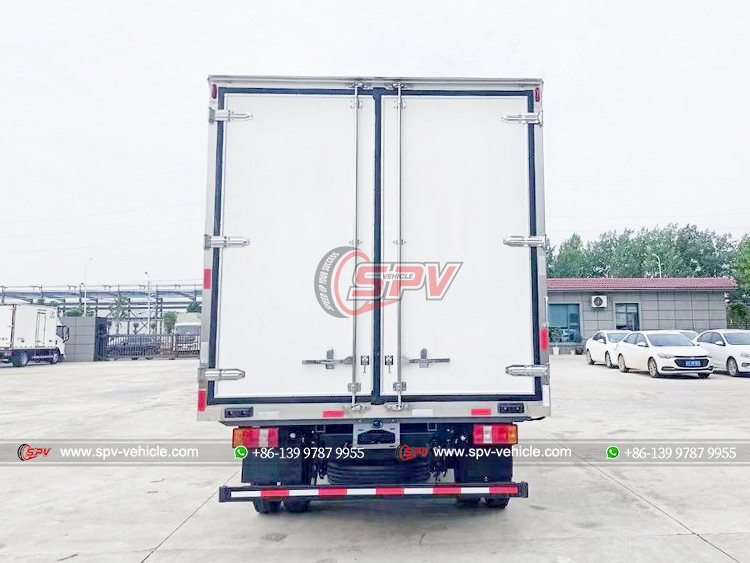

Sinotruk 4x2 Cooling Truck for Fresh Food - Rear Side

Sinotruk 4x2 Cooling Truck for Fresh Food - Rear Side
