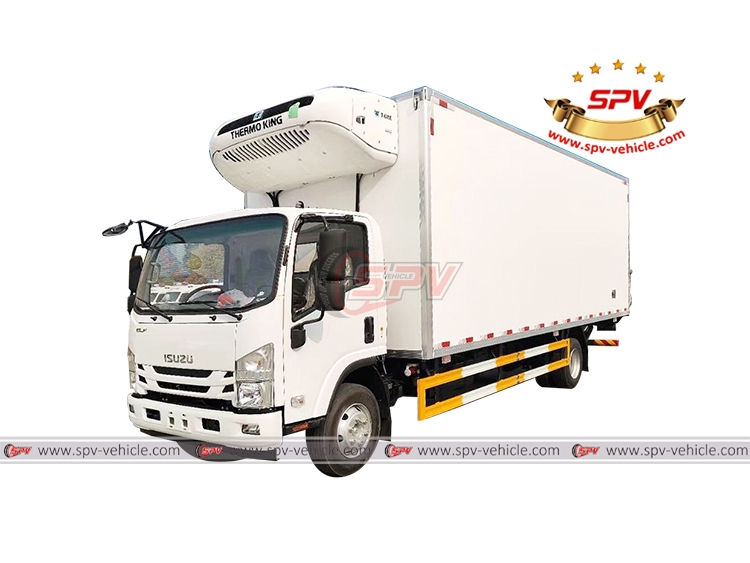

Reefer van truck (also called refrigerator wagon, refrigerated truck, refrigerated boxcar, freezer vehicle, freezer wagon, temperature controlled truck, refrigerator car, preservation vehicle, chiller truck, reefer truck, cold truck, coller van truck) is used to carry perishable stuff at specific temperatures.
The cooling device could be of famous brand such as Carrier, Thermo king……
There are two types of power driving ways - one is powered by vehicle engine through PTO, the other is driven by a separately carried power unit.
According to the transport stuff category (fresh or frozen), there are two main lowest temperature unit (-5°and -20°) for your option.
We use high quality van body for temperature reservation. The box surface material could be fiberglass,aluminum or stainless steel. The padding material is polyurethane foam that has super temperature preservation ability with varieties of thickness options.
---- ISUZU chassis ensures perfect driving performance.
---- ISUZU engine, super powerful; reliable performance.
---- Nice shape, rational structure
---- High quality temperature preservation van body
---- Excellent Chinese brand temperature controlled unit or imported cooling system
---- Massive, durable, perfect performance
---- Prolonged service life
Reefer Van Truck ISUZU ( 4 Ton ) | ||
General | Vehicle Brand | SPV |
Chassis Brand | ISUZU | |
Overall Dimension | 7800 * 2500 * 3700 mm | |
GVW / Kerb Weight | 9,140 kg / 5,055 kg | |

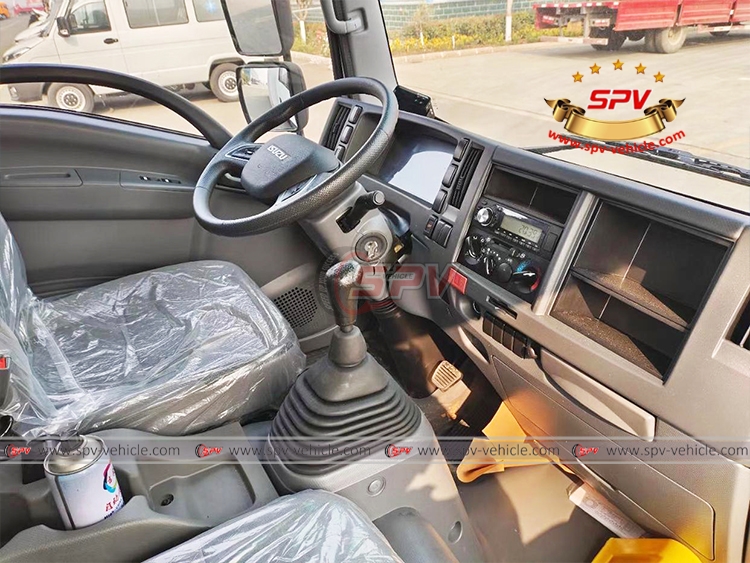

Cab | Cab Capacity | 3 persons allowed |
Air Conditioner | Air conditioner is equipped | |
Engine | Fuel Type | Diesel |
Engine Brand | ISUZU engine | |
Power | 190 Hp (140 KW) | |
Displacement | 5193 ml | |
Emission Standard | Euro V | |
Chassis | Drive Type | 4X2, left hand drive, power assisted steering |
Transmission | ISUZU manual 6-speed forward, 1 reverse | |
No. of axle | 2 | |
Tyre Specification | 235/75R17.5 | |
Tyre Number | 6 tyres and 1 spare tyre | |
Max Speed | 90 km/h | |
Paint | Automative metallic paint | |
Superstructure | Box Capacity | 4 Ton |
Box Internal | 5600*2200*2100mm | |
Box Material | Sandwich type, inside and outside fibreglass with 78mm polyurethane foaming, with aluminium trimming | |
Van Doors | Two rear doors, fully openable and one side door | |
Refrigerator Machine |
World famous Thermo King brand, indpendent diesel engined driving, with electric standby and in cabin control Refrigerant: R-404A
|
|
Van Inside |
Double Temperature
Movable partition inside container divided by equal compartment with temperature control to maintain first compartment -18°C and second compartment 0°C to +5°C, digital controller inside the driver cabin, Polar curtains with stainless steel rail, hooks for the door and Drain points with tap shall be provided. Lights.
|
|
Lowest temperature | -20° | |
All other standard accessories: Tool kit, English manual…… | ||
Optional |
** Box material could be aluminum or stainless steel. ** Cooling system could be imported brand. ** Temperature data logger, temperature alarm. ** Extra side door. ** Slide rail and meat hook for special use. |
