Reefer Van ISUZU w/ Stream Dome
4 Tons Cold Truck w/ Air Deflector
Reefer Van ISUZU w/ Stream Dome
Function:

Reefer truck (also called refrigerator wagon, chiller truck, frozen wagon, seafood truck, fresh food truck, cooling food truck, refrigerated truck, refrigerated boxcar, freezer vehicle, freezer wagon, temperature controlled truck, refrigerator car, preservation vehicle, icream transport truck, food transport truck, fish transport truck, cooling room truck, meat food carring truck, beef frozen van truck, seafood frozen cargo truck, milk van cargo truck) is used to carry perishable stuff at specific temperatures.


The cooling device could be of famous brand such as Carrier, Thermoking……

There are two types of power driving ways - one is powered by vehicle engine through PTO, the other is driven by a separately carried power unit.

According to the transport stuff category (fresh or frozen), there are two main lowest temperature unit (-5°and -16°) for your option.

We use high quality van body for temperature reservation. The box surface material could be fiberglass,aluminum or stainless steel. The padding material is polyurethane foam that has super temperature preservation ability with varieties of thickness options.



Features:

---- ISUZU chassis ensures perfect driving performance.
---- ISUZU engine, super powerful; reliable performance.
---- Nice shape, rational structure
---- High quality temperature preservation van body
---- Excellent Chinese brand temperature controlled unit or imported cooling system
---- Massive, durable, perfect performance
---- Prolonged service life



Specification:
Reefer Truck ISUZU ( 4 Tons )
General Vehicle Brand SPV
Chassis Brand ISUZU
Overall Dimension 6365 * 2300 * 3210 mm
GVW / Kerb Weight 7,300 kg / 3,530 kg
Cab Cab Capacity 3 persons allowed
Air Conditioner Air conditioner is equipped
Engine Fuel Type Diesel
Engine Brand ISUZU engine
Power 120 Hp (87 KW)
Displacement 2999 ml
Emission Standard Euro VI
Chassis Drive Type 4X2, left hand drive
Transmission 5-speed forward, 1 reverse
No. of axle 2
Tyre Specification 7.00R16LT
Tyre Number  6 tyres and 1 spare tyre
Max Speed 95 km/h
Paint Metallic paint
Superstructure Box Capacity 4 Tons
Box Material Interior and external suiface: Fiberglass;
Insulated layer; total thickness: 8 cm
Cooling system Thermo King
Lowest temperature  -21°
All other standard accessories: Tool kit, English manual……
Optional ** Box material could be aluminum or stainless steel.
** Cooling system could be imported brand.
** Temperature data logger, temperature alarm.
** Extra side door.
** Slide rail and  meat hook for special use.

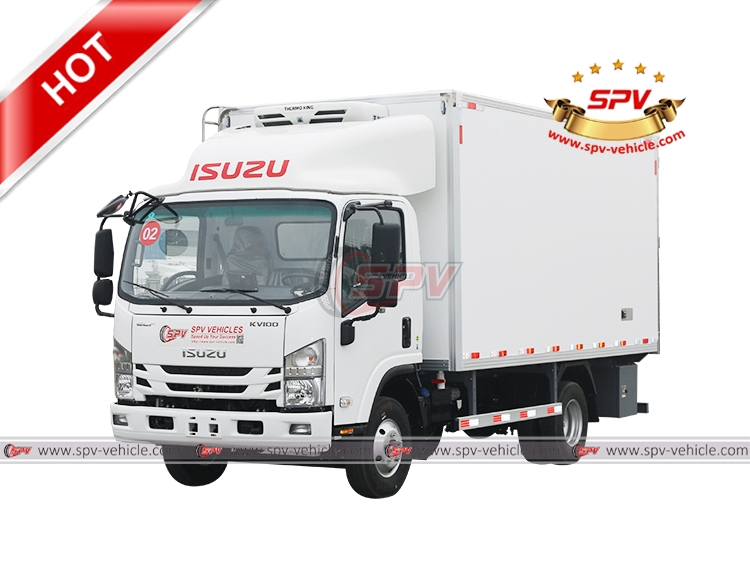

4 Tons Reefer Truck ISUZU - Front Side View
4 Tons Reefer Truck ISUZU - Front Side View

4 Tons Cooling Van Truck ISUZU - Left Front Side View
4 Tons Cooling Van Truck ISUZU - Left Front Side View

4 Tons Chiller Van Truck ISUZU - Left Side View
4 Tons Chiller Van Truck ISUZU - Left Side View

4 Tons Freezer Truck ISUZU - Left Back Side View
4 Tons Freezer Truck ISUZU - Left Back Side View

4 Tons Cold Room Truck ISUZU - Right Front Side View
4 Tons Cold Room Truck ISUZU - Right Front Side View

4 Tons Temperature Control Truck ISUZU - Right Side View
4 Tons Temperature Control Truck ISUZU - Right Side View

4 Tons Seafood Carrying Truck ISUZU - Right Back Side View
4 Tons Seafood Carrying Truck ISUZU - Right Back Side View

4 Tons Refrigerator Vehicle ISUZU - Rear Side View
4 Tons Refrigerator Vehicle ISUZU - Rear Side View


4 Units of Refrigerated Van Trucks ISUZU To One of Central Asia Country

Reefer Van Truck Equipped With Door Curtains

Reefer Van Truck Equipped With Door Curtains

Internal Display of ISUZU Refrigerated Truck
Internal Display of ISUZU Refrigerated Truck
