Watering Truck ISUZU 6X4
18 m³ Water Spray Truck
Watering Truck ISUZU 6X4
Function:

Watering truck (also called water spary truck, water sprinkler truck, ISUZU greening water sprinkler, water spray truck, ISUZU dust control truck, Multi-functional Dust Suppression Truck ISUZUwater transport truck, reduce dust truck, ISUZU watering truck, mining spray truck, dust reduce truck, ) is a special vehicle for efficient washing operations. It is suitable for washing operations in urban roads, highways, squares, and mine area, etc, as well as municipal and landscaping watering operations.


Water tanker can be equipped with special sprayers to achieve front flush, rear sprinkle, side spray, to sprinkle and clean the roads, streeets for environmental sanitation and protection, called as water sprinkler, water spray truck.
With rear working platform and high cannon, the Water lorry can also be used to water the plants, even high trees in virescence, called as watering truck.

Water bowser can be also equipped with pesticide spraying machine, to be used to spray pesticide in agriculture pest control field.

Features:
---- ISUZU chassis, perfect performance
---- ISUZU engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Nice shape, rational structure
---- Water pump super powerful, efficient pump in and out
---- Strong, durable, perfect performance
---- Prolonged service life
Specification:
Watering Truck ISUZU GIGA 6X4 (18,000 Litres)
General Vehicle Brand SPV
Chassis Brand ISUZU
Overall Dimension 12000 * 2500 * 3200 mm
GVW / Kerb Weight 25,000kg / 12,800 kg
Cab Cab Capacity 2 persons allowed
Air Conditioner W/ air conditioner
Engine Fuel Type Diesel
Engine Brand ISUZU engine
Power 380 Hp (278 KW)
Displacement 9839 ml
Emission Standard Euro VI
Chassis Drive Type 6X4, left hand drive
Transmission ISUZU manual, 12-speed forward, 2 reverse
No. of Axles 3
Tyre Specification 315/80R22.5
Tyre Number 10 tyres and 1 spare tyre
Max Speed 90 km/h
Paint Metallic paint
Superstructure Tank Capacity 18,000 Litres ( About 4,800gallons)
Tank Material Carbon steel
Flow Speed 1000 litres / min
Lift 90 m
Suction Head 6 m
Hose High quality PVC hose, anti-aging
All other standard accessories: manhole, ladder, inlet, discharge…….
Optional ** Tank material could be stainless steel or carbon steel with non-toxic treatment for potable water, safe for human body.

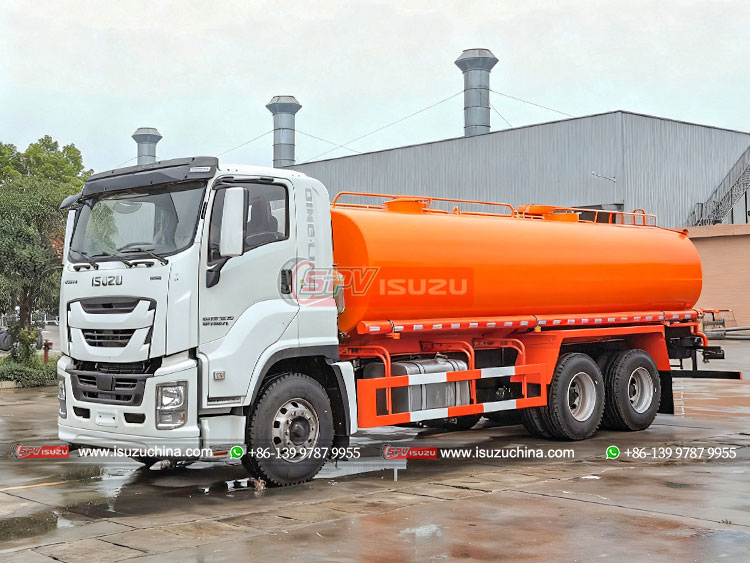

ISUZU GIGA 6X4 Water Truck with  Spraying System - Front Left Side
ISUZU GIGA 6X4 Water Truck with  Spraying System - Front Left Side

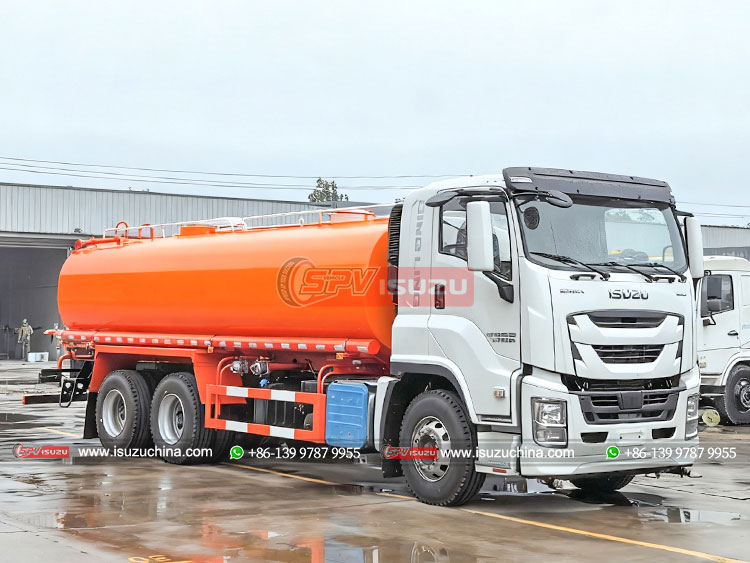

ISUZU GIGA Heavy-duty Watering Truck - Front Right Side

ISUZU GIGA Heavy-duty Watering Truck - Front Right Side

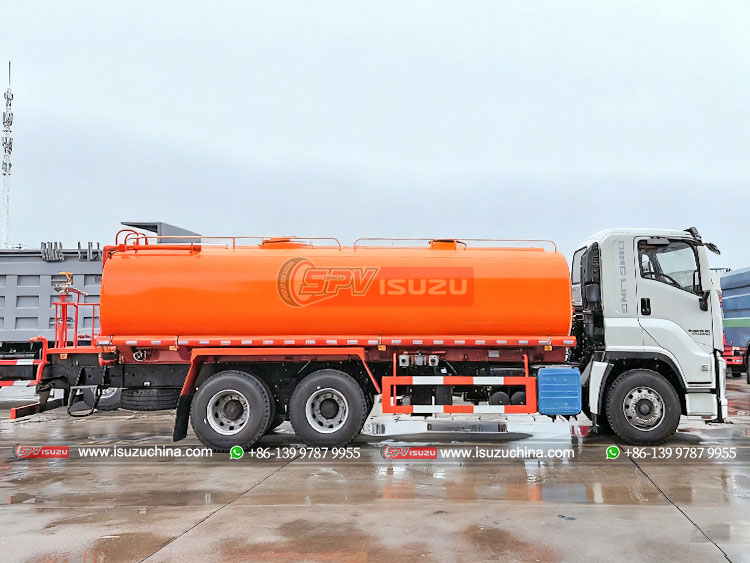

ISUZU GIGA Greening Spray Truck - Right Side
ISUZU GIGA Greening Spray Truck - Right Side

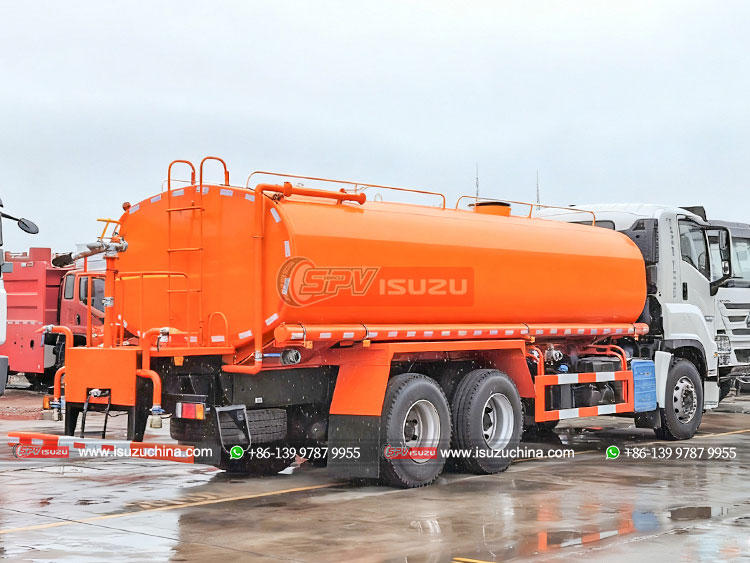

ISUZU GIGA 10 Wheels Water Sprinkler Truck - Rear Right Side

ISUZU GIGA 10 Wheels Water Sprinkler Truck - Rear Right Side
