ShangHai SPV Special Vehicle Co., Ltd.

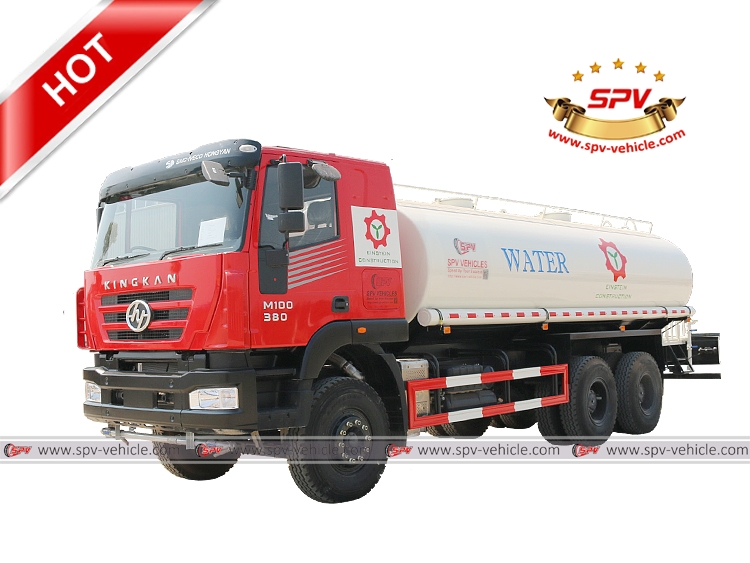

Water spraying truck (also called water truck tank, water distribution truck, truck water tank, truck tanker, water tanker bowser, water tank lorry, irrigation water truck, water transport truck) is used to transport and supply water, whatever industrial or agriculture water, widely used in construction engineering, farm irrigation, draught relief, etc.
With non-toxic treatment inside tank or tank made of stainless steel, the water tank truck can be suitable for transporting drinking water, called as potable water tanker, drinking water tanker, stainless steel water tanker, agua potavel, safe to human body.
Water tanker can also be equipped with special sprayers to achieve front flush, rear sprinkle, side spray, to sprinkle and clean the roads, streeets for environmental sanitation and protection, called as water sprinkler, water spray truck.
With rear working platform and high cannon, the Water lorry can also be used to water the plants, even high trees in virescence, called as watering truck.
Water bowser can be also equipped with pesticide spraying machine, to be used to spray pesticide in agriculture pest control field.
---- IVECO CURSOR engine, super powerful; reliable performance.
---- Nice shape, rational structure
---- Special fire pump, super powerful, efficient pump in and out
---- Strong, durable, perfect performance
---- Prolonged service life
Similar Keywords: IVECO water camion, water truck tank, water carrying truck, truck mounted water tank, mobile water tank, vehicle for watering plant, water truck for dust control
| Water Spraying Truck IVECO (20,000 litres) | ||
| General | Vehicle Brand | SPV |
| Chassis Brand | IVECO | |
| Overall Dimension | 10080 * 2550 * 3050 mm | |
| GVW / Kerb Weight | 25,000 kg / 13,680 kg | |
| Cab | Cab Capacity | 3 persons allowed |
| Air Conditioner | W/ air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | IVECO Cursor engine | |
| Power | 380 Hp (280 KW) | |
| Displacement | 8709 ml | |
| Emission Standard | Euro III | |
| Chassis | Drive Type | 6X4, right hand drive |
| Transmission | 12-speed front, 2 reverse | |
| Wheelbase/No. of axle | 4300+1400 mm / 3 | |
| Tyre Specification | 12.00R20 | |
| Tyre Number | 10 tyres and 1 spare tyre | |
| Max Speed | 80 km/h | |
| Paint | Metallic paint | |
| Superstructure | Tank Capacity | 20,000 Litres ( About 5,300gallons) |
| Tank Material & Structure | Carbon steel, Inner baffles inside tank for prevention of longitudinal surge during moving. | |
| Water Pump | Chinese top water pump, PTO driven. | |
| Tank Interior Treatment | Anti-corrosion treatment | |
| Hose | High quality strengthened hoses, 6 m X 2 pcs, with aluminum coupling. | |
| Optional | ** Tank material could be stainless steel or carbon steel with non-toxic treatment for potable water, safe for human body. | |
Photo 1: To Malawi - 2 units of Water Spraying Trucks IVECO - Right front view
Photo 2: To Malawi - 2 units of Water Spraying Trucks IVECO - Right back view
Photo 3: To Malawi - 2 units of Water Spraying Trucks IVECO - Left front view
Photo 4: To Malawi - 2 units of Water Spraying Trucks IVECO - Left back view
Photo 5: To Malawi - 2 units of Water Spraying Trucks IVECO - Back view
Photo 6: Front view of Water Spraying Trucks IVECO(Right hand drive)
Photo 7: Left side view of Water Spraying Trucks IVECO(Right hand drive)
Photo 8: Left back view of Water Spraying Trucks IVECO(Right hand drive)
Photo 9: Right front view of Water Spraying Trucks IVECO(Right hand drive)
Photo 10: Right side view of Water Spraying Trucks IVECO(Right hand drive)
Photo 11: Right back view of Water Spraying Trucks IVECO(Right hand drive)
Photo 12: Front Flushing Function Testing - IVECO Water Spraying Truck
Photo 13: Ride Spraying Function Testing - IVECO Water Spraying Truck
Photo 14: Rear Spraying Function Testing - IVECO Water Spraying Truck
Photo 15: Water Cannon Spraying Function Testing - IVECO Water Spraying Truck
Photo 16: Water Cannon Shooting Function Testing - IVECO Water Spraying Truck
Photo 17: Detail view of Water Spraying Trucks IVECO(Right hand drive)
*** To Malawi in 2018 - Water Spraying Truck IVECO and 4 units of Dump Truck IVECO (Right hand drive) ***
To Malawi - 5 units of IVECO Trucks ( water spraying truck and dump truck)
To Malawi - 5 units of IVECO Trucks ( water spraying truck and dump truck)
To Malawi - 5 units of IVECO Trucks ( water spraying truck and dump truck)
Loading into RORO vessel - 5 units of IVECO Trucks ( water spraying truck and dump truck)
*** To Malawi in 2016 - 2 units of Water Spraying Truck IVECO and 4 units of Dump Truck IVECO (Right hand drive) ***
*** To Sierra Leone in 2015 - Potable Water Truck IVECO (Left hand drive) ***
