ShangHai SPV Special Vehicle Co., Ltd.
Powder vacuum truck (also called street sweep vacuum truck, leaf vacuum truck, stone chips collection truck, coconut collection truck, dust vacuum truck, municipal vehicle, dust removal truck, road sweep vacuum truck, street cleaner sweeper and cleaning truck, street cleaning vehicle) is suitable for suction and transportation of dusts, leaves, mud, soil, sand, stone chips, gravels and other small particles on the ground of city roads and areas. This unit shall be suitable for dry type cleaning job as well as dust suppression with water spray in the road side and narrow lanes.
The street vacuum truck is composed of chassis, auxiliary engine, air blower, magnetic valve, debris bin, water bin, sweeping system, suction system, water sprinkling system, hydraulic system, electrical control system, etc.
---- JMC chassis, perfect performance.
---- JMC engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Dustbin and water tank are made of stainless steel, corrosion-resistant, durable.

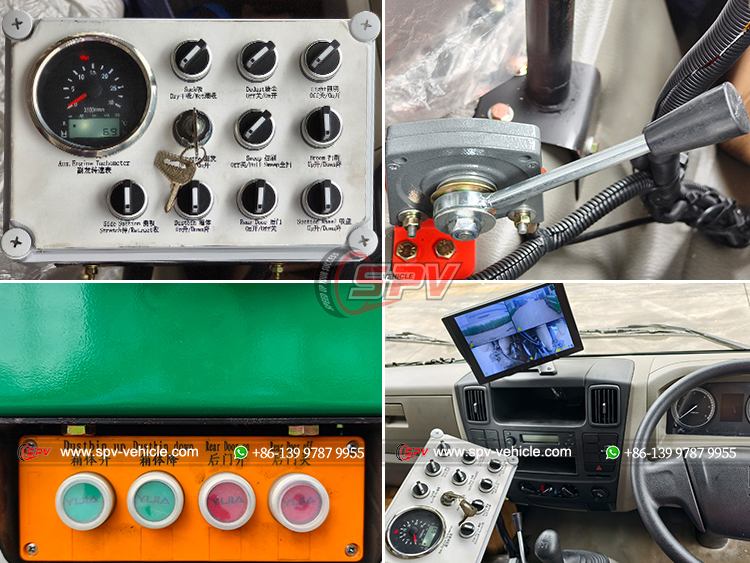

---- All electronic control integrated inside the cabin, convenient operation.
---- Noise reduction to minimize disturbance to urban life.

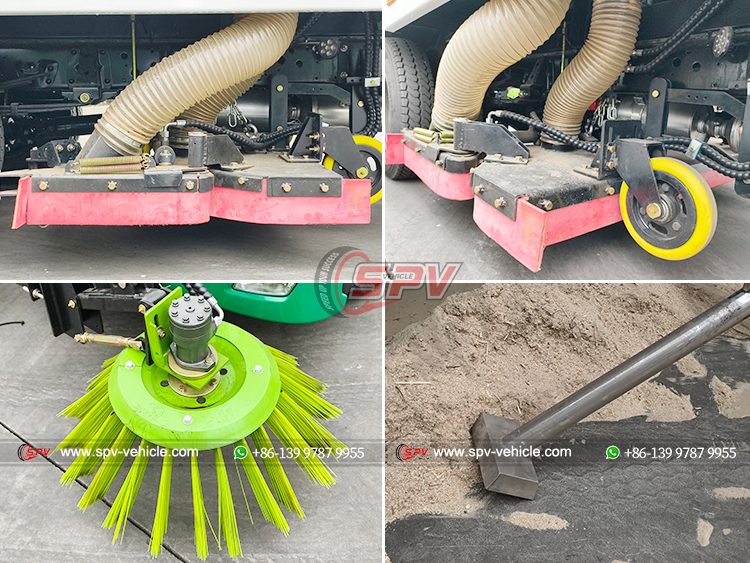

---- Suction nozzle is floating type, self-adjustable for different road condition.
---- Air blower is special for road sweeper, high efficient, low noise, wearable.
Similar Keywords: street cleaning vehicle, street sweeper, sweeper and cleaning truck, municipal vehicle, road sweeper, cleaning truck
|

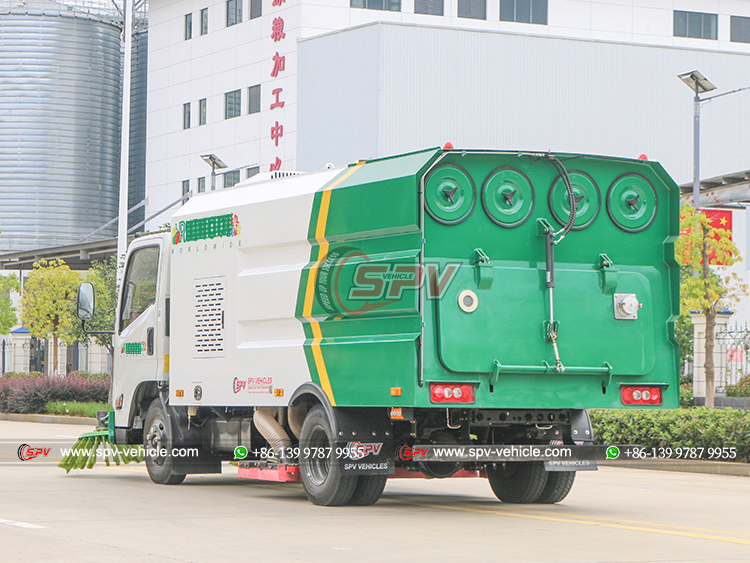

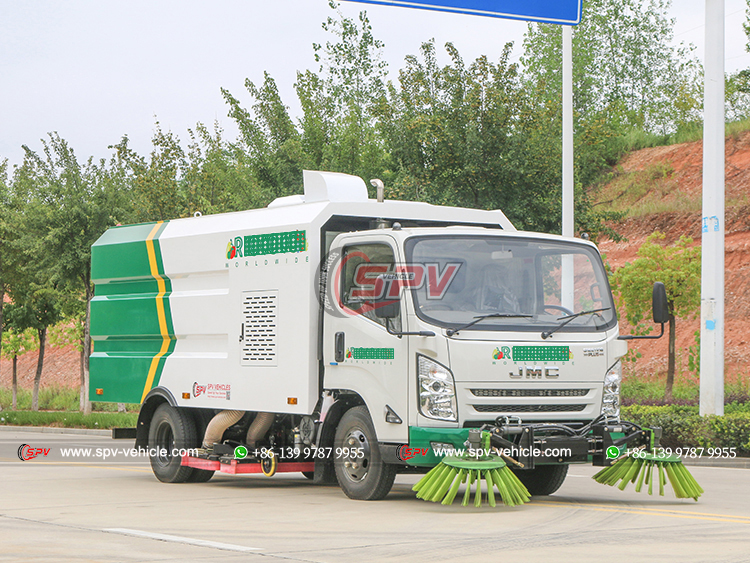

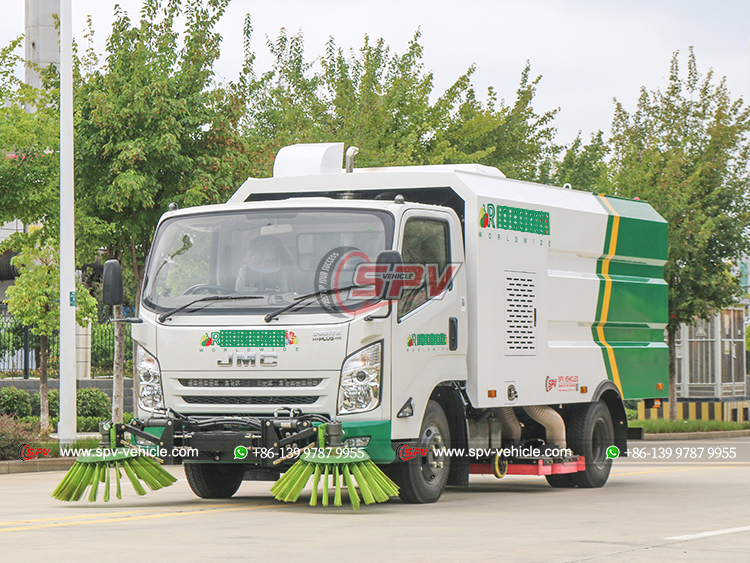

Powder Vacuum Truck JMC ( 5 CBM Duct Collection Truck ) |
||
| General | Vehicle Brand | SPV |
| Chassis Brand | JMC | |
| Overall Dimension | 7000 * 2100 * 2430 mm | |
| GVW / Kerb Weight | 7,300kg / 5,300kg | |
| Cab | Cab Capacity | 3 persons allowed |
| Air Conditioner | W/ air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | JMC | |
| Power | 109 Ps (80 KW) | |
| Displacement | 2771 ml | |
| Emission Standard | Euro IV | |
| Chassis | Drive Type | 4X2, left hand drive |
| Transmission | JMC manual, 5-speed forward, 1 reverse | |
| No. of axle | 2 | |
| Tyre Specification | 7.00R16.5 LT 10PR | |
| Tyre Number | 6 tyres and 1 spare tyre | |
| Max Speed | 100 km/h | |
| Paint | Metallic paint | |
| Superstructure | Dustbin Material | Stainless Steel |
| Dustbin Capacity | 5 CBM | |
| Sweeping Capacity | 45,000 - 90,000 m2/h | |
| Sweeping Speed | 3-25 km/h | |
| Max Sweeping Width | 2800 - 3200 mm | |
| Brooms | 2 sets at each side | |
| Vacuum |
Created by powerful air blower driven by
auxiliary engine
|
|
| Suctions |

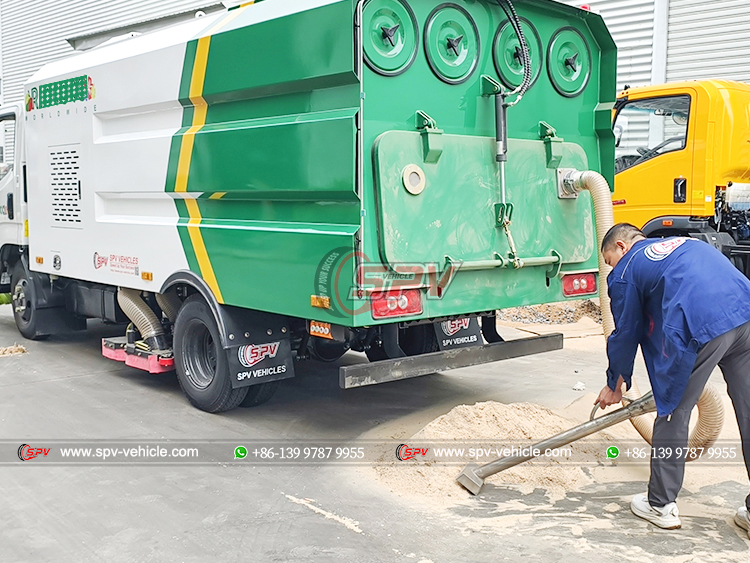

Wet suction and dry suction Middle suctions |
|
| All standard accessories: Warning lights, music alarm, basic tool kit, English manual…… | ||
| Optional |
** Backup alarm can be equipped. ** Camera can be equipped. ** Air blower can be of stainless steel. |
|
