ShangHai SPV Special Vehicle Co., Ltd.
sewage vacuum truck (also called truck mounted sewage vacuum cleaner, vacuum cleaner truck, vacuum suction tanker, vacuum waste collection truck, sewage suction truck, waste water truck, waster liquid disposal truck, sewage vacuum truck, waste vacuum tanker, sewer truck, cesspit emptier, gully emptier etc.) is used to collect, transport and discharge liquid such as dirty water, sludge, septic, crude oil, and solid stuff such as small stones, bricks as well. It is suitable for cleaning the sewer, cesspit, cesspool, gully, etc. It is widely used in environment and sanitation field.
SPV vacuum tank capacity ranges from 3,000 litres to 20,000 litres…..

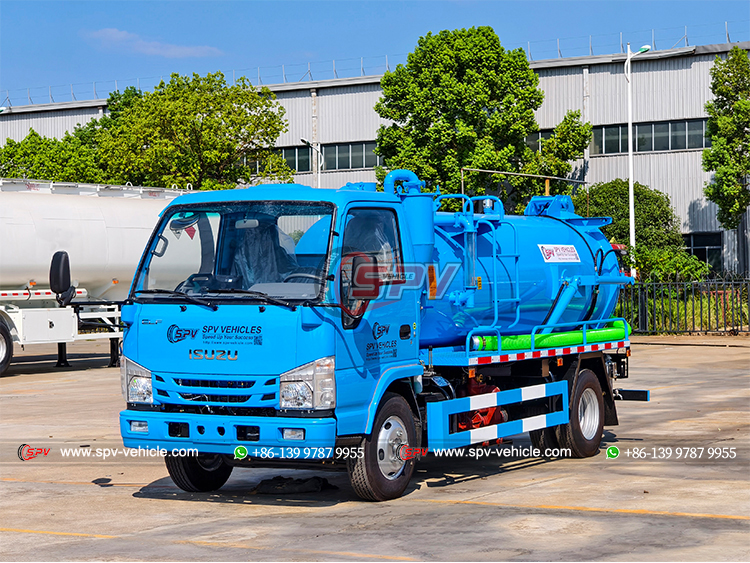

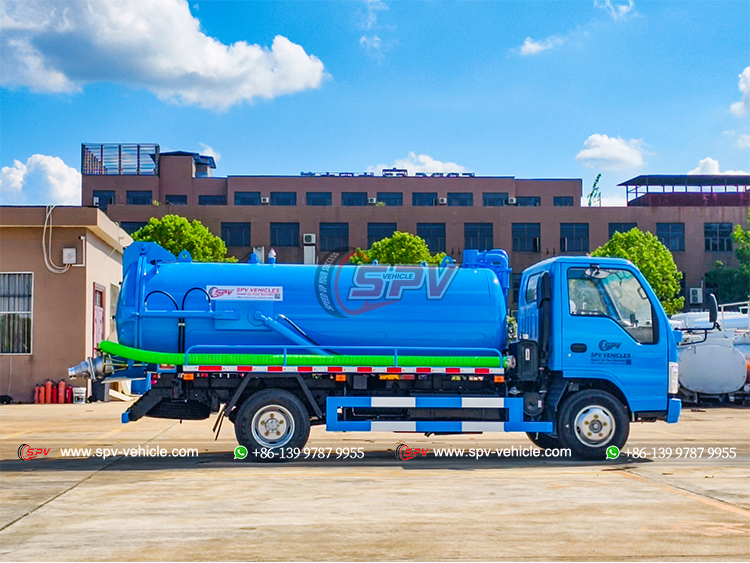

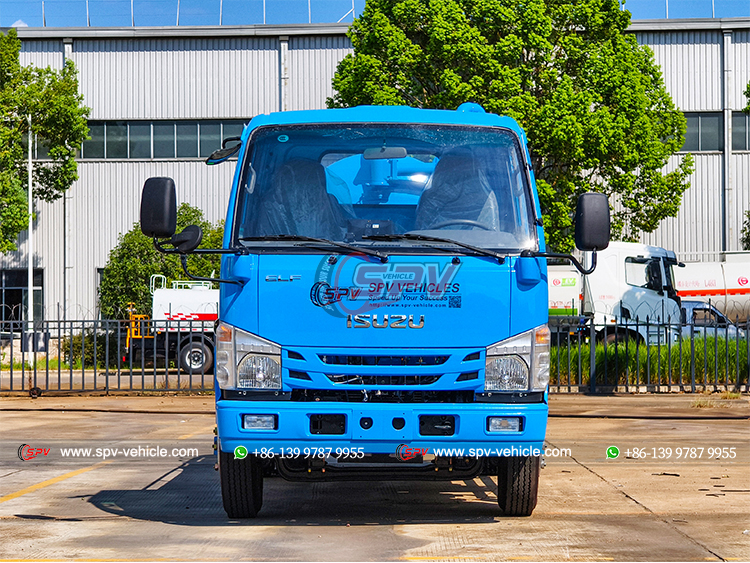

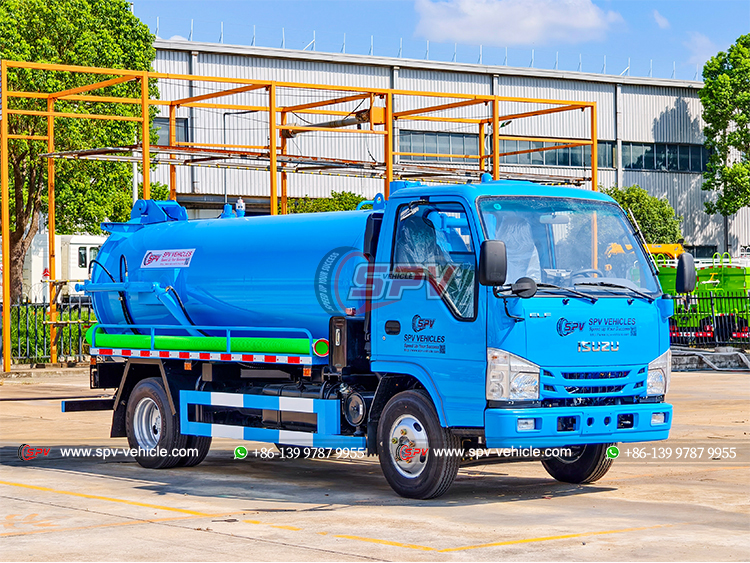

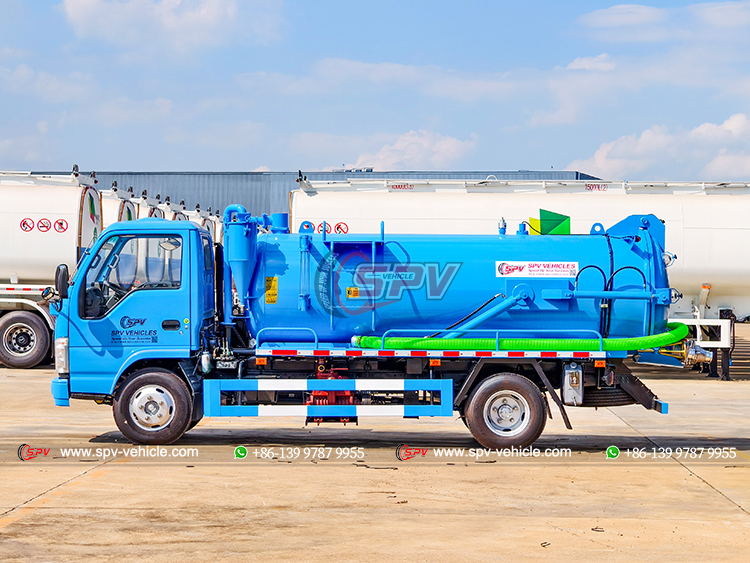

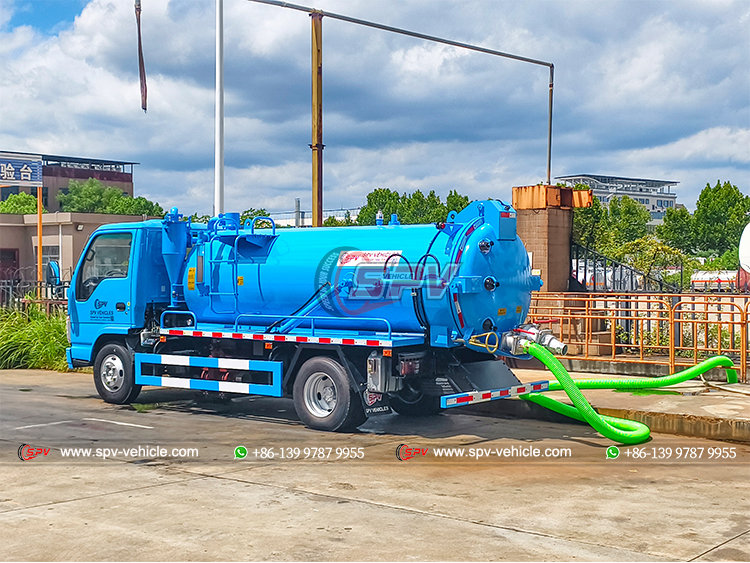

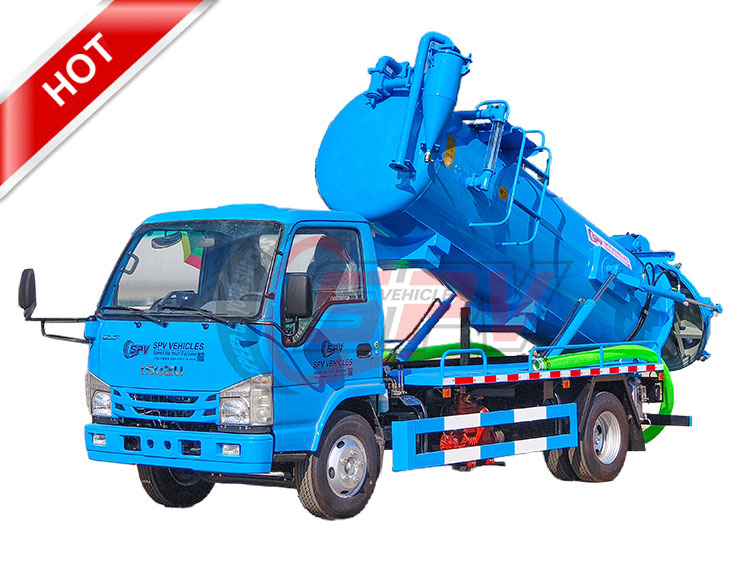

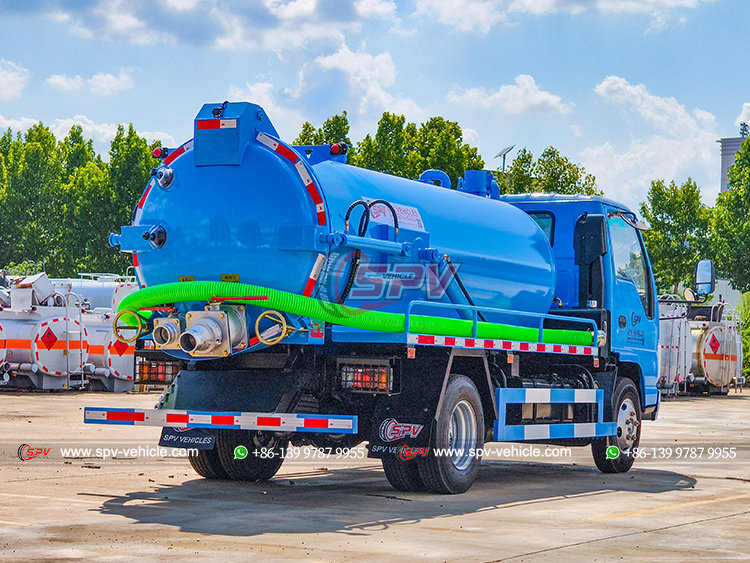

| Sewage Vacuum Truck ISUZU （4 m³） | ||
| General | Vehicle Brand | SPV |
| Chassis Brand | ISUZU | |
| Overall Dimension | 6200 x 2000 x 2400 mm | |
| GVW / Kerb Weight | 7,300 kg / 4,150 kg | |
| Cab | Cab Capacity | 3 persons allowed |
| Air Conditioner | Air conditioner equipped | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU | |
| Power | 120 HP / 130HP (88 KW / 96KW) | |
| Displacement | 2999 ml | |
| Emission Standard | Euro IV | |
| Chassis | Drive Type | 4X2, left hand drive |
| Transmission | ISUZU Manual, 5 forward,1 reverse | |
| No. of Axles | 2 | |
| Tyre Specification | 7.00R16 | |
| Tyre Number | 6 tyres and 1 spare tyre | |
| Max Speed | 100 km/h | |
| Paint | Metallic paint | |
| Superstructure | Vacuum Tank Capacity | 4 m³ |
| Tank Material | Mild steel | |
| Suction Head | 6 m | |
| Vacuum Pump | High efficiency, vacuum rare up to 93%, quick suction and discharge | |
| Suction Hose | High quality, wire strength hose | |

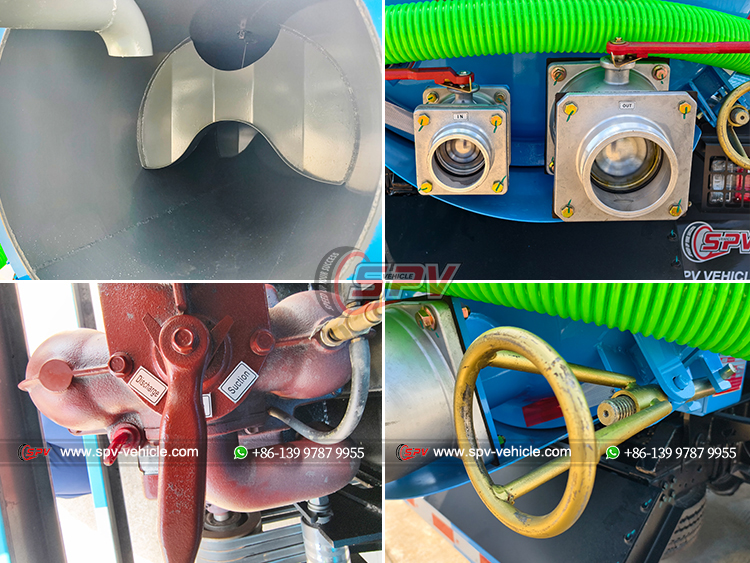

| Install vacuum Pump drive by engine through PTO, hydraulic system, multi-way valve, pressure gauges, water-gas separator, oil-gas separator, oil tank reservoir, level inspection window and suction hose. | ||

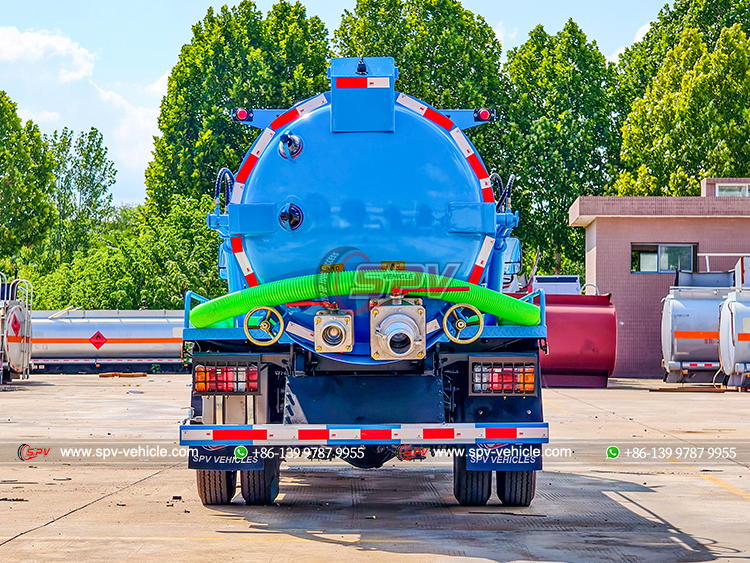

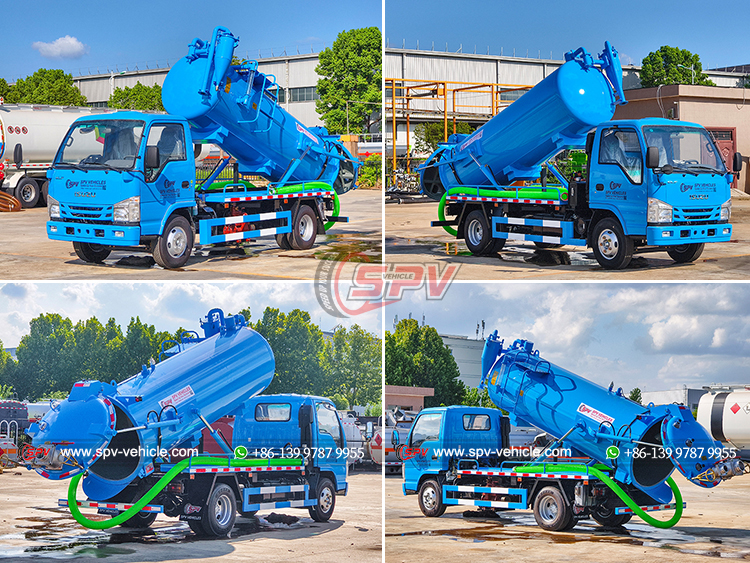

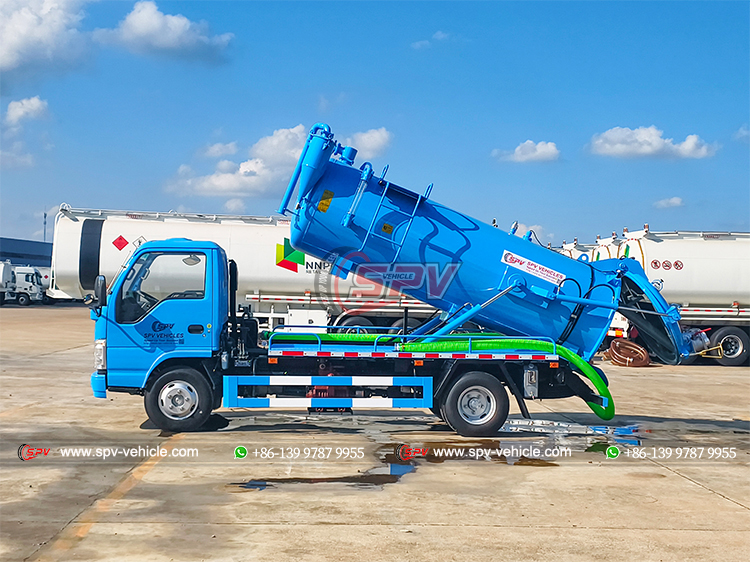

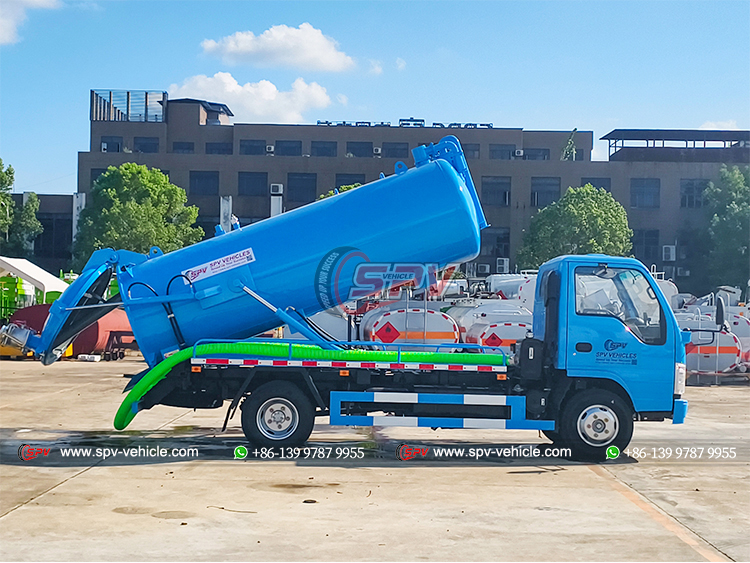

| Rear door can be hydraulic opened for complete discharge of solid stuff. | ||
| All other standard accessories: Tool kit, English manual…… | ||
| Optional |
1. Tank material could be mild steel, stainless steel… 2. Italy vacuum pump is available. |
|
