ShangHai SPV Special Vehicle Co., Ltd.
Sewage suction truck (also called sewer vacuum truck, sewer vacuum truck, sewage tanker, sewer truck, cesspit emptier, gully emptier, vacuum truck, gully emptier, waste vacuum tanker, vacuum tanker, sewage truck) is used to collect, transport and discharge liquid such as dirty water, sludge, septic, crude oil, and solid stuff such as small stones, bricks as well. It is suitable for cleaning the sewer, cesspit, cesspool, gully, etc. It is widely used in environment and sanitation field.

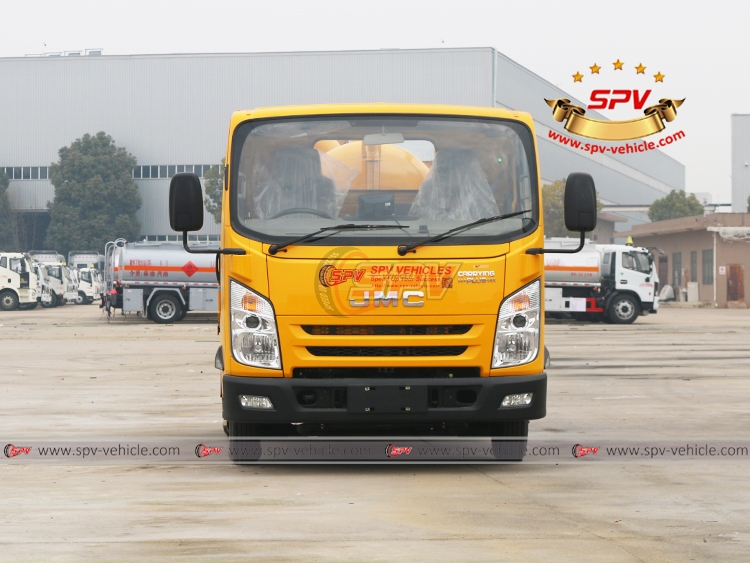

| Sewage Suction Truck JMC (2,000 Litres) | ||
| General | Vehicle Brand | SPV |
| Chassis Brand | JMC | |
| Overall Dimension | 5410 × 1940 × 2230 mm | |
| GVW / Kerb Weight | 4,500 kg /3,530 kg | |
| Cab | Cab Capacity | 2 persons allowed |
| Air Conditioner | Air conditioner is optional | |
| Engine | Fuel Type | Diesel |
| Engine Brand | Chinese top Yunei engine | |
| Power | 90 Ps (66 KW) | |
| Displacement | 2600 ml | |
| Emission Standard | Euro II | |
| Chassis | Drive Type | 4X2, left hand or right hand drive |
| Transmission | 5-speed front, 1 reverse | |
| Wheelbase/No. of axle | 2600 mm / 2 | |
| Tyre Specification | 6.50-16 | |
| Tyre Number | 6 tyres and 1 spare tyre | |
| Max Speed | 80 km/h | |
| Paint | Metallic paint | |
| Superstructure | Tank Capacity | 2,000 Litres (about 500 gallons) |
| Tank Material | Carbon steel | |
| Suction Head | 6 m | |
| Vacuum Pump |
Highly efficient, vacuum rate 93%, quick suction and discharge, suction lift 6m. |
|
| Hose | High quality, wire strengthened hose | |

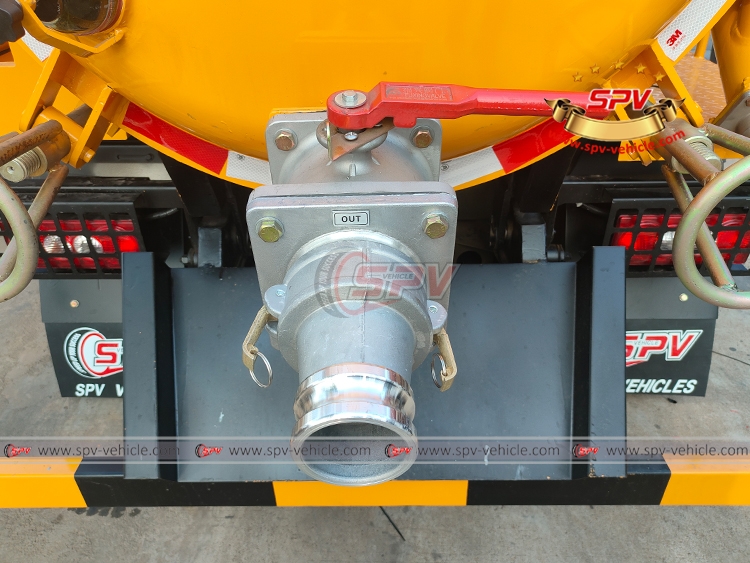

| Rear door can be hydraulic opened for complete discharge of solid stuff. | ||
| All standard accessories: inlet, discharge, antifill valve…….. | ||
| Optional |
** Tank material could be carbon steel, stainless steel..….. ** Vacuum pump could be imported brand…… |
|
