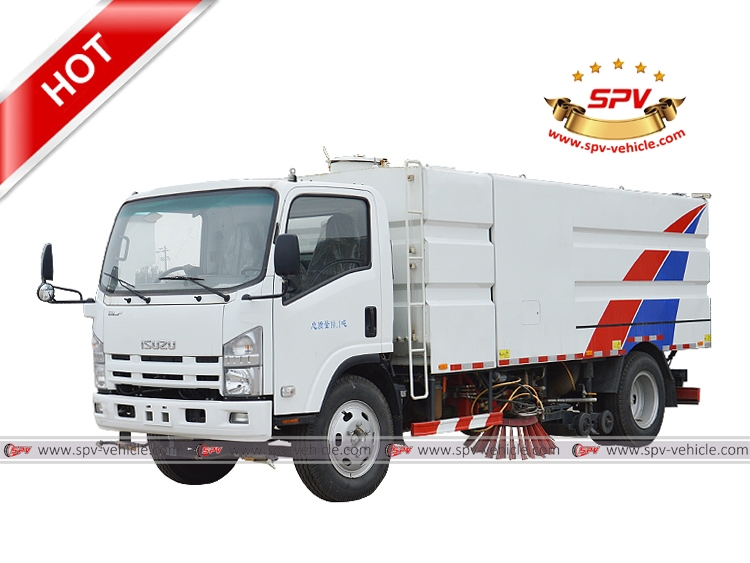

Road Washing Truck ISUZU
5 CBM Dustbin and 6 CBM Water Tank
Road Washing Truck ISUZU
Function:

Road washing truck (also called road cleaning truck, street washing truck, street cleaning truck, road sweeper truck, road washing and cleaning truck, road sweeper truck, street sweeper truck, truck mounted sweeper) is used for washing, cleaning and vacuum collecting of surface dusts, leaves, mud, soil, sand, stone chips, gravels and other small particles on the ground of city, municipal roads and areas. Meantime, it has high pressure jetting function - washing and flushing the road, able to remove the stubborn stuff on the road. It is widely used in the municipal sanitation field because of convenient operation and high efficiency.

It is equipped with auxiliary engine, air blower, imported high pressure plunge pump, water tank, stainless steel dustbin, sweeping brooms, suction nozzles, sprayers, etc.

Street washing truck has self cleaning system which could tip garbage and washing the dustbin automatically.

Features:

---- ISUZU chassis, perfect performance.
---- ISUZU engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Imported Italian high pressure water pump, highly powerful for cleaning.
---- PLC operation and control system.
---- Massive, durable, long service life.
---- 5 CBM Dustbin and 6 CBM Water Tank

Specification:

Road Washing Truck ISUZU (5 CBM Dustbin and 6 CBM Water Tank)
General Vehicle Brand SPV
Chassis Brand ISUZU
Overall Dimension 7200 * 2300 *2900 mm
GVW / Kerb Weight 10,500 kg / 6,860 kg
Cab Cab Capacity 3 persons allowed
Air Conditioner W/ air conditioner
Engine Fuel Type Diesel
Engine Brand ISUZU engine
Power 190 Ps (139 KW)
Displacement 5193 ml
Emission Standard Euro V
Chassis Drive Type 4X2, left hand drive
Transmission 6-speed forward, 1 reverse
No. of axle 2
Tyre Specification 235/75R17.5
Tyre Number 6 tyres and 1 spare tyre
Max Speed 105 km/h
Paint Metallic paint
Superstructure Water Tank 6 CBM  (About 1,500 gallons)
Dustbin Material 5 CBM , Stainless Steel
High Pressure Pump Imported Italian high pressure water pump
Working Speed 3-13 km/h
Working Width 3150 - 3500 mm
Sweeping Capacity 63,000 m³/h
Brooms 2 sets
Suction Plate Big diameter 180mm, Hydraulic controll
Auxiliary Engine JX493G3 (ISUZU Technology),
77 HP (57 KW), super powerful
All standard accessories: hose, high pressure hose reel, high pressure water gun, ground hydrant wrench, basic tool kit, English manual……
Optional ** Stainless steel water tank.
** Front snow plow.
** Elevating Platform.
** High cannon.

Road Washing Truck ISUZU-F
Photo 1: Front view of ISUZU Road Washing Truck (5 CBM Dustbin and 6 CBM Water Tank)

Road Washing Truck ISUZU-LS
Photo 2: Left side view of ISUZU Road Washing Truck (5 CBM Dustbin and 6 CBM Water Tank)

Road Washing Truck ISUZU-LB
Photo 3: Left back view of ISUZU Road Washing Truck (5 CBM Dustbin and 6 CBM Water Tank)

Road Washing Truck ISUZU-B
Photo 4: Back view of ISUZU Road Washing Truck (5 CBM Dustbin and 6 CBM Water Tank)

Road Washing Truck ISUZU-RF
 Photo 5: Right front view of ISUZU Road Washing Truck (5 CBM Dustbin and 6 CBM Water Tank)

Road Washing Truck ISUZU-RB
Photo 6: Right back view of ISUZU Road Washing Truck (5 CBM Dustbin and 6 CBM Water Tank)
