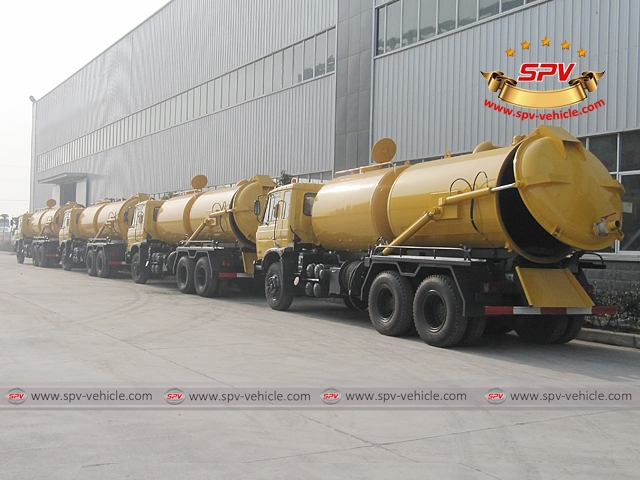

Vacuum jetting truck(also called ascombined jet suction truck, jet vacuum combination truck, vacuum suction vehicle, combination sewer cleaner, jet suction truck) is a vehicle that is designed to clear any blockage with jetting nozzles moving in sewage pipes under high pressure, and clear sewerage lines by means of a powerful vacuum suction to suck all water plus mud from sewer main hole. It is widely used in environment and sanitation field. The combine superstructure can be mounted on chassis 4x4, 4x2, 6x4, 6x6, etc.
---- Dongfeng chassis - one of the best and oldest chassis brand in China.
---- Cummins engine (American brand), super powerful; reliable performance.
---- Nice shape, compact structure
---- Italy imported high pressure pump, super powerful, efficient jetting
---- Chinese high class vacuum pump, effective and durable
---- Massive, durable, perfect performance
---- Prolonged service life

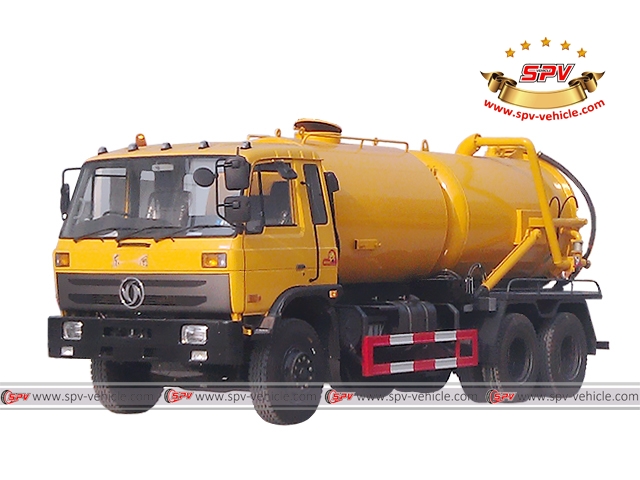

Vacuum Jetting Truck Dongfeng (16,000 litres) | |||
General | Vehicle Brand | SPV | |
Chassis Brand | Dongfeng | ||
Overall Dimension | 9600 * 2500 * 3700 mm | ||
GVW / Kerb Weight | 28,000 kg / 13,420 kg | ||
Cab | Cab Capacity | 2 persons allowed | |
Air Conditioner | Air conditioner is optinal | ||
Engine | Fuel Type | Diesel | |
Engine Brand | CUMMINS engine (American brand) | ||
Power | 260 Hp (183 KW) | ||
Displacement | 5900 ml | ||
Emission Standard | Euro III | ||
Chassis | Drive Type | 6X4, left hand drive or right hand drive | |
Transmission | 9-speed front, 1 reverse | ||
Wheelbase | 4350+1300 mm | ||
Number of axle | 3 | ||
Tyre Specification | 10.00-20 | ||
Tyre Number | 10 tyres and 1 spare tyre | ||
Max Speed | 90 km/h | ||
Paint | Metallic paint | ||
Superstructure | Water Tank | Tank Capacity | 8,000 Litres (about 2,100 gals) |
Tank Material | Carbon steel | ||
High Pressure Pump | Italy Imported brand / 16Mpa | ||
Flow Speed | 125 L/min | ||
High Pressure Hose | 60m | ||
Suction Head | 6 m | ||
Nozzles | A cluster of nozzles included | ||
Sewer Tank | Tank Capacity | 8,000 Litres (about 2,100 gals) | |
Tank Material | Carbon steel | ||
Vacuum Pump | Highly efficient, vacuum rate 93%, quick suction and discharge, suction lift 6m. | ||
Rear door can be hydraulic opened for complete discharge of solid stuff. | |||
All standard accessories: manhole, tool kit, English manual…….. | |||
Optional |
** Tank material could be stainless steel. ** High pressure hose length could be customized. |
