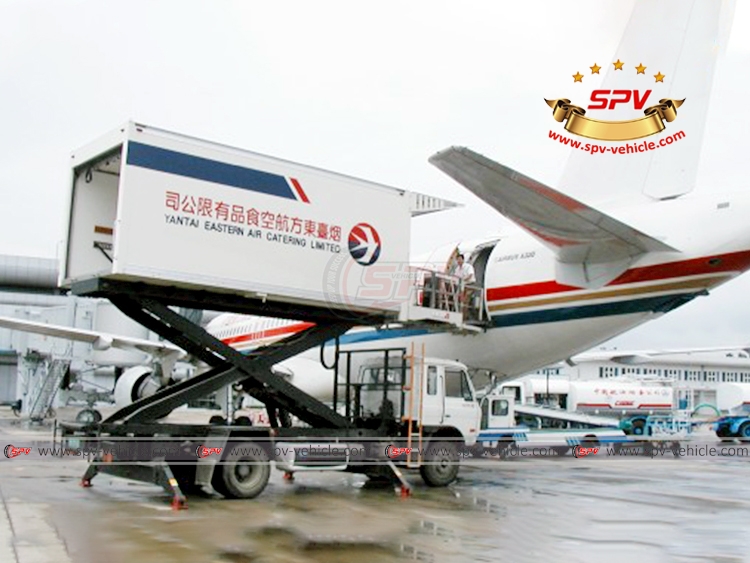

Aircraft catering truck (also called catering truck, catering high lift, catering high loader, aircraft catering highloader, catering hi-lift truck, aircraft catering high lift, etc) is used to carry and load containers with airline food for passengers.
SPV aircraft catering trucks are able to service all types of planes with access doors threshold mounted at a height from 2.4 m to 6.0 m, including A300, A310, A318, A319, A320, A321, A330, A340, B737, B757, B767, etc.
Aircraft Catering Truck ISUZU (4,000 KG) | ||
General | Vehicle Brand | SPV |
Chassis Brand | ISUZU FTR | |
Overall Dimension | 10700 * 2500 * 3800 mm | |
GVW / Kerb Weight | 16,000kg / 8,800 kg | |
Cab | Cab Capacity | 2 persons allowed |
Air Conditioner | Equipped | |
Engine | Fuel Type | Diesel |
Engine Brand | ISUZU Engine, 4HK1-TC50 | |
Power | 205 Ps (150 KW) | |
Displacement | 5193 ml | |
Emission Standard | Euro V | |
Chassis | Drive Type | 4X2, left hand drive |
Transmission | Manual, 6 - speed forward, 1 reverse | |
No. of axle | 2 | |
Tyre Specification | 9.00-20 | |
Tyre Number | 6 tyres and 1 spare tyre | |
Max Speed | 95 km/h | |
Paint | Metallic paint | |
Superstructure | Van Inner Dimension | 7200 * 2300 * 2250 mm |
Van Material | Fiberglass with inner polyurethane foaming 7.8 mm | |
Floor | Anti-slip aluminium floor | |
Body Loading Capacity | 4,000 kg | |
Refrigerator | Autonomous diesel refrigeration with 380V alternative power | |
Front Platform | Capacity 500 kg, able to move in the longitudinal and transverse directions, with safety rails and a buffer locking device | |
Working Height Range | 2.7 – 6.0 m | |
Rear Platform Capacity | 500 kg | |
Body Lift Mechanism | Scissor type. Hydraulic system with emergency electrical and mechanical pump to bring the machine into the transport | |
Safety System | Hydraulic locks, proximity sensors, beep… | |
Remarks | All necessary parts, tool kit, English manual. |
