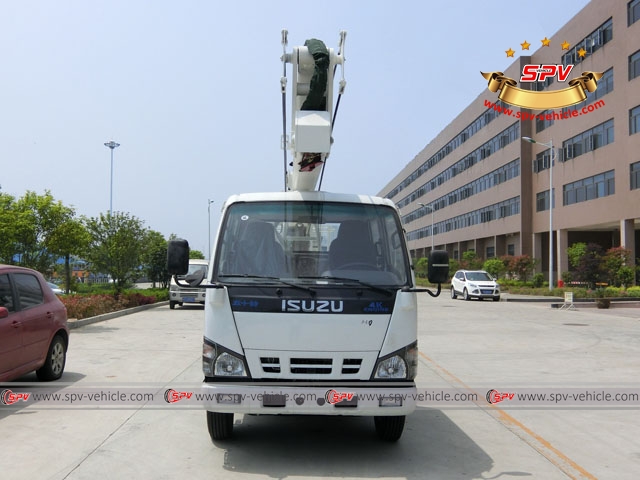

ISUZU Aerial Platform Truck, 14-16M Aerial Lift Truck, Insulated Aerial Working Platform Manufacturers from China

Aerial platform truck (also called truck mounted aerial work platform, aerial lift, hydraulic beam lifter, hydraulic aerial platform vehicle, aerial boom lift, bucket truck, overhead working truck, sky lift etc.) is ideal for maintenance of traffic lights, street lights, landscaping trees, cleaning/setting signboard and other high aerial works.

SPV aerial work platforms are available of 8m-12m, 14m-16m, 18m, 20m-22m, 24-26m. Insulated cage is optional.

Features:

---- ISUZU chassis ensures perfect driving performance;
---- ISUZU engine, super powerful; reliable performance, no overhaul within 100,000 km;
---- The working cage can be made of steel structure or reinforced fiberglass (insulated cage);
---- Safty Devices are available, such as relief valves, balance valves, double-way hydraulic locks, motor emergency system etc;
---- Hoist hook with cables can be equipped for the function of a crane;
---- Cargo box is available to transport goods.

Specification:

Aerial Platform Truck ISUZU (14-18M)
General	Vehicle Brand	SPV
	Chassis Brand	ISUZU
	Overall Dimension	7650 x 1980 x 3100 mm
	GVW / Kerb Weight	6,810 kg / 5,855 kg
Cab	Cab Capacity	2+3 persons allowed
Cab	Air Conditioner	With air conditioner
Engine	Fuel Type	Diesel
	Engine Brand	ISUZU engine, 4KH1-TCG40
	Power	120Ps (88KW)
	Displacement	2999 ml
	Emission Standard	Euro IV
Chassis	Drive Type	4X2, left hand drive
	Transmission	ISUZU MSB transmission, 5-forward gears & 1 reverse, no overhaul within 500,000km
	Wheelbase/No. of axle	3360 mm / 2
	Tyre Specification	7.00-16 or 7.00R16
	Tyre Number	6 tyres and 1 spare tyre
	Max Speed	95 km/h
	Paint	Metallic paint
Superstructure	Cage Rated Capacity	200 kg
	Working Height	14-16 M
	Outriggers	4pcs, H-type; Hydraulically extend and retract
	Slewing	360° continuous rotation with base turntable
	Control	Control both on the ground and in the cage
	Emergency electrical/manual pump is equipped to operate the equipment in case of engine failure.
	Emergency stop switches at base and operator’s cage.
Optional	Insulated cage; Cargo box; Hoist hook with cables can be equipped for the function of a crane.

Similar Key Words: Aerial working platform (truck mounted), cargo truck mounted aerial platform, truck mounted aerial lift, aerial platform truck, hydraulic aerial truck, hydraulic lifting platform truck, telescopic platform truck.
