ShangHai SPV Special Vehicle Co., Ltd.

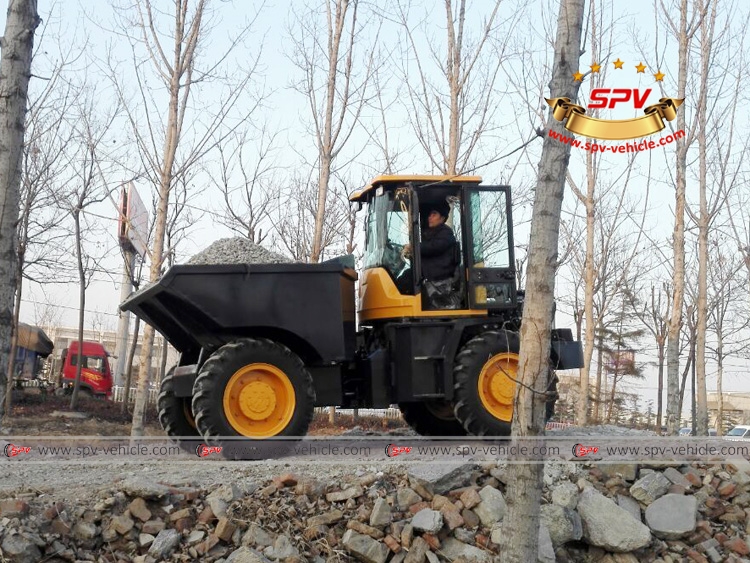

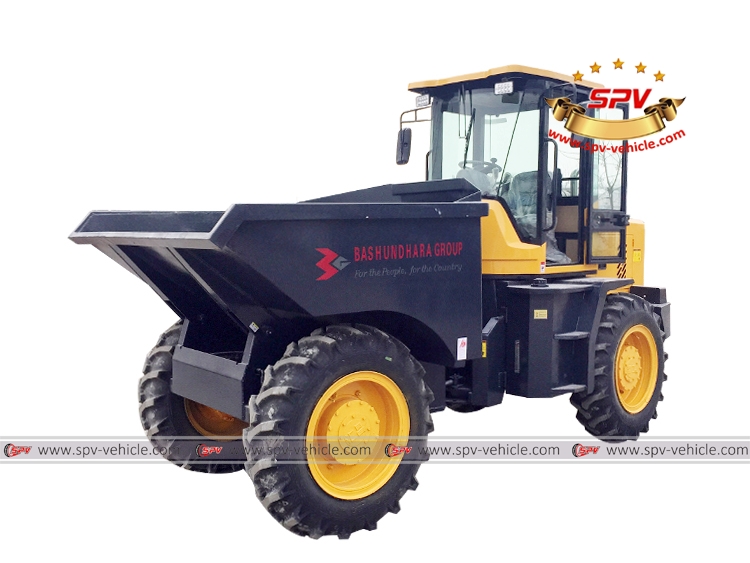

Mini dumper (also called mini tipper, dumper, tipper, minidumper, mini dumper truck, mini dumper engine) is a mini truck used for transporting loose material (such as sand, gravel, coal, dirt, etc.).
A typical mini dump truck is equipped with a front skip and the chassis. And the skip is controlled by hydraulic system to unload.
---- Nice shape, rational structure
---- High strength box body
---- Excellent Chinese brand hydraulic system
---- Massive, durable, perfect performance
---- Prolonged service life
Similar Key Words: Mini dumper, mini tipper, dumper, tipper, minidumper, mini dumper truck, mini dumper engine
| Mini Dumper (Payload: 5,000kg) | |
| Vehicle Model | SPV-MDY50 |
| Driving Type | 4X4 |
| Payload | 5,000 kg |
| Skip Capacity | 2500 liters |
| Dump Height | 390 mm |
| Skip Width | 1700 mm |
| Driving Speed | 0 – 22 km/h |
| Max Grade ability | 21° |
| Minimum Turning Radium | 5000 mm |
| Ground Clearance | 200 mm |
| Overall Dimension | 5500 * 1700 * 2750 mm |
| Wheelbase | 2210 mm |
| Wheel Track | 1400 mm |
| Weight | 4,000 kg |
| Fuel Type | Diesel |
| Engine Brand | Chinese top brand |
| Engine Power | 44 Hp (32 KW) |
| Transmission | 3-speed front, 1 reverse |
| Tipping Method | Hydraulic |
| Starting Method | Electrical |
| All other standard accessories: Tool kit, English manual | |
