ShangHai SPV Special Vehicle Co., Ltd.
Lorry carrier truck (also called excavator transport truck, machinery transport truck, flatbed lorry, low bed truck, excavator carrier truck, asphalt paver carrier truck, lorry carrier truck) is used for transporting object that is non-removable or machinery that can’t be driven on road, such as excavator, loader, harvester, etc. It’s widely used in the construction, agriculture field.
To load machinery easily, there is a tilt ramp at back of flatbed. When loading machinery on, turnover the ramp to ground, so there could be a slope between ground and flatbed. When finished loading, the ramp should be fold up and fastened by manual. According to special requirements, the ramps could be hydraulic fold and extension.
According to its driven type, there is 4X2, 6X4, 8X4 flatbed truck.
According to special loading requirements, the flatbed could be extensible type.
---- JAC chassis, perfect performance.
---- Chinese top Weichai Engine, super powerful; reliable performance.
---- Strong flatbed, heavy loading, checkered plate, anti-slip.
---- Flat connection of ramps and flat bed
---- Low gravity center, safe transport
---- Massive, durable, long service life.
| Lorry Carrier Truck JAC (25 Tons) | ||
| General | Vehicle Brand | SPV |
| Chassis Brand | JAC | |
| Overall Dimension | 12000 * 2500 * 3200 mm | |
| GVW / Kerb Weight | 31,000kg / 13,500 kg | |
| Cab | Cab Capacity | 3 persons seats with 1 sleeper |
| Air Conditioner | W/ air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | Chinese top Weichai Engine | |
| Power | 336 Ps (247 KW) | |
| Displacement | 9726 ml | |
| Emission Standard | Euro III | |
| Chassis | Drive Type | 8X4, left hand drive |
| Transmission | 12 - speed forward, 2 reverse | |
| No. of axle | 4 | |
| Tyre Specification | 295/80R22.5, tubeless tyre | |
| Tyre Number | 12 tyres and 1 spare tyre | |
| Max Speed | 80km/h | |
| Paint | Metallic paint | |
| Superstructure | Flatbed Loading Capacity | ≤ 25 Tons |
| Flatbed Material | Strengthened checked plate, anti-slip | |
| Flatbed thickness | 8 mm | |
| All standard accessories: basic tool kit, English manual…… | ||
| Optional |
** Hydraulic ramps for folding and extension. ** Width extensible manual or hydraulic ** Front hydraulic lifting system |
|

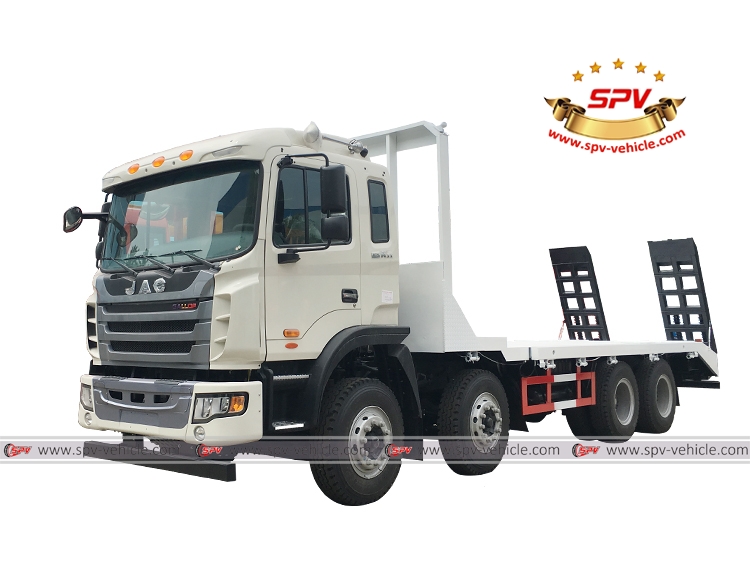

Photo 1: Left front view of Lorry Carrier Truck JAC(8x4 Type)
Photo 2: Left back view of Lorry Carrier Truck JAC(8x4 Type)
