Tipper Truck JAC
Dumper (Volume: 5 m³)
Tipper Truck JAC
Function:

Tipper (also called dumptruck, tipper truck, dump tipper, side-turn tipper, dump truck tipping, tipper and lorry, dumper, dump tipper, tip truck, side-turn tipper, dump truck tipping, tipper and lorry, dumper, tipper lorry) is a truck used for transporting loose material, such as sand, gravel, coal, dirt, etc.

A typical dump truck is equipped with an open-box bed, which is hinged at the rear and equipped with hydraulic pistons to lift the front. Or hinged at side with hydraulic pistons to lift the side.



Features:

---- JAC chassis ensures perfect driving performance.
---- JAC engine, super powerful; reliable performance.
---- Nice shape, rational structure
---- High strength box body
---- Excellent Chinese brand hydraulic piston
---- Massive, durable, perfect performance
---- Prolonged service life



Specification:

Dump Tipper Truck JAC (Volume: 5 CBM)
General Vehicle Brand SPV
Chassis Brand JAC
Overall Dimension 6665 X 2140 X 2450 mm
GVW / Kerb Weight 7,500 kg / 4,730 kg
Cab Cab Capacity 2 persons allowed
Air Conditioner W/ air conditioner
Engine Fuel Type Diesel
Engine Brand Cummins engine
Power 125 Hp (92 KW)
Displacement 3920 ml
Emission Standard Euro 2
Chassis Drive Type 4X2, left hand drive
Transmission Manual, 6-speed forward, 1 reverse
Wheelbase/No. of axle 3800 mm / 2
Tyre Specification 8.25R16 ,Radial Tyre
Tyre Number 6 tyres and 1 spare tyre
Max Speed 90 km/h
Paint Metallic paint
Superstructure Box Volume 5 CBM
Box Dimension 4710 * 2010 * 550 mm
All other standard accessories: Tool kit, English manual
Optional Box thickness could be nominated.
Box height could be nominated.
Tip way: back or side.

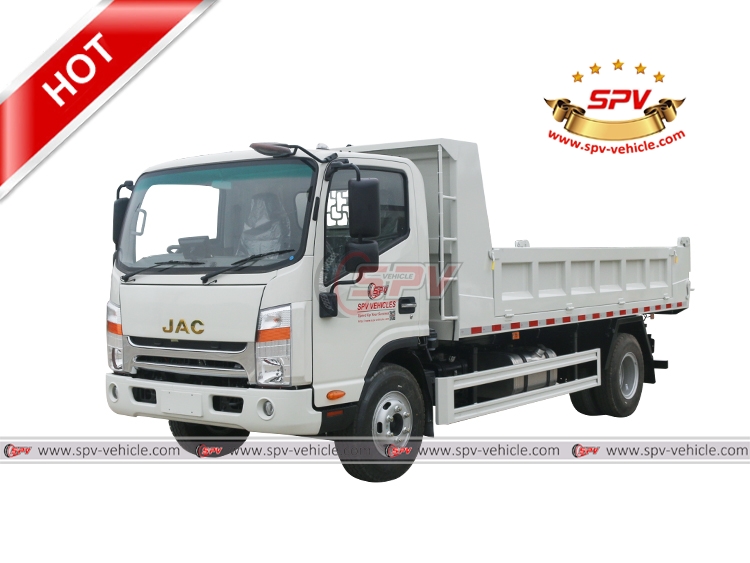

3 Tons Dump Truck JAC - F
Front View of Tipper Truck JAC(3 Tons)

3 Tons Dump Truck JAC - LF
Left Front View of Tipper Truck JAC(3 Tons)

3 Tons Dump Truck JAC - L
Left Side View of Tipper Truck JAC(3 Tons)

3 Tons Dump Truck JAC - LB
Left Back View of Tipper Truck JAC(3 Tons)

3 Tons Dump Truck JAC - LR
Right Front View of Tipper Truck JAC(3 Tons)

3 Tons Dump Truck JAC - R
Right Side View of Tipper Truck JAC(3 Tons)

3 Tons Dump Truck JAC - RB
Right Back View of Tipper Truck JAC(3 Tons)

3 Tons Dump Truck JAC - Lifting - LF
Left Front View of Tipper Truck JAC(3 Tons) - Lifting

3 Tons Dump Truck JAC - Lifting - L
Left Side View of Tipper Truck JAC(3 Tons) - Lifting

3 Tons Dump Truck JAC - Lifting - RF
Right Front View of Tipper Truck JAC(3 Tons) - Lifting
