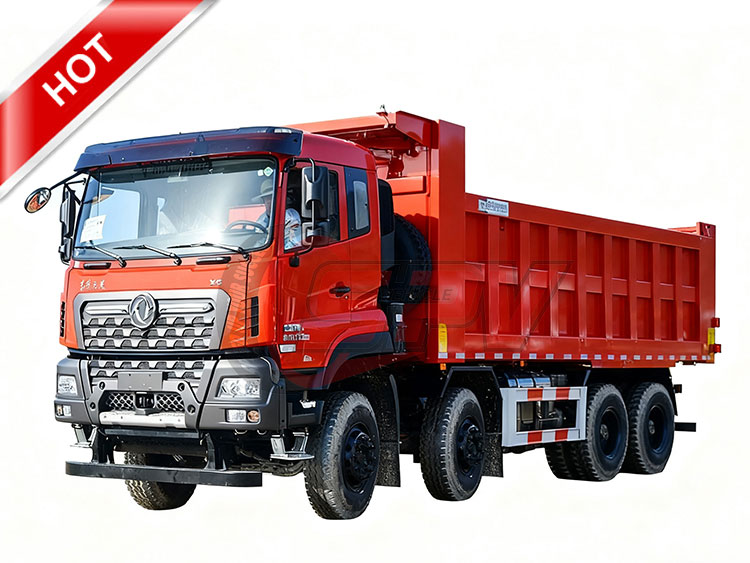

Hydraulic Tipper Truck DONGFENG
Soil Hauling Truck 18 m³
Hydraulic Tipper Truck DONGFENG
Function:

Hydraulic tipper truck (also called dumptruck, tipper truck, dump tipper, side-turn tipper, dump truck tipping, tipper and lorry, dumper, dump tipper, tip truck, side-turn tipper, dump truck tipping, tipper and lorry, dumper, tipper lorry) is a truck used for transporting loose material, such as sand, gravel, coal, dirt, etc.

A typical dump truck is equipped with an open-box bed, which is hinged at the rear and equipped with hydraulic pistons to lift the front. Or hinged at side with hydraulic pistons to lift the side.



Features:

---- DONGFENG chassis ensures perfect driving performance.
---- DONGFENG engine, super powerful; reliable performance.
---- Nice shape, rational structure
---- High strength box body
---- Excellent Chinese brand hydraulic piston
---- Massive, durable, perfect performance
---- Prolonged service life



Specification:
 Similar Keywords: Dumptruck, tipper, tipper truck, dump tipper, side-turn tipper, dump truck tipping, tipper and lorry, dumper, dump tipper, tip truck, side-turn tipper, dump truck tipping, tipper and lorry, dumper, tipper lorry


Hydraulice Tipper Truck DONGFENG(18 CBM)
General Vehicle Brand SPV
Chassis Brand Dongfeng
Overall Dimension 8575 * 2550 * 3450 mm
GVW / Kerb Weight 31,000 kg / 15,500 kg
Cab Cab Capacity 2 persons allowed
Air Conditioner Air conditioner is optional
Engine Fuel Type Diesel
Engine Brand Dongfeng engine
Power 385 Hp (283 KW)
Displacement 9726 ml
Emission Standard Euro VI
Chassis Drive Type 8X4, left hand drive or right hand drive
Transmission Manual, 14 -speed forward, 2 reverse
No. of Axles 4
Tyre Specification 12.00R20 18PR
Tyre Number 12 tyres and 1 spare tyre
Max Speed 80 km/h
Paint Metallic paint
Superstructure Box Dimension 6200 * 2300 * 1450 mm
Bottom Board Thickness 10 mm
Side Board Thickness 8 mm
Hydraulic piston Hyva or Chinese reliable brand
All other standard accessories: Tool kit, English manual
Optional ** Box thickness could be changed.
** Box height could be nominated.
** Tip way: back or side.

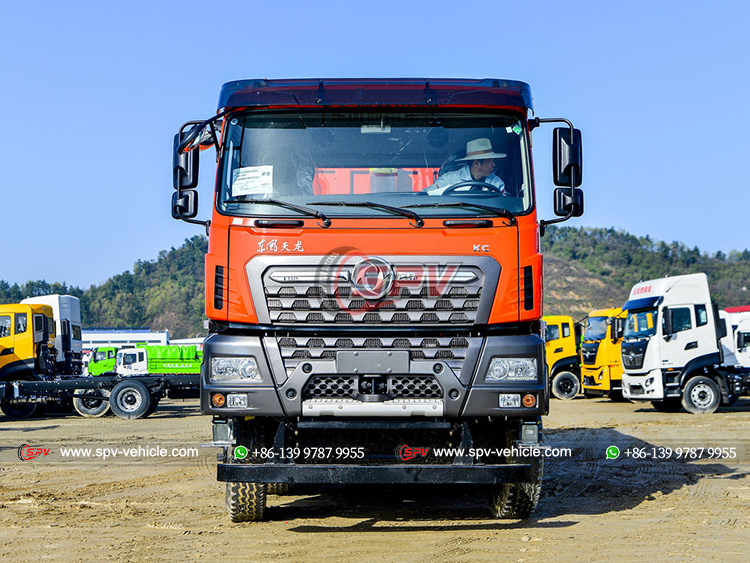

DongFeng 8x4 Aggregate Transport Truck - Front Side
DongFeng 8x4 Aggregate Transport Truck - Front Side

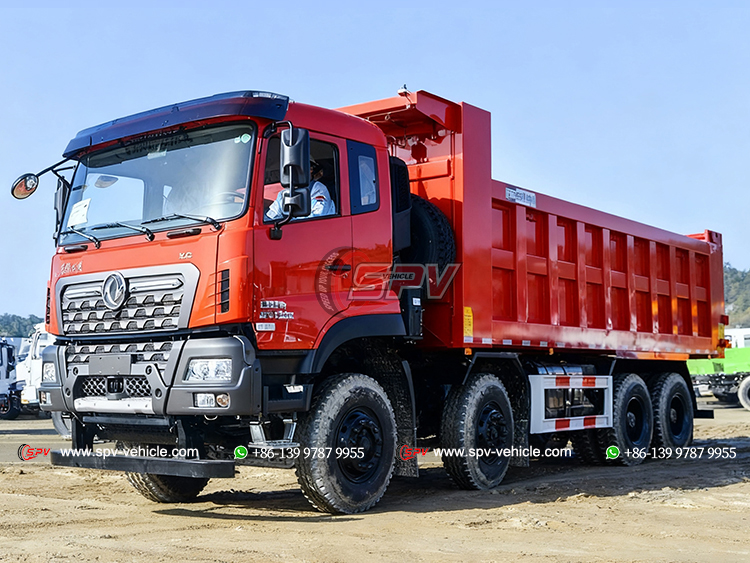

DONGFENG 4 Axles Dumper Truck - Front Left Side
DONGFENG 4 Axles Dumper Truck - Front Left Side

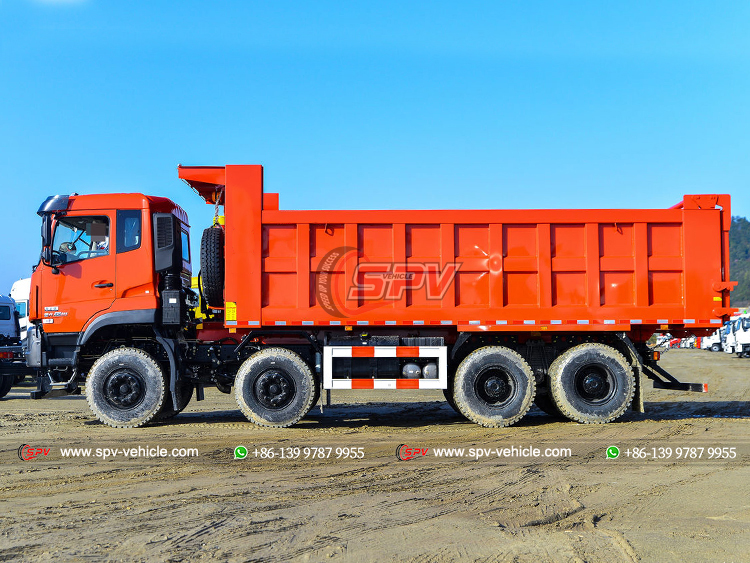

DONGFENG KC 8x4 Dumping Truck - Left Side
DONGFENG KC 8x4 Dumping Truck - Left Side

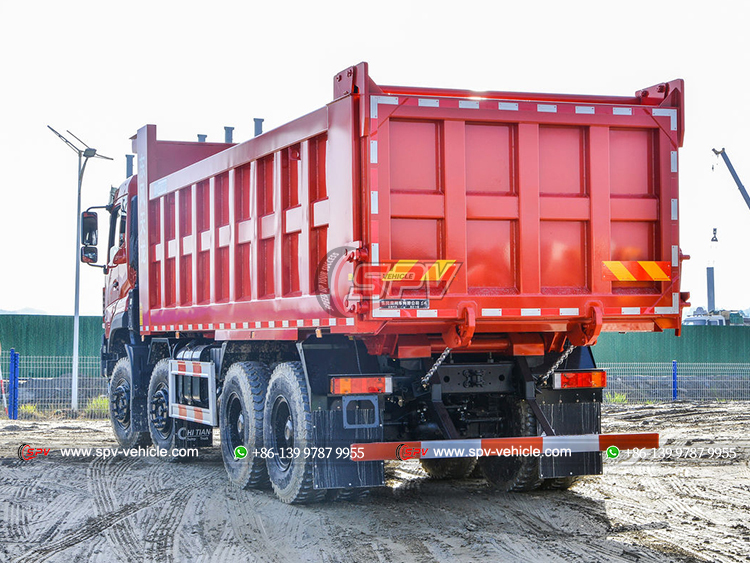

DONGFENG 8x4 Hydraulic Tipper Truck - Rear Left Side

DONGFENG 8x4 Hydraulic Tipper Truck - Rear Left Side

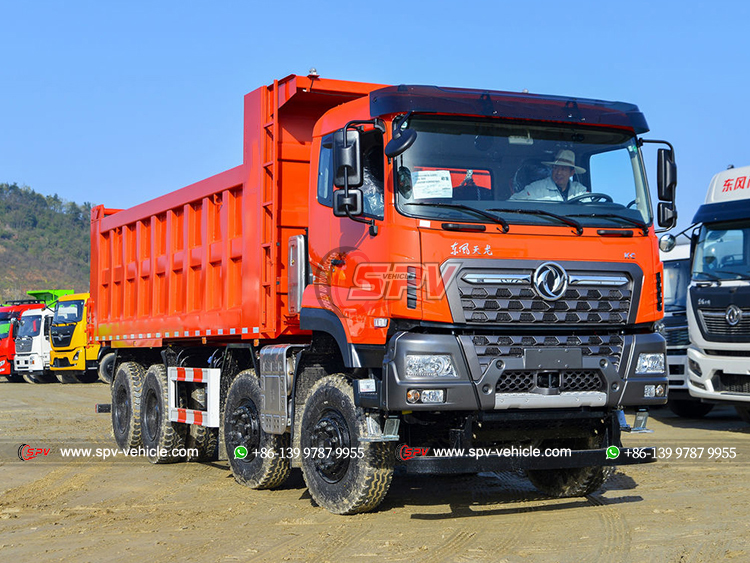

DONGFENG 8x4 Heavy-duty Dump Truck - Front Right Side

DONGFENG 8x4 Heavy-duty Dump Truck - Front Right Side

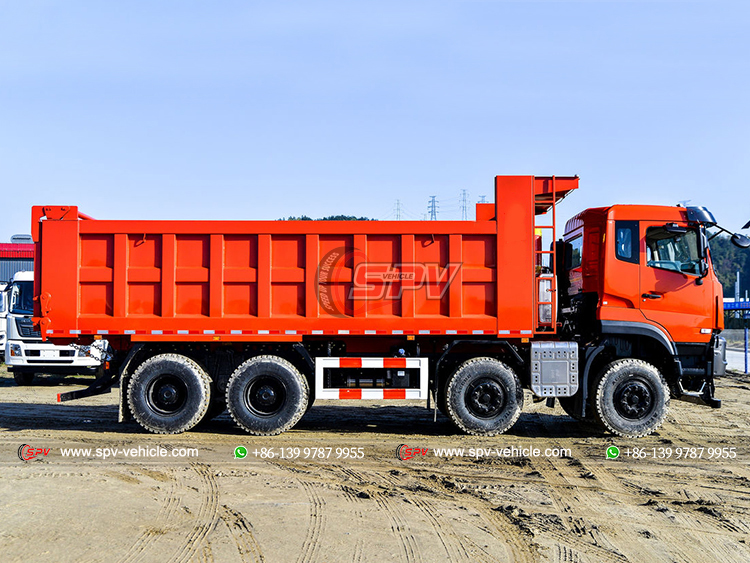

Dongfeng KC 8x4 Tipping Truck - Right Side

Dongfeng KC 8x4 Tipping Truck - Right Side

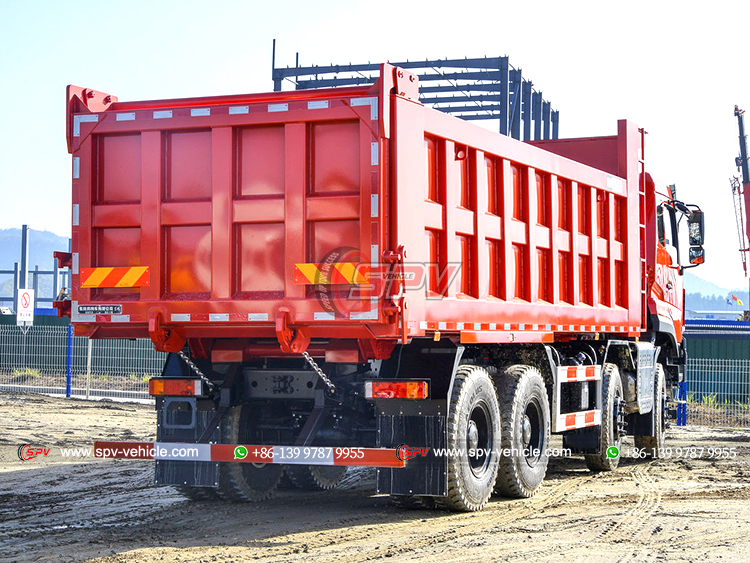

DONGFENG 8x4 Soil Hauling Truck - Rear Right Side

DONGFENG 8x4 Soil Hauling Truck - Rear Right Side

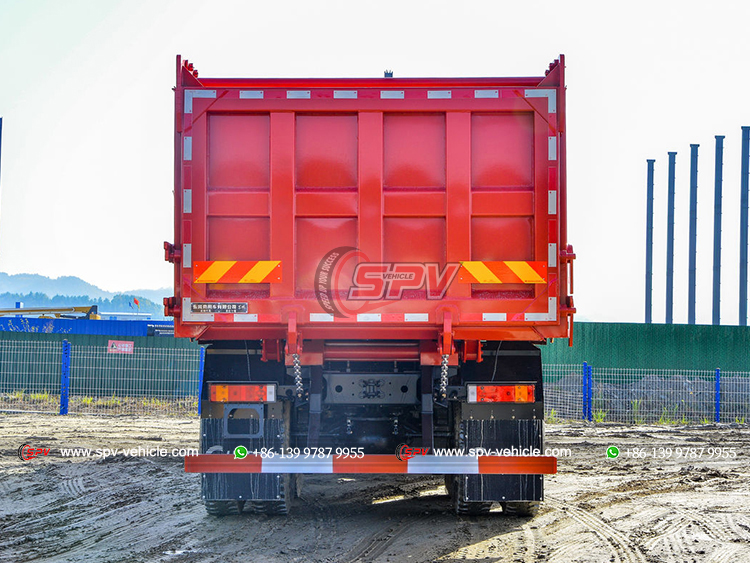

DONGFENG Construction Dump Vehicle - Rear Side
DONGFENG Construction Dump Vehicle - Rear Side
