Dumping Lorry Dongfeng
8-10 Ton Tipper Truck
Dumping Lorry Dongfeng
Function:

Dumping Lorry (also called dumptruck, tipper truck, dump tipper, side-turn tipper, dump truck tipping, tipper and lorry, dumper, dump tipper, tip truck, side-turn tipper, dump truck tipping, tipper and lorry, dumper, tipper lorry) is a truck used for transporting loose material, such as sand, gravel, coal, dirt, etc.

A typical dump truck is equipped with an open-box bed, which is hinged at the rear and equipped with hydraulic pistons to lift the front. Or hinged at side with hydraulic pistons to lift the side.



Features:

---- Dongfeng chassis ensures perfect driving performance.
---- Yuchai engine, super powerful; reliable performance.
---- Nice shape, rational structure
---- High strength box body
---- Excellent Chinese brand hydraulic piston
---- Massive, durable, perfect performance
---- Prolonged service life



Specification:
 Similar Key Words: Dumptruck, tipper, tipper truck, dump tipper, side-turn tipper, dump truck tipping, tipper and lorry, dumper, dump tipper, tip truck, side-turn tipper, dump truck tipping, tipper and lorry, dumper, tipper lorry


Dumping truck Dongfeng
General Vehicle Brand SPV
Chassis Brand Dongfeng
Overall Dimension 8025*2530*3070 mm
GVW / Kerb Weight 18,000 kg / 10,130kg
Cab Cab Capacity 3 persons allowed
Air Conditioner W/ air conditioner
Engine Fuel Type Diesel
Engine Brand Yuchai engine
Power 240 Hp (177KW)
Displacement 7520 ml
Emission Standard Euro V
Chassis Drive Type 4X2, left hand drive
Transmission 10-speed front, 2 reverse
No. of Axles 2
Tyre Specification 11.00R20 18PR
Tyre Number 6 tyres and 1 spare tyre
Max Speed 90 km/h
Paint Metallic paint
Superstructure Box Dimension 5400*2300*800 mm
Bottom Board Thickness 8 mm
Side Board Thickness 6 mm
Hydraulic Cylinder Of Hyva or Chinese reliable brand
All other standard accessories: Tool kit, English manual
Optional ** Box thickness could be changed.
** Box height could be nominated.
** Tip way: back or side.

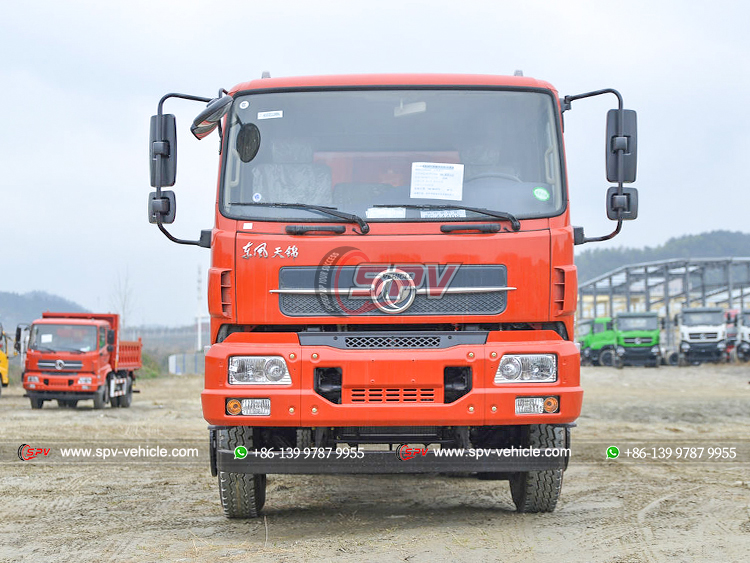

DONGFENG Heavy Dumping Truck - Front Side
DONGFENG Heavy Dumping Truck - Front Side

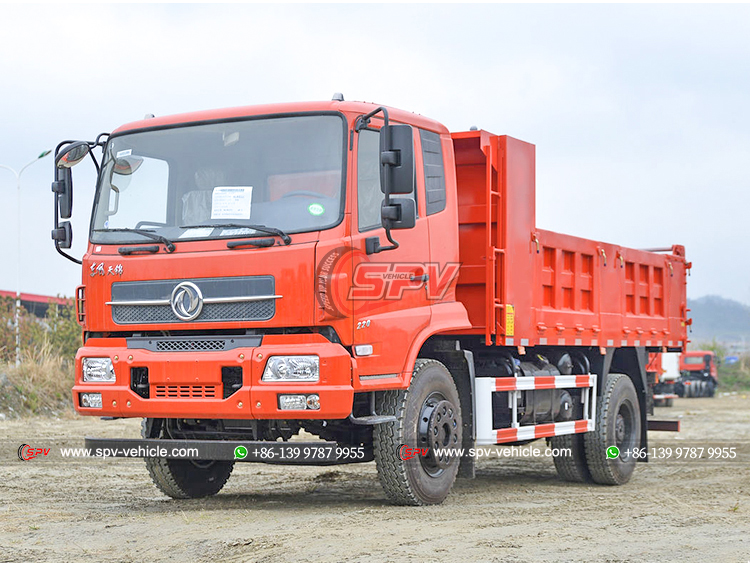

DONGFENG 4X2 Dumper Lorry - Front Left Side

DONGFENG 4X2 Dumper Lorry - Front Left Side

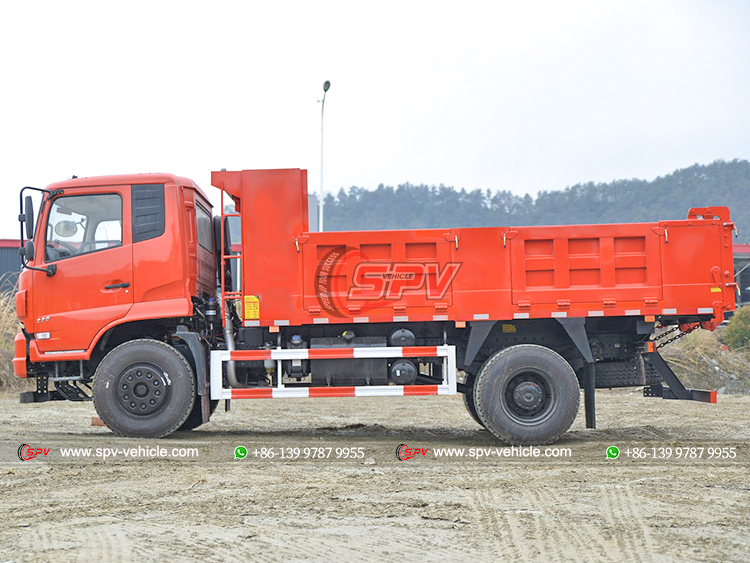

DONGFENG Dumping Vehicle - Left Side

DONGFENG Dumping Vehicle - Left Side

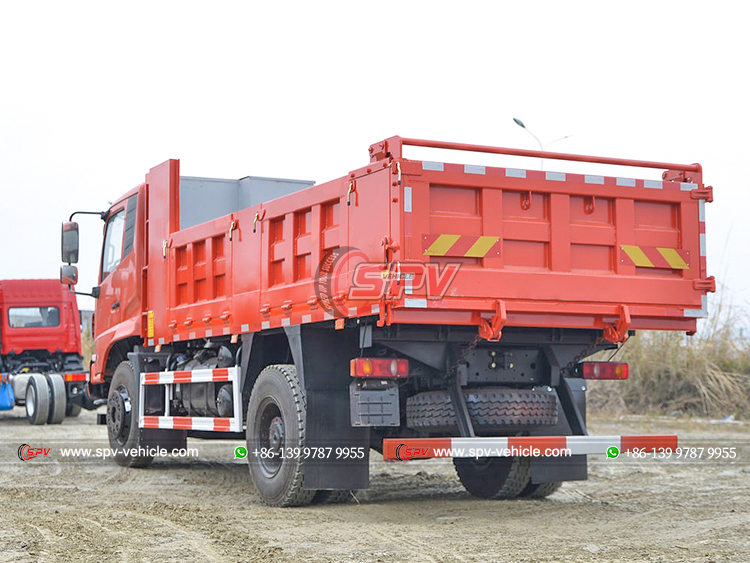

DONGFENG Rear Tipper Truck - Rear Left Side
DONGFENG Rear Tipper Truck - Rear Left Side

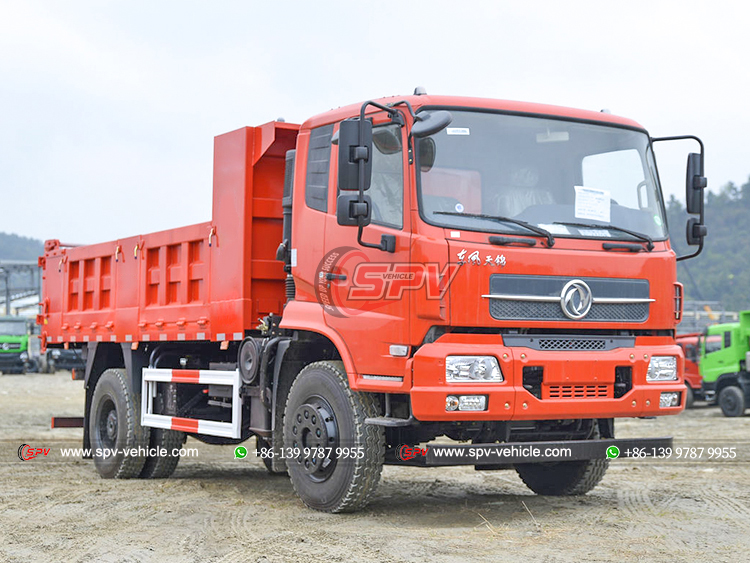

DONGFENG 4X2 Dumper Lorry - Front Right Side
DONGFENG 4X2 Dumper Lorry - Front Right Side

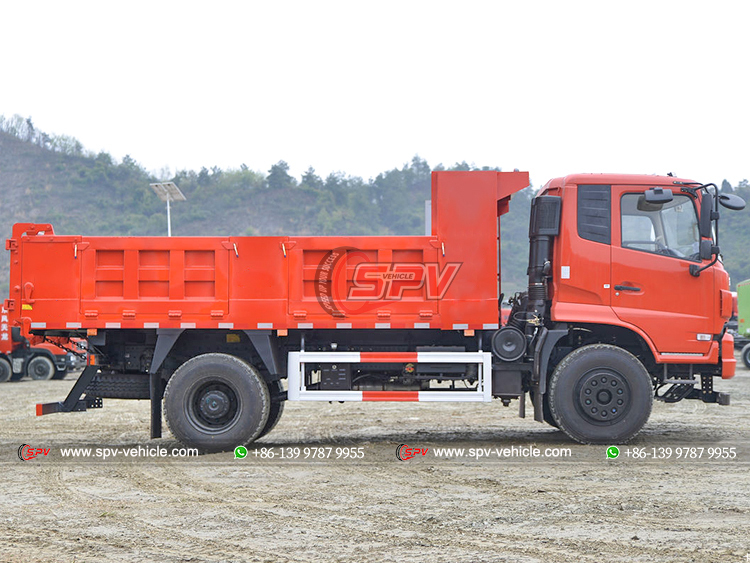

DONGFENG 4X2 Tipper Truck - Right Side

DONGFENG 4X2 Tipper Truck - Right Side

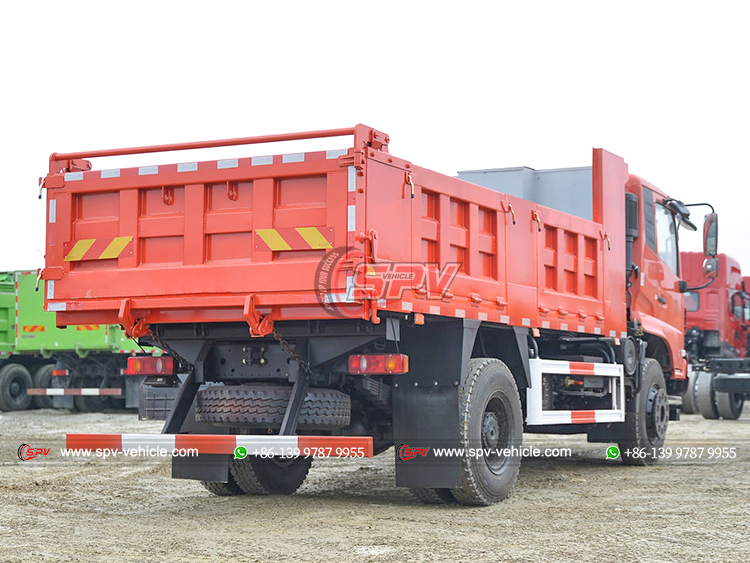

DONGFENG Dump Truck - Rear Right Side

DONGFENG Dump Truck - Rear Right Side

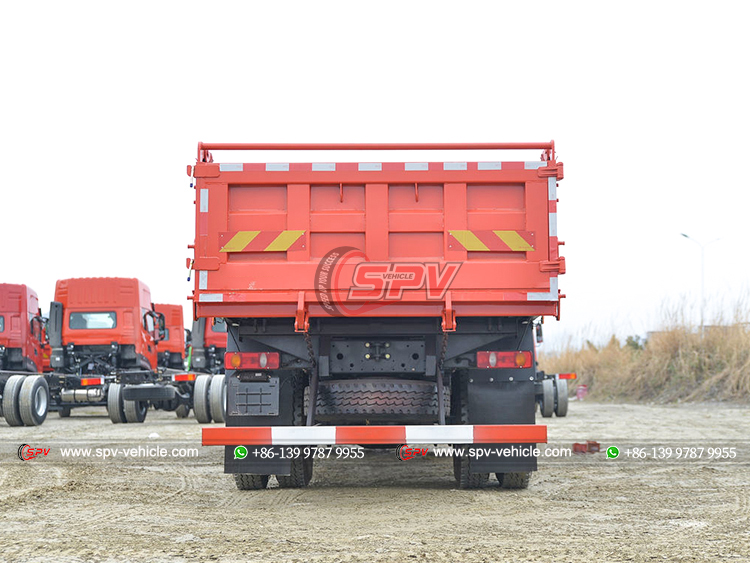

DONGFENG Heavy-duty Dumper Vehicle - Rear Side
DONGFENG Heavy-duty Dumper Vehicle - Rear Side

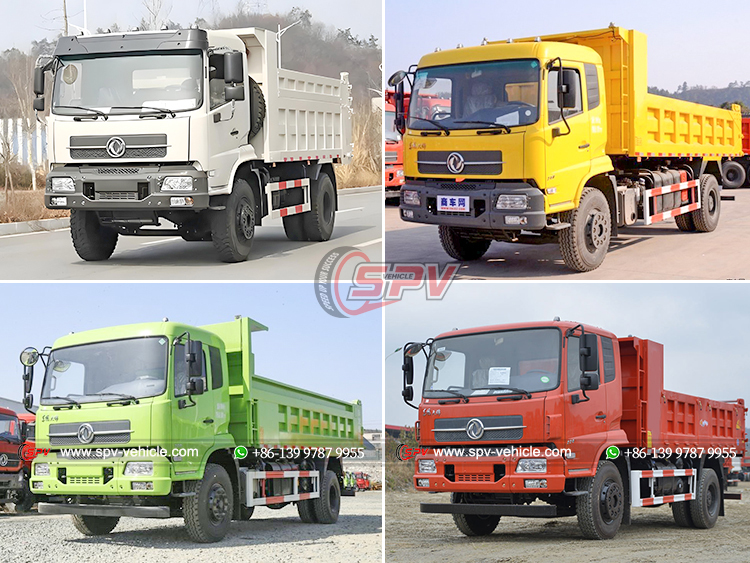

More Choice of DONGFENG Tiping Truck
More Choice of DONGFENG Tiping Truck

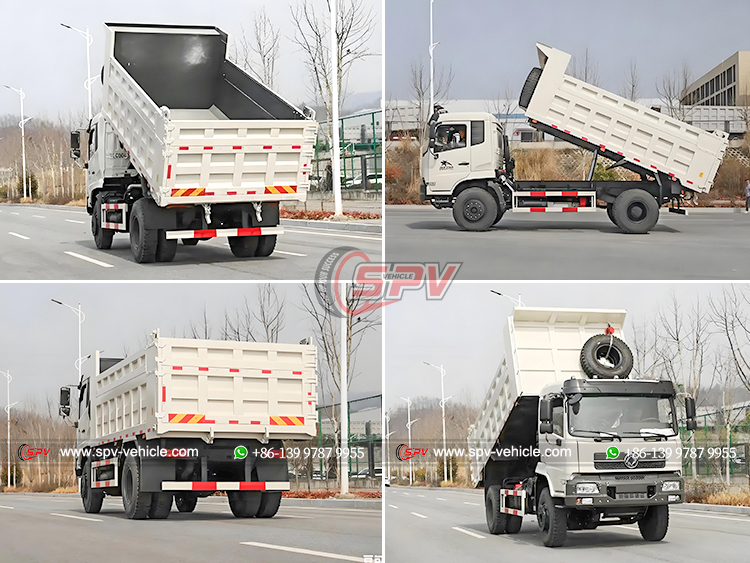

More DONGFENG Dumping Trucks

More DONGFENG Dumping Trucks
