Function:
Asphalt Sprayer truck (also called automatic asphalt distributor, bitumen sprayer truck, bitumen spraing truck, asphalt distributor, bitumen sprayer, asphalt sprayer, bitumen pressure distributor, asphalt distributor machine, bitumen sprayer engine) is a equipment that is widely used in road construction. It is an intelligent high-tech product which can spread emulsified asphalt, fluxed asphalt, oil refining asphalt, heated asphalt, heavy traffic paving asphalt and high viscosity modified asphalt.
Asphalt distributor is basically made up of chassis, asphalt tank, asphalt pump, spray system, heat conduction oil heating system, hydraulic system, electric control system, distribution control system and rinsing series. And the distribution system has two main types: hand-controlled and computer-controlled.
Features:
---- Dongfeng chassis ensures perfect driving performance.
---- Cummins engine, American brand, super powerful; reliable performance.
---- Imported or excellent Chinese brand Auxiliary Engine/ Asphalt Pump/ Hydraulic Pump
---- Imported computer-controlled or hand-controlled distribution system
---- Nice shape, rational structure
---- Intelligent asphalt nozzle
---- Prolonged service life
Specification:
Similar Key Words: asphalt distributor, bitumen sprayer truck, bitumen distributor, bitumen sprayer, asphalt sprayer, bitumen pressure distributor, asphalt distributor machine, bitumen sprayer engine
|
Asphalt Sprayer Truck Dongfeng (7T) |
|
General |
Vehicle Brand |
SPV |
|
Chassis Brand |
Dongfeng |
|
Overall Dimension |
7380 * 2280 * 2750 mm |
|
GVW / Kerb Weight |
11,995 kg / 6,340 kg |
|
Cab |
Cab Capacity |
2 persons allowed |
|
Air Conditioner |
W/ air conditioner |
|
Engine |
Fuel Type |
Diesel |
|
Engine Brand |
Dongfeng engine |
|
Power |
180 Hp (132 KW) |
|
Displacement |
4156 ml |
|
Emission Standard |
Euro IV |
|
Chassis |
Drive Type |
4X2, left or right hand drive |
|
Transmission |
6-speed front, 1 reverse |
|
Wheelbase/No. of axle |
3800 mm / 2 |
|
Tyre Specification |
245/70R19 |
|
Tyre Number |
6 tyres and 1 spare tyre |
|
Max Speed |
110 km/h |
|
Paint |
Metallic paint |
|
Superstructure |
Tank Capacity |
7 Ton |
|
Tank Material |
Carbon steel / Stainless steel |
|
Asphalt Pump |
Excellent Chinese brand |
|
HydraulicPump |
Imported Brand |
|
Controlled system |
Computer-controlled |
|
Burner |
Imported Brand |
|
Spray Width |
4.5m |
|
All other standard accessories: Tool kit, English manual……. |
|
Optional |
**Auxiliary Engine/ Asphalt Pump/ Hydraulic Pump/ Burner could be nominated brand. |

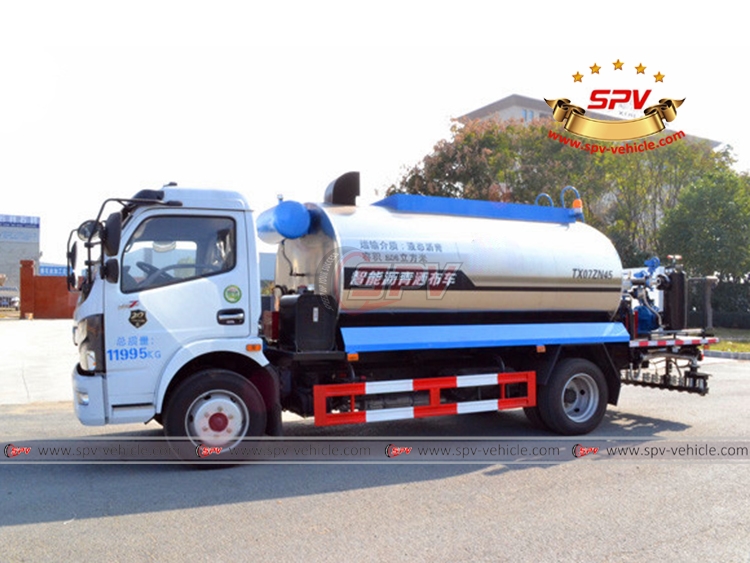

Asphalt Distributor Truck Dongfeng 7 Ton - Left Front Side View
Asphalt Sprayer Truck Dongfeng 7 Ton - Right Front Side View
