ShangHai SPV Special Vehicle Co., Ltd.
Wrecker truck with crane (also called road wrecker truck, flatbed towing truck, breakdown truck, recovery truck, breakdown lorry, wrecker, police rescue truck, flatbed tow truck, boom truck, wheel-lift wrecker ) is used to transport motor vehicles or the vehicles that are broken down.
Based on the type or size of vehicle to be towed, wreckers are usually designed into two types. One is slidebed tow truck with wheel-lift function; another one is wheel-lift units that offer a combination boom with sling.
---- SINOTRUK HOWO chassis, perfect performance.
---- Chinese famous engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Nice shape, rational structure
---- High quality hydraulic system
---- Massive, durable, perfect performance
---- Prolonged service life

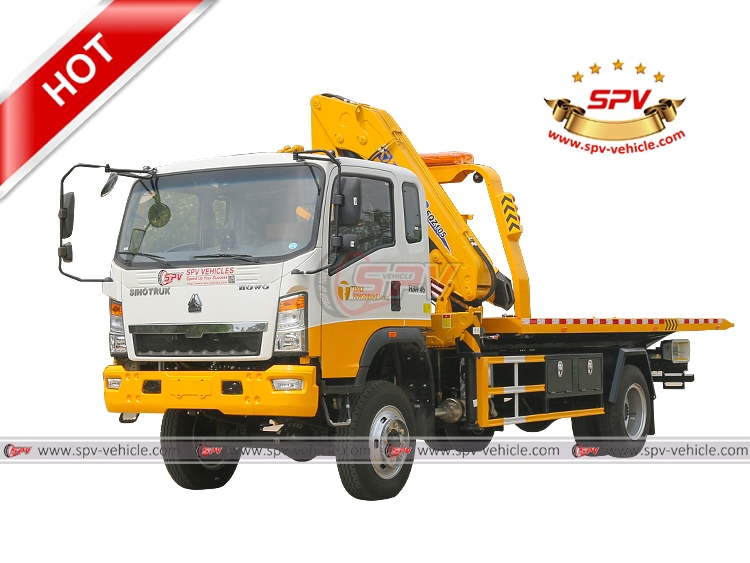

| Off-road Wrecker Truck with Crane SINOTRUK ( 5 Ton ) | ||
| General | Vehicle Brand | SPV |
| Chassis Brand | SINOTRUK | |
| Overall Dimension | 8860 * 2430 * 3490 mm | |
| GVW / Kerb Weight | 13,200 kg / 9,800 kg | |
| Cab | Cab Capacity | 2 persons seats |
| Air Conditioner | W/ air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | Yuchai engine | |
| Power | 160 Ps / 118 KW | |
| Displacement | 4257 ml | |
| Emission Standard | Euro II | |
| Chassis | Drive Type | 4X2, left hand drive or right hand drive |
| Transmission | Manual, 6 speed forward, 1 reverse | |
| No. of axle | 2 | |
| Tyre Specification | 8.25R20, Radial tyres, super wearable | |
| Tyre Number | 6 tyres and 1 spare tyre | |
| Max Speed | 95 km/h | |
| Paint | Metallic paint | |
| Superstructure | Towing Type | Slidebed with wheel-lift |
| Flatbed Payload Capacity | 5 Ton | |
| Flatbed Length * Width | 5600 * 2300 mm | |
| Towing capacity | 3 Ton | |
| Crane Capacity | 5 Tons | |
| All other standard accessories: Binding belt, auxiliary sliding board, spinning cylinder, L-type fork, tyre cover…… | ||
| Optional |
** LED alarm lamp is optional. ** Crane could be installed on flatbed wrecker. |
|
