ShangHai SPV Special Vehicle Co., Ltd.
Road wrecker (also called tow truck, breakdown truck, recovery truck, breakdown lorry, wrecker, police rescue truck, flatbed tow truck, boom truck, wheel-lift wrecker ) is used to transport motor vehicles or the vehicles that are broken down.
Based on the type or size of vehicle to be towed, wreckers are usually designed into two types. One is slidebed tow truck with wheel-lift function; another one is wheel-lift units that offer a combination boom with sling.
---- Sinotruk chassis, perfect performance.
---- Sinotruk engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Nice shape, rational structure
---- High quality hydraulic system
---- Massive, durable, perfect performance
---- Prolonged service life
Similar Key Words: ISUZU road wrecker, tow truck, police rescue truck, breakdown truck, recovery truck, breakdown lorry, flatbed tow truck, boom truck, wheel-lift wrecker, heavy recovery vehicle
| Heavy Duty Road Wrecker Sinotruk ( Towing and Lifting type ) | ||
| General | Vehicle Brand | SPV |
| Chassis Brand | Sinotruk | |
| Overall Dimension | 11000 * 2500 * 3500 mm | |
| GVW / Kerb Weight | 31,000 kg / 24,500 kg | |
| Cab | Cab Capacity | 2 persons allowed |
| Air Conditioner | W/ air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | Sinotruk engine | |
| Power | 371 Hp (373 KW) | |
| Displacement | 9726 ml | |
| Emission Standard | Euro II | |
| Chassis | Drive Type | 8X4, left hand or right hand drive |
| Transmission | 10 speed forward, 1 reverse | |
| Wheelbase/No. of axle | 1800+4600+1350 mm / 4 | |
| Tyre Specification | 12.00-20 | |
| Tyre Number | 12 tyres and 1 spare tyre | |
| Max Speed | 90 km/h | |
| Paint | Metallic paint | |
| Superstructure | Towing Type | Wheel-lift conbined with towing boom |
| Wheel-lift Capacity | 38 Ton | |
| Towing Winch Capacity | 25 Ton | |
| Steel Rope Length | 55 M | |
| Outriggers | 4 | |
| "L" Bracket | 1 set (let and right) | |
| All other standard accessories: tool box, binding belt, auxiliary sliding board, tool kit, English operation manual…… | ||
| Optional | ** LED alarm lamp is optional. | |

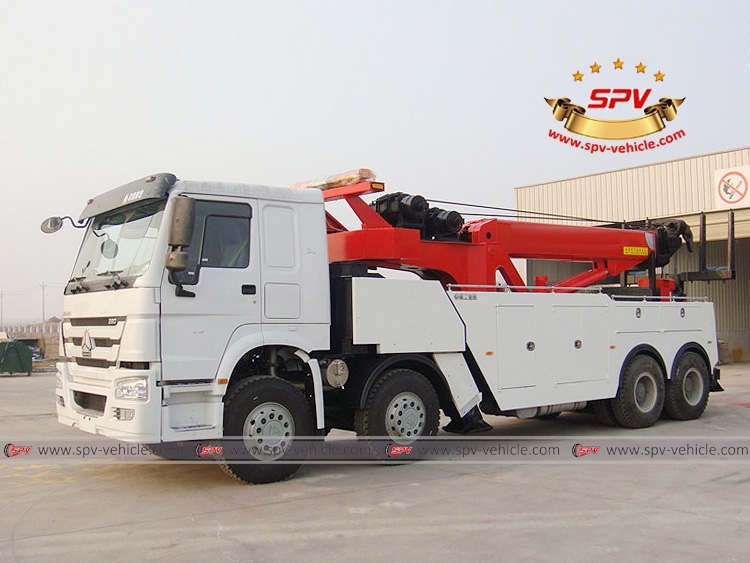

Photo 1: Left front view of Heavy Duty Road Wrecker Sinotruk
Photo 2: Right front view of Heavy Duty Road Wrecker Sinotruk
Photo 3: Detailed operation picture of Heavy Duty Road Wrecker Sinotruk
