12,000 Litres Sinotruk Water Foam Boom, Fire Truck, Fire Engine, Fire Apparatus from China | SPV
Home > Civic Utility Truck > Fire Fighting Truck
Water Foam Boom Sinotruk
10 m³ Water Tank and 2m³ Foam Tank
Water Foam Boom Sinotruk
Function:

Water foam boom (also called fire truck, fire engine, foam fire tanker, fire and rescue truck, fire fighting vehicle, fire appliance, foam discharging vehicle, foam fire truck) is a vehicle designed primarily for fire fighting operations - to extinguish fire efficiently to prevent fire spread, reducing the loss caused by fire maximumly.

Fire fighting truck can be divided into many types:

1. According to vehicle size, there are mini fire fighting truck, light fire fighting truck, medium fire fighting truck, heavy-duty fire fighting truck.
2. According to chassis drive type, there are 4X2 fire fighting truck, 6X4 fire fighting truck, 8X4 fire fighting truck, and off-road type 4X4, 6X6 fire fighting truck.
3. According to chassis brand, there are ISUZU fire fighting truck, Dongfeng fire fighting truck,  Foton fire fighting truck, FAW fight fighting truck, Shacman fire fighting truck, sinotruk fire fighting truck, Mercedes fire fighting truck, etc.
4. According to fire agent,  there are water tank fire fighting truck, dry powder fire fighting truck, water/foam fire fighting truck.

Features:

---- Sniotruk chassis, perfect performance.
---- Sinotruk engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Nice shape, rational structure.
---- High quality fire pump.
---- Massive, durable, long service life.
---- 12,000 Litres fire truck carries 10,000 litres water tank and 2,000 litres foam tank

Specification:

Water Foam Boom Sinotruk (12,000 Litres)
General Vehicle Brand SPV
Chassis Brand Sinotruk (HOWO)
Overall Dimension 10200 * 2500 * 3800 mm
GVW / Kerb Weight 30,500 kg / 18,200 kg
Cab Cab Capacity 2+4 persons allowed
Air Conditioner W/ Air conditioner
Engine Fuel Type Diesel
Engine Brand Sinotruk
Power 336 Ps (247 KW)
Displacement 9726 ml
Emission Standard Euro III
Chassis Drive Type 6X4, left hand or right drive
Transmission 10-speed front, 1 reverse
Wheelbase/No. of axle 4300+1400 mm / 3
Tyre Specification 11.00-20
Tyre Number 10 tyres and 1 spare tyre
Max Speed 85 km/h
Paint Metallic paint
Superstructure Water Capacity 10,000 Litres (About 2,600 gallons)
Foam Capacity 2,000 Litres (About 500 gallons)
Tank Material Carbon steel
Fire Pump Flow speed 60L/s
Pressure 1.0MPa
Fire Cannon Flow speed Water 48 L/s
Foam 48 L/s
Shot Water 60 m
Foam 55 m
Max Working Height 25 m
Suction Head 6 m
Hose High quality, wire strengthened hose, with cooper wire, anti-static
All standard accessories: Typical modern fire apparatus carries equipment for a wide range of firefighting and rescue tasks. These include  shovel, pike poles, axes and cutting equipment, halligan bars.…
Optional Ladders, floodlights...


Similar Key Words: fire truck, fire engine, foam fire tanker, fire and rescue truck, fire fighting vehicle, fire appliance, foam discharging vehicle, foam fire truck, fire-extinguishing foam tanker

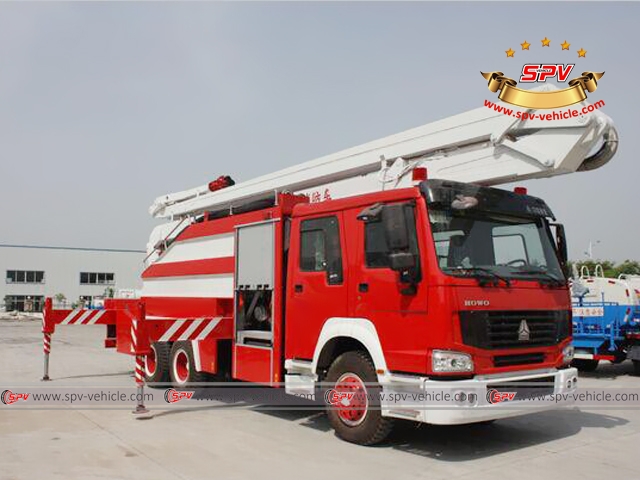

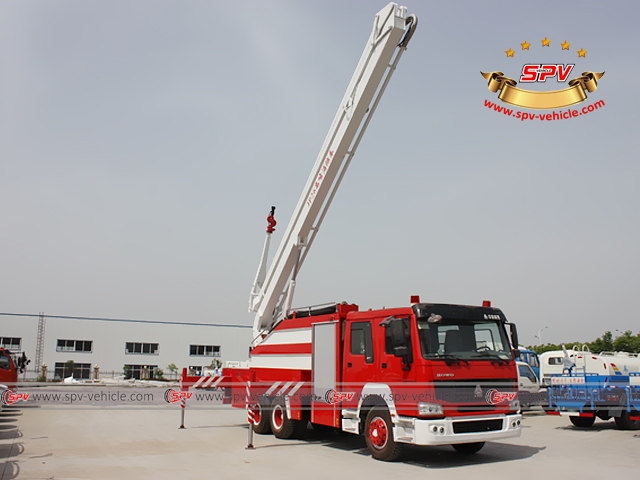

Right Front View of Water Foam Boom Fire Truck - Sinotruk

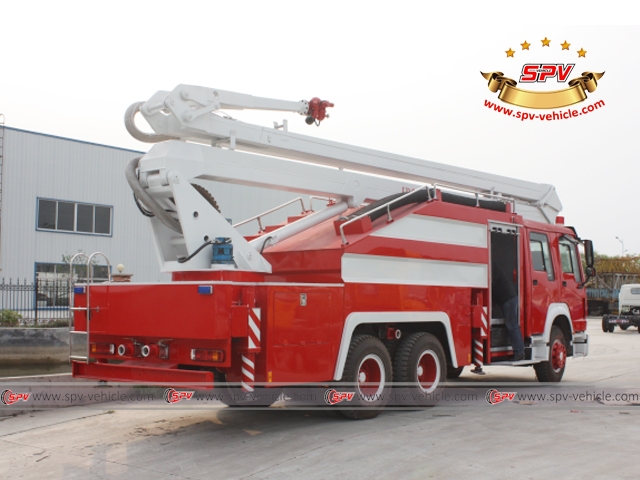

Right Back View of Water Foam Boom Fire Truck - Sinotruk

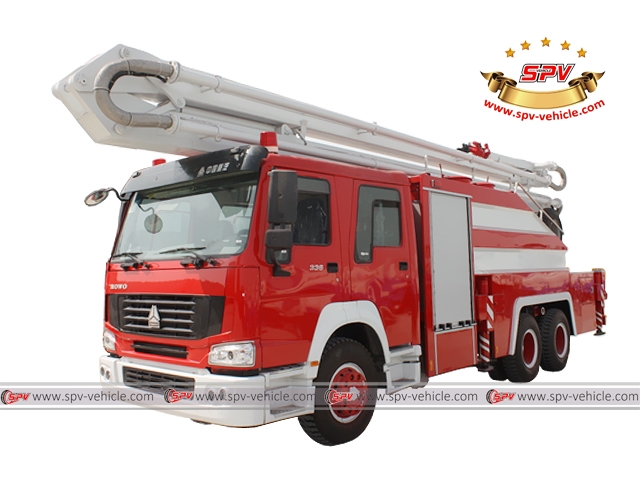

Front Side View of Water Foam Boom Fire Truck - Sinotruk

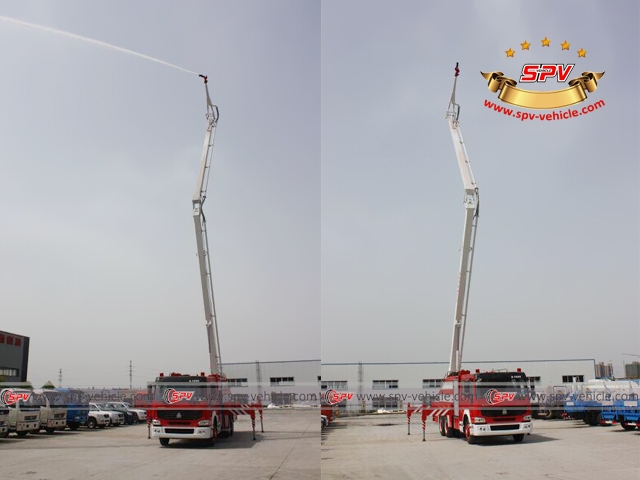

Operation View of Water Foam Boom Fire Truck - Sinotruk
