12,000 Litres IVECO Fire and Rescue Truck, Fire Truck, Water Foam Boom Fire Truck from China | SPV
Home > Civic Utility Truck > Fire Fighting Truck
Fire and Rescue Truck IVECO
10 m³ Water Tank and 2m³ Foam Tank
Fire and Rescue Truck IVECO
Function:

Fire and rescue truck (also called fire truck, water foam boom fire truck, fire engine, foam fire tanker, fire fighting service truck, fire fighting equipment, multifunction fire vehicle, fire fighting apparatus) is a vehicle designed primarily for fire fighting operations - to extinguish fire efficiently to prevent fire spread, reducing the loss caused by fire maximumly.

Fire fighting truck can be divided into many types:

1. According to vehicle size, there are mini fire fighting truck, light fire fighting truck, medium fire fighting truck, heavy-duty fire fighting truck.
2. According to chassis drive type, there are 4X2 fire fighting truck, 6X4 fire fighting truck, 8X4 fire fighting truck, and off-road type 4X4, 6X6 fire fighting truck.
3. According to chassis brand, there are ISUZU fire fighting truck, Dongfeng fire fighting truck,  Foton fire fighting truck, FAW fight fighting truck, Shacman fire fighting truck, sinotruk fire fighting truck, Mercedes fire fighting truck, etc.
4. According to fire agent,  there are water tank fire fighting truck, dry powder fire fighting truck, water/foam fire fighting truck.

Features:

---- IVECO chassis, perfect performance.
---- IVECO Cursor engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Nice shape, rational structure.
---- High quality fire pump.
---- Massive, durable, long service life.
---- 12,000 Litres fire truck carries 10,000 litres water tank and 2,000 litres foam tank

Specification:

Fire and Rescue Truck IVECO (12,000 Litres)
General Vehicle Brand SPV
Chassis Brand IVECO China
Overall Dimension 10600 * 2500 * 3950 mm
GVW / Kerb Weight 27,000 kg / 14,650 kg
Cab Cab Capacity 2 persons allowed
Air Conditioner W/ Air conditioner
Engine Fuel Type Diesel
Engine Brand IVECO Cursor engine
Power 380 Ps (249 KW)
Displacement 8709 ml
Emission Standard Euro III
Chassis Drive Type 6X4, left hand or right drive
Transmission 12-speed forward, 2 reverse
Wheelbase/No. of axle 4400+1350 mm / 3
Tyre Specification 12.00R20
Tyre Number 10 tyres and 1 spare tyre
Max Speed 90 km/h
Paint Metallic paint
Superstructure Water Capacity 10,000 Litres (About 2,600 gallons)
Foam Capacity 2,000 Litres (About 500 gallons)
Tank Material Carbon steel
Fire Pump Flow speed 60L/s
Pressure 1.0MPa
Fire Cannon Flow speed Water 48 L/s
Foam 48 L/s
Shot Water 60 m
Foam 55 m
Max Working Height 25 m
Suction Head 6 m
Hose High quality, wire strengthened hose, with cooper wire, anti-static
A series of fire implement tools: suction hose, intake screen, water segregator,
siamese (water combiner), fire hose, hose bandage, etc........
Details as per below accessory list.
Optional Aluminium Alloy Extendable Ladder 9M - 12M, Storz Coupling, British Coupling,
etc......

Fire and Rescue Truck IVECO - F
Front view of fire and rescue truck IVECO

Fire and Rescue Truck IVECO - LF
Left front view of fire and rescue truck IVECO

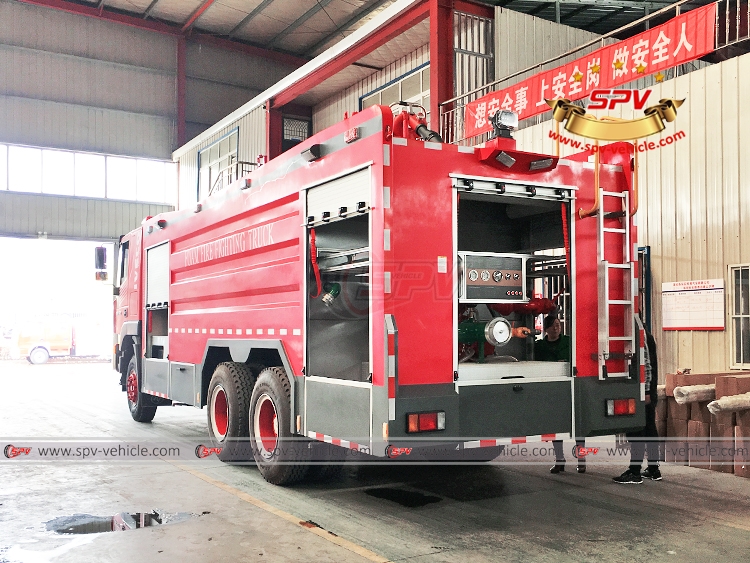

Fire and Rescue Truck IVECO - LB
Left back view of fire and rescue truck IVECO

Fire and Rescue Truck IVECO - B
Back view of fire and rescue truck IVECO

Fire and Rescue Truck IVECO - RF
Right front view of fire and rescue truck IVECO
