Off-road fire fighting truck (also called fire engine, fire fighting truck, water foam tanker, foam fire truck, fire-extinguisher foam tanker, fire appliance, fire service truck, fire fighting foam truck) is a vehicle designed primarily for fire fighting operations - to extinguish fire efficiently to prevent fire spread, reducing the loss caused by fire maximumly.
Fire fighting truck can be divided into many types:
1. According to vehicle size, there are mini fire fighting truck, light fire fighting truck, medium fire fighting truck, heavy-duty fire fighting truck.
2. According to chassis drive type, there are 4X2 fire fighting truck, 6X4 fire fighting truck, 8X4 fire fighting truck, and off-road type 4X4, 6X6 fire fighting truck.
3. According to chassis brand, there are ISUZU fire fighting truck, Dongfeng fire fighting truck, Foton fire fighting truck, FAW fight fighting truck, Shacman fire fighting truck, sinotruk fire fighting truck, Mercedes fire fighting truck, etc.
4. According to fire agent, there are water tank fire fighting truck, dry powder fire fighting truck, water/foam fire fighting truck.
---- Sniotruk chassis, perfect performance.
---- Sinotruk engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Nice shape, rational structure.
---- High quality fire pump.
---- Massive, durable, long service life.
---- 5,000 Litres fire truck carries 4,000 litres water tank and 1,000 litres foam tank

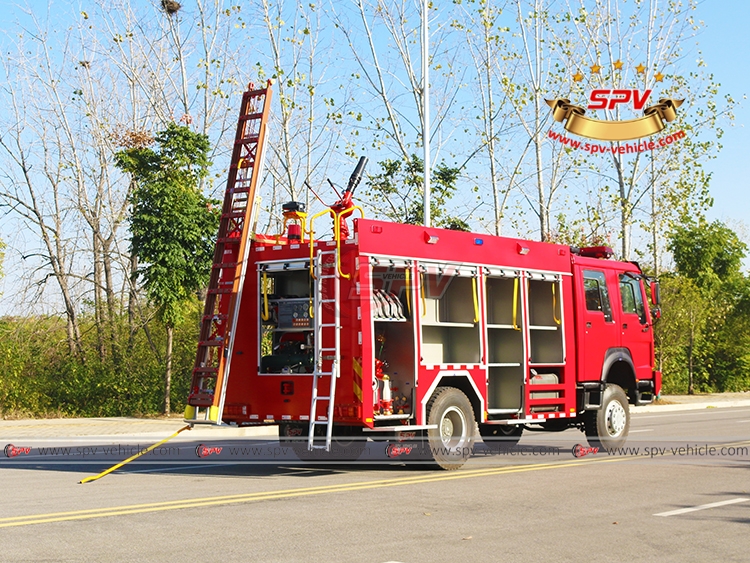

Off-road Fire Truck Sinotruk (5,000 Litres) | ||||
General | Vehicle Brand | SPV | ||
Chassis Brand | Sinotruk | |||
Overall Dimension | 8570 * 2540 * 3370 mm | |||
GVW / Kerb Weight | 18,000kg / 11,860kg | |||
Cab | Cab Capacity | 2+4 persons allowed | ||
Air Conditioner | Air conditioner is optional | |||
Engine | Fuel Type | Diesel | ||
Engine Brand | Sinotruk | |||
Power | 289 Ps (213 KW) | |||
Displacement | 9726 ml | |||
Emission Standard | Euro II | |||
Chassis | Drive Type | 4X4, left hand or right drive | ||
Transmission | 10-speed forward, 1 reverse | |||
Wheelbase/No. of axle | 4500 mm / 2 | |||
Tyre Specification | 10.00-20 | |||
Tyre Number | 6 tyres and 1 spare tyre | |||
Max Speed | 90 km/h | |||
Paint | Metallic paint | |||
Superstructure | Water Capacity | 4,000 Litres (About 1,100 gallons) | ||
Foam Capacity | 1,000 Litres (About 270 gallons) | |||
Tank Material | Stainless Steel | |||
Fire Pump | Flow speed | 60L/s | ||
Pressure | 1.0MPa | |||
Fire Cannon | Flow speed | Water | 48 L/s | |
Foam | 48 L/s | |||
Shot | Water | 60 m | ||
Foam | 48 m | |||
Suction Head | 6 m | |||
Hose | High quality, wire strengthened hose, with cooper wire, anti-static | |||
A series of fire implement tools: suction hose, intake screen, water segregator, siamese (water combiner), fire hose, hose bandage, etc........ Details as per below accessory list. |
||||
Optional |
Aluminium Alloy Extendable Ladder 9M - 12M, Storz Coupling, British Coupling,
etc......
|
