Fire Truck Dongfeng
5 m³ Water Tank and 2m³ Foam Tank
Fire Truck Dongfeng
Function:

Fire truck (also called fire appliance, fire engine, foam fire tanker, fire tank truck, fire fighting foam tanker, fire hydrant and fire water tanker, fire rescue truck, fire fighting vehicle) is a vehicle designed primarily for fire fighting operations - to extinguish fire efficiently to prevent fire spread, reducing the loss caused by fire maximumly.

Fire fighting truck can be divided into many types:

1. According to vehicle size, there are mini fire fighting truck, light fire fighting truck, medium fire fighting truck, heavy-duty fire fighting truck.
2. According to chassis drive type, there are 4X2 fire fighting truck, 6X4 fire fighting truck, 8X4 fire fighting truck, and off-road type 4X4, 6X6 fire fighting truck.
3. According to chassis brand, there are ISUZU fire fighting truck, Dongfeng fire fighting truck,  Foton fire fighting truck, FAW fight fighting truck, Shacman fire fighting truck, sinotruk fire fighting truck, Mercedes fire fighting truck, etc.
4. According to fire agent,  there are water tank fire fighting truck, dry powder fire fighting truck, water/foam fire fighting truck.

Features:

---- Dongfeng chassis, perfect performance.
---- Cummins engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Nice shape, rational structure.
---- High quality fire pump.
---- Massive, durable, long service life.
---- 7,000 Litres fire truck carries 5,000 litres water tank and 2,000 litres foam tank

Specification:

Fire Truck Dongfeng (7,000 Litres)
General Vehicle Brand SPV
Chassis Brand Dongfeng
Overall Dimension 8250 * 2500 * 3310 mm
GVW / Kerb Weight 15,550kg / 8,100kg
Cab Cab Capacity 2+4 persons allowed
Air Conditioner W/ air conditioner
Engine Fuel Type Diesel
Engine Brand Cummins
Power 210Ps (155KW)
Displacement 5900 ml
Emission Standard Euro III
Chassis Drive Type 4X2, left hand or right drive
Transmission 8-speed front, 1 reverse
Wheelbase/No. of axle 4700 mm / 2
Tyre Specification 10.00-20
Tyre Number 6 tyres and 1 spare tyre
Max Speed 90 km/h
Paint Metallic paint
Superstructure Water Capacity 5,000 Litres (About 1,300 gallons)
Foam Capacity 2,000 Litres (About 500 gallons)
Tank Material Carbon steel
Fire Pump 40 L/s
Flow Speed 32 L/s
Shot water ≥ 50 m / foam ≥ 45 m
Suction Head 6 m
Hose High quality, wire strengthened hose, with cooper wire, anti-static
All standard accessories: Typical modern fire apparatus carries equipment for a wide range of firefighting and rescue tasks. These include ladders, pike poles, axes and cutting equipment, halligan bars, ventilating equipment, floodlights, hose ramps, self-contained breathing apparatus and general tools.…
Optional Ladders, floodlights…

Front view of Foam and Water Fire Truck - Dongfeng
7,000 Liters Foam Fire Truck DONGFENG - Front Side View

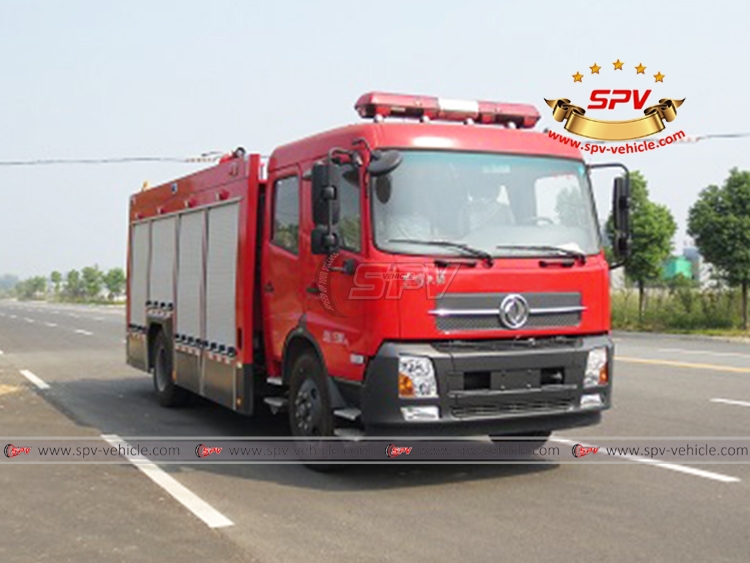

7,000 Liters Fire Truck DONGFENG - Right Front Side
7,000 Liters Fire Truck DONGFENG - Right Front Side View

Left back view of Foam and Water Fire Truck - Dongfeng
7,000 Liters Fire Fighting Truck DONGFENG - Left Back Side View

Side view of Foam and Water Fire Truck - Dongfeng
7,000 Liters Water and Foam Fire Truck DONGFENG - Left Side View

7,000 Liters Water Fire Rescue Truck DONGFENG - Rear Side View
7,000 Liters Water Fire Rescue Truck DONGFENG - Rear Side View

Foam Fire Truck DONGFENG - Left Front Side View
Foam Fire Truck DONGFENG - Left Front Side View

Water Fire Truck DONGFENG - Left Side View
Water Fire Truck DONGFENG - Left Side View

Fire Fighting Truck DONGFENG - Left Side View
Fire Fighting Truck DONGFENG - Left Side View

Foam Fire Engine Truck DONGFENG - Rear Side View
Foam Fire Engine Truck DONGFENG - Rear Side View
