Fire Fighting Truck Sinotruk (RHD)
5 m³ Water Tank and 1m³ Foam Tank
Fire Fighting Truck Sinotruk (RHD)
Function:

Fire fighting truck (also called fire fighting vehicle, fire engine, fire fighting apparatus, fire service truck, fire and rescue truck, foam fire tank truck, fire-extinguishing foam tanker) is a vehicle designed primarily for fire fighting operations - to extinguish fire efficiently to prevent fire spread, reducing the loss caused by fire maximumly.

Fire fighting truck can be divided into many types:

1. According to vehicle size, there are mini fire fighting truck, light fire fighting truck, medium fire fighting truck, heavy-duty fire fighting truck.
2. According to chassis drive type, there are 4X2 fire fighting truck, 6X4 fire fighting truck, 8X4 fire fighting truck, and off-road type 4X4, 6X6 fire fighting truck.
3. According to chassis brand, there are ISUZU fire fighting truck, Dongfeng fire fighting truck,  Foton fire fighting truck, FAW fight fighting truck, Shacman fire fighting truck, sinotruk fire fighting truck, Mercedes fire fighting truck, etc.
4. According to fire agent,  there are water tank fire fighting truck, dry powder fire fighting truck, water/foam fire fighting truck.

Features:

---- Dongfeng chassis, perfect performance.
---- Cummins engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Nice shape, rational structure.
---- High quality fire pump.
---- Massive, durable, long service life.
---- 6,500 Litres fire truck carries 5,000 litres water tank and 1,500 litres foam tank

Specification:

Right Hand Drive Fire Fighting Truck Sinotruk (6,000 Litres)
General Vehicle Brand SPV
Chassis Brand Sinotruk
Overall Dimension 8160 * 2550 * 3400 mm
GVW / Kerb Weight 16,000kg / 10,490kg
Cab Cab Capacity 2+4 persons allowed
Air Conditioner Air conditioner is optional
Engine Fuel Type Diesel
Engine Brand WeiChai
Power 299 Ps (220 KW)
Displacement 9726 ml
Emission Standard Euro II
Chassis Drive Type 4X2, right hand drive
Transmission 6-speed front, 1 reverse
Wheelbase/No. of axle  2
Tyre Specification 10.00R20
Tyre Number 6 tyres and 1 spare tyre
Max Speed 85 km/h
Paint Metallic paint
Superstructure Water Tank Material Stainless Steel
Water Capacity 5,000 Litres (About 1,300 gallons)
Foam Tank Material Stainless Steel
Foam Capacity 1,000 Litres (About 260 gallons)
Tank Material Carbon steel
Fire Pump Flow speed 60L/s
Pressure 1.0 MPa
Fire Cannon Flow speed Water 50 L/s
Foam 50 L/s
Shot Water 65 m
Foam 55 m
Suction Head 6 m
Hose High quality, wire strengthened hose, with cooper wire, anti-static
A series of fire implement tools: suction hose, intake screen, water segregator,
siamese (water combiner), fire hose, hose bandage, etc........
Details as per below accessory list.
Optional Aluminium Alloy Extendable Ladder 9M - 12M, Storz Coupling, British Coupling,
etc......


5,000L Water Tank and 1,000L Foam Tank Fire Fighting Truck - Front Side View
5,000L Water Tank and 1,000L Foam Tank Fire Fighting Truck - Front Side View

6 CBM Sinotruk Fire Fighting Truck - Left Front Side View
6 CBM Sinotruk Fire Fighting Truck - Left Front Side View

5,000L Water Tank and 1,000L Foam Tank Fire Resuce Truck - Left Side View
5,000L Water Tank and 1,000L Foam Tank Fire Resuce Truck - Left Side View

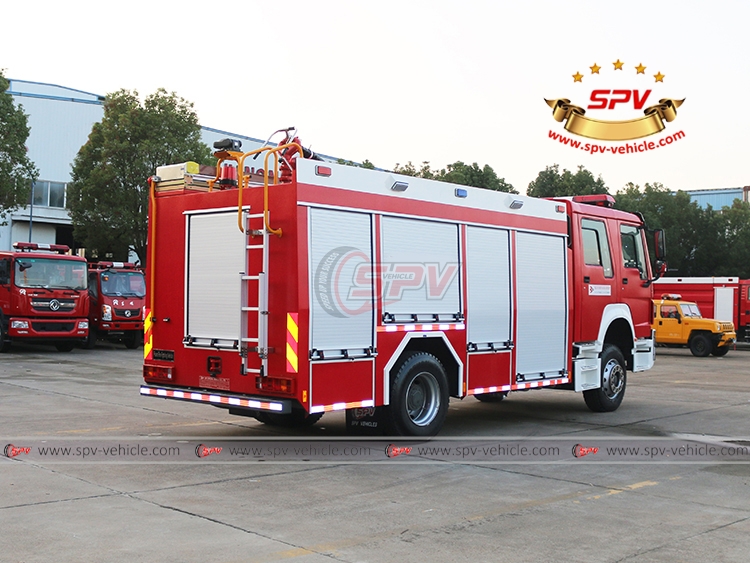

SINOTRUK Foam Tank Fire Resuce Truck - Left Back Side View

 SINOTRUK Foam Tank Fire Resuce Truck - Left Back Side View

6 CBM Water Tank Fire Truck - Right Front Side View
6 CBM Water Tank Fire Truck - Right Front Side View

Sinotruk 6 CBM Fire Service Truck - Right Side View

Sinotruk 6 CBM Fire Service Truck - Right Side View

Sinotruk Fire Engine Truck (RHD) - Right Back Side View

Sinotruk Fire Engine Truck (RHD) - Right Back Side View

Sinotruk 6 CBM Fire Fighting Equipment - Rear Side View
Sinotruk 6 CBM Fire Fighting Equipment - Rear Side View



Fire Truck Working Test - Spray Water and Foam
