6,000 Litres Road Washer Truck, Road Jetting Vehicle, Street Washing Vehicle, High Pressure Washing Truck, Jet Cleaning Truck from China | SPV
Home > Sanitary Truck > Road Jetting Truck

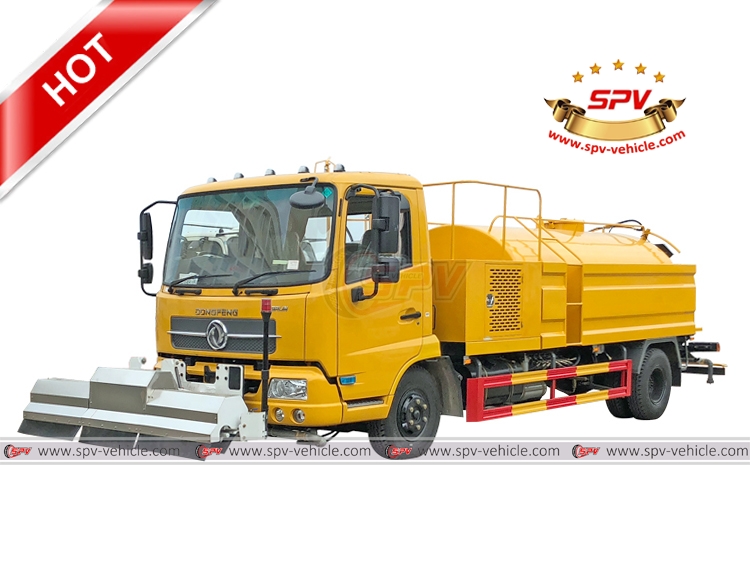

Road Washer Truck Dongfeng
6,000 Litres Road Jetting Vehicle
Road Washer Truck Dongfeng
Function:

Road washer truck (also called street washing vehicle, high pressure washing truck, jet cleaning truck, street cleaning vehicle, road cleaning truck, high pressure jetting vehicle) is designed for high pressure washing and sanitation of roads. It’s able to remove the stubborn stuff and reduce dust on the road.

The basic accessories for a road jetting truck are: front stainless steel high pressure washing beam, rear sprinkling nuzzles bar, sprayer, etc.

Features:

---- Dongfeng Kingrun chassis - one of the best and oldest chassis brand in China.
---- Cummins engine (American brand), super powerful; reliable performance.
---- Nice shape, compact structure
---- Italy imported high pressure pump, super powerful, efficient jetting
---- Massive, durable, perfect performance
---- Prolonged service life

Specification:

Road Washer Truck Dongfeng (6,000 Litres)
General Vehicle Brand SPV
Chassis Brand FOTON
Overall Dimension 8970 * 2550 * 2600 mm
GVW / Kerb Weight 9,600 kg / 5,850 kg
Cab Cab Capacity 2 persons allowed
Air Conditioner W/ air conditioner
Engine Fuel Type Diesel
Engine Brand Cummins engine
Power 140 Ps (102 KW)
Displacement 3760 ml
Emission Standard Euro III
Chassis Drive Type 4X2,right hand drive
Transmission 6-speed forward, 1 reverse
Wheelbase/No. of axle 4500 mm / 2
Tyre Specification 8.25R16
Tyre Number 6 tyres and 1 spare tyre
Max Speed 90 km/h
Paint Metallic paint
Superstructure Water Tank 6,000 Litres (About 1,500 gallons)
High Pressure Pump Imported Germany high pressure plunge pump
Max. Water Pressure 10 MPa
Water Flow Speed 40 L/min @ 10MPa
Cleaning Speed 5-10 km/h
Road Flushing Width 1.5 m
Deflection Angle 30°(left and right)
Auxiliary Engine Jiangxi engine (ISUZU technology)
77 Hp / 57 KW
Sprinkling Another water pump equipped for sprinkling on the road. Sprinkling width: 24 M. Cannon shot: 36 M.
All standard accessories: hose, high pressure hose reel, high pressure water gun, ground hydrant wrench, basic tool kit, English manual……
Optional ** Stainless steel water tank.
** Elevating Platform.
** High cannon.

6,000 Litres Road Washer Truck Dongfeng - F
Front View of Road Washer Truck Dongfeng(6,000 litres)

6,000 Litres Road Washer Truck Dongfeng - LF
Left front View of Road Washer Truck Dongfeng(6,000 litres)

6,000 Litres Road Washer Truck Dongfeng - LS
Left Side View of Road Washer Truck Dongfeng(6,000 litres)

6,000 Litres Road Washer Truck Dongfeng - LB
Left back View of Road Washer Truck Dongfeng(6,000 litres)

6,000 Litres Road Washer Truck Dongfeng - RF
Right front View of Road Washer Truck Dongfeng(6,000 litres)

6,000 Litres Road Washer Truck Dongfeng - RS
Right Side View of Road Washer Truck Dongfeng(6,000 litres)

6,000 Litres Road Washer Truck Dongfeng - RB
Right Back View of Road Washer Truck Dongfeng(6,000 litres)

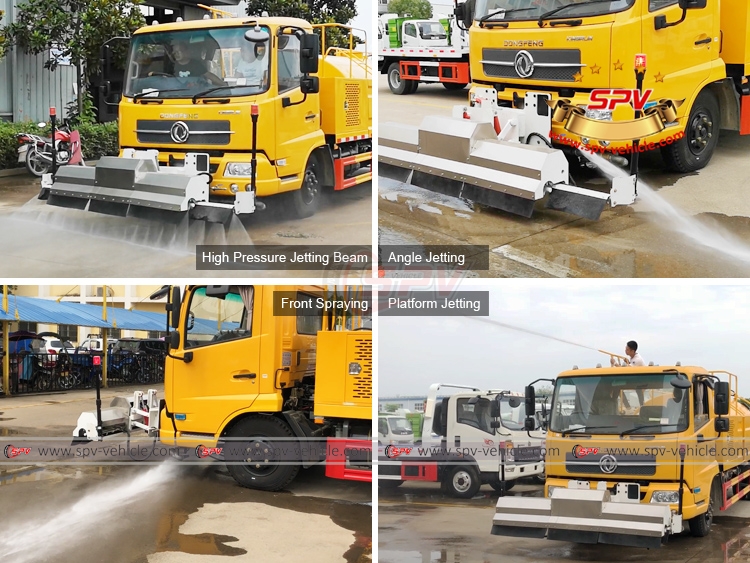

Road Jetting Truck Dongfeng - Function 01

Road Washer Truck Dongfeng(6,000 litres) - Functions 1

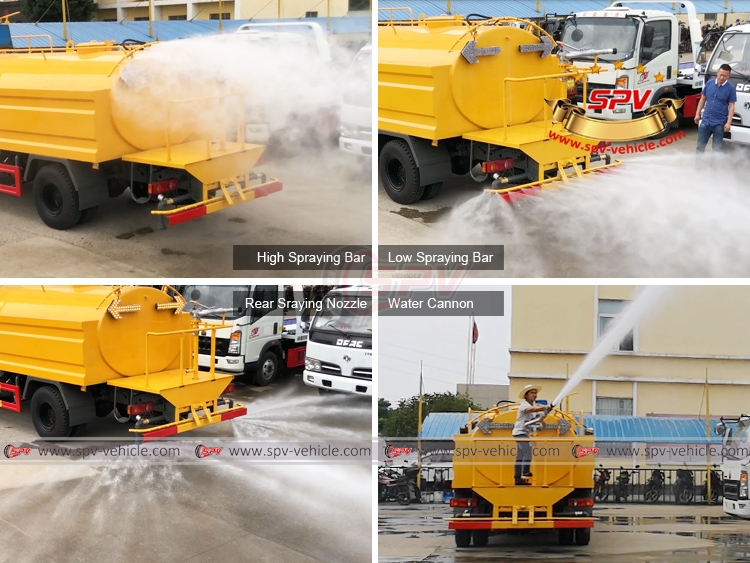

Road Jetting Truck Dongfeng - Function 02
Road Washer Truck Dongfeng(6,000 litres) - Functions 2

Road Jetting Truck Dongfeng - Manual
Road Washer Truck Dongfeng(6,000 litres) - User's Manual & DONGFENG Chassis Manual
DONGFENG Road Sweeper Truck and Road Jetting Truck - Clients Inspection
Road Sweeper Truck Dongfeng(6 CBM water + 2 CBM dustbin) - Brunei Clients Inspection in SPV factory

DONGFENG Road Sweeper Truck and Road Jetting Truck - LF
To Brunei -
Road Sweeper Truck Dongfeng(6 CBM water + 2 CBM dustbin) + Road Jetting Truck Dongfeng(6,000 Litres)

DONGFENG Road Sweeper Truck and Road Jetting Truck - LB
To Brunei - Road Sweeper Truck Dongfeng(6 CBM water + 2 CBM dustbin) + Road Jetting Truck Dongfeng(6,000 Litres)

DONGFENG Road Sweeper Truck and Road Jetting Truck - RF
To Brunei - Road Sweeper Truck Dongfeng(6 CBM water + 2 CBM dustbin) + Road Jetting Truck Dongfeng(6,000 Litres)

DONGFENG Road Sweeper Truck and Road Jetting Truck - RB
To Brunei - Road Sweeper Truck Dongfeng(6 CBM water + 2 CBM dustbin) + Road Jetting Truck Dongfeng(6,000 Litres)

Similar Keywords: street washer vehicle, high pressure washing truck, jet cleaning truck, street cleaning vehicle, road cleaning truck, high pressure jetting vehicle
