12,000 Litres Road Jetting Truck, Road Washing Truck, Jet Cleaning Truck from China | SPV
Home > Sanitary Truck > Road Jetting Truck
Road Jetting Truck ISUZU
12,000 Litres Road Washing Truck
Road Jetting Truck ISUZU
Function:

Road jetting truck (also called street washing vehicle, high pressure washing truck, jet cleaning truck, street cleaning vehicle, road cleaning truck, high pressure jetting vehicle) is designed for high pressure washing and sanitation of roads. It’s able to remove the stubborn stuff and reduce dust on the road.

The basic accessories for a road jetting truck are: front stainless steel high pressure washing beam, rear sprinkling nuzzles bar, sprayer, etc.

Features:

---- World famous ISUZU chassis - one of the best and oldest chassis brand in China.
---- ISUZU engine (American brand), super powerful; reliable performance.
---- Nice shape, compact structure
---- Italy imported high pressure pump, super powerful, efficient jetting
---- Massive, durable, perfect performance
---- Prolonged service life

Specification:

Road Jetting Truck ISUZU (12,000 Litres)
General Vehicle Brand SPV
Chassis Brand ISUZU
Overall Dimension 11500 * 2550 * 3500 mm
GVW / Kerb Weight 25,000 kg / 15,850 kg
Cab Cab Capacity 2 persons seats with 1 sleeper
Air Conditioner Equippped
Engine Fuel Type Diesel
Engine Brand ISUZU engine
Power 350 Ps (257 KW)
Displacement 9839 ml
Emission Standard Euro IV
Chassis Drive Type 6X4, left hand drive
Transmission 9-speed forward, 1 reverse
Wheelbase/No. of axle 4025+1300 mm / 3
Tyre Specification 11.00-20
Tyre Number 10 tyres and 1 spare tyre
Max Speed 90 km/h
Paint Metallic paint
Superstructure Water Tank 12,000 Litres (About 3,200 gallons)
High Pressure Pump Imported Germany high pressure plunge pump
Max. Water Pressure 10 MPa
Water Flow Speed 40 L/min @ 10MPa
Cleaning Speed 5-10 km/h
Road Flushing Width 1.5 m
Deflection Angle 30°(left and right)
Auxiliary Engine CUMMINS engine (American brand)
170 Hp / 125 KW
Sprinkling Another water pump equipped for sprinkling on the road. Sprinkling width: 24 M. Cannon shot: 36 M.
All standard accessories: hose, high pressure hose reel, high pressure water gun, ground hydrant wrench, basic tool kit, English manual……
Optional ** Stainless steel water tank.
** Elevating Platform.
** High cannon.

ISUZU Road Jetting Truck -LF
Left front View of Road Jetting Truck ISUZU (12,000 litres)

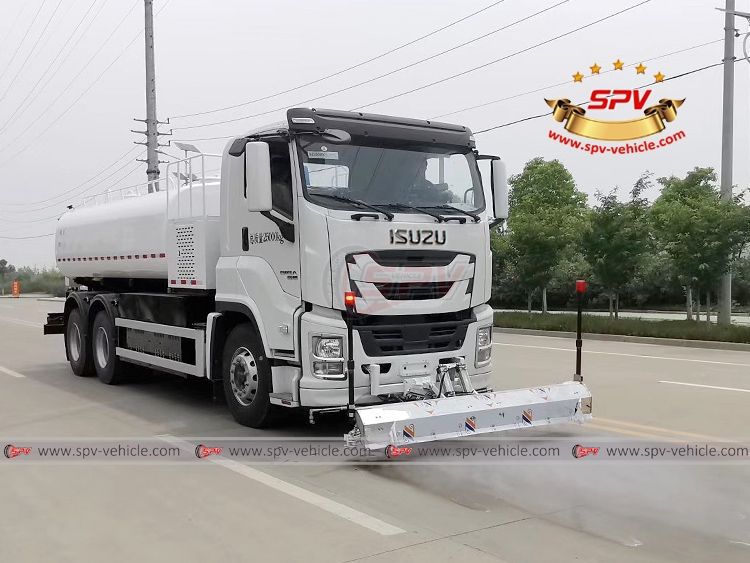

ISUZU Road Jetting Truck -RF
Right front View of Road Jetting Truck ISUZU(12,000 litres)


Similar Keywords: street washer vehicle, high pressure washing truck, jet cleaning truck, street cleaning vehicle, road cleaning truck, high pressure jetting vehicle
